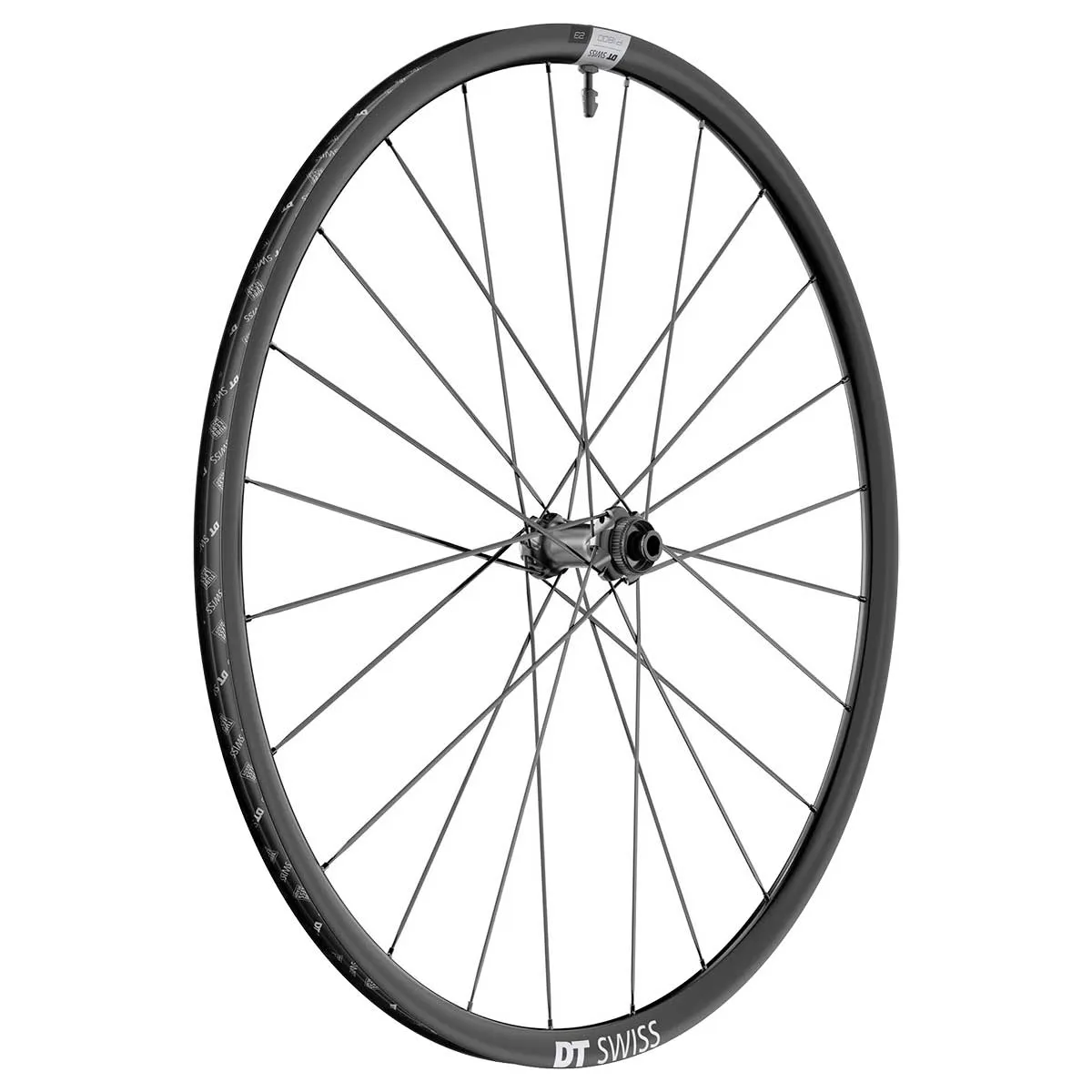

DT Swiss P 1800 Spline 23 DB wheelset

The affordable DT Swiss P 1800 Spline DB road race wheelsets, now available in a new version featuring the Ratchet LN freehub system.

With a 20 mm rim width, ideal for road bike tyres up to 35 mm wide, and weighing just 1590 grams, the DT Swiss P 1800 Spline 23 Disc wheels are the recommended choice for road racing and training. Classic, affordable, good. The wide yet lightweight aluminium rim provides the basis for an excellent STW value (stiffness-to-weight ratio). Equipped with DT Swiss Spline 370 straight-pull hubs, lightweight and sturdy 23 mm high rims with a 24 mm rim width, and Ratacht LN freehub bodies. The wide yet lightweight aluminium rim provides the basis for excellent road bike wheels.

DT Swiss P 1800 Spline 25 28-inch wheel Technology:

• for folding and clincher tyres, Clincher ETRTO: 622 x 20
• Aluminium rims, tubeless ready, with pre-fitted tubeless rim tape
• Rim width 24 mm, height 23 mm, rim depth 20 mm
• DT 370 Spline hub with Swiss steel ball bearings and Ratchet LN 18 freehub
• Spokes: butted, cold-forged New Aero flat spokes
• Nipples: DT Swiss Prolock aluminium special nipples
• Lacing: 2-cross
• Number of spokes: 24/24 per wheel
• DT Swiss 370 Spline front hub, Disc Centerlock, convertible
• Weight from 783 grams, manufacturer’s specification
• Recommended maximum system weight 120 kg
• ASTM classification 2
• Maximum air pressure: 7 bar

Scope of delivery DT Spline P 1800 Spline DB 23 wheel:

DT Swiss P 1800 Spine DB 23 front wheel, DT Swiss end stops as selected, 27 mm tubeless rim tape, 32 mm tubeless valve

DT Swiss 1800 Spline Disc hubs:

Equipped with a Centerlock mount, the DT Swiss 1800 Spine Straightpull Disc hubs from the DT 370 series are compatible with all brake disc types; adapters for 6-hole brake discs are available as an option. The DT Swiss Spline Disc hubs, with their optimised hub shell for straight-pull spokes and the proven Ratchet LN 18 freehub system based on the classic DT Swiss 370 hubs, are exceptionally durable; the rear hubs can be serviced without tools.

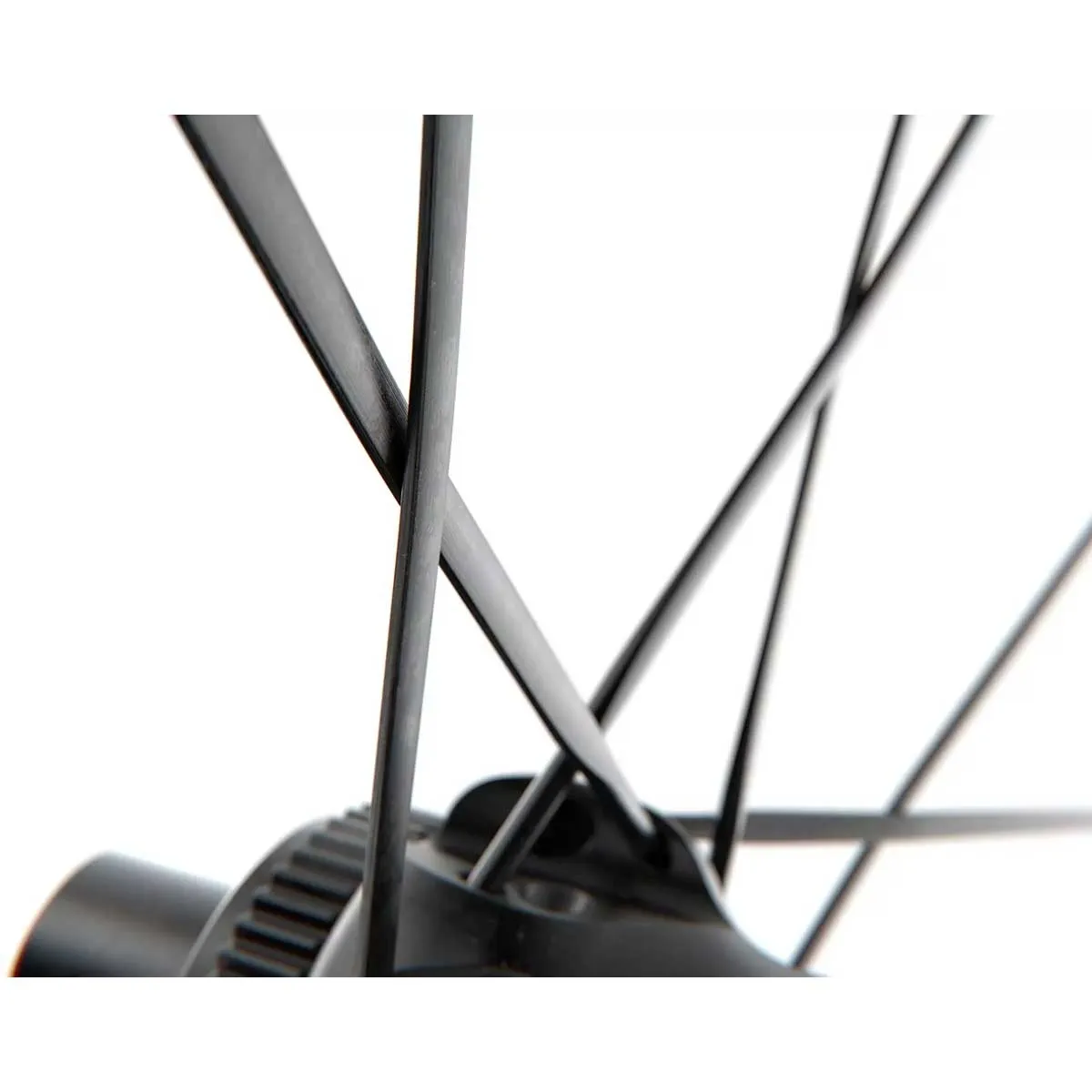

DT Swiss Straight Pull Spokes

To achieve an ideal balance of weight and stability, only the highest-quality Aero Comp Wide straight-pull spokes are used in the Spline wheelsets. They are stiffer than conventional spokes yet can still be trued and replaced using standard tools.

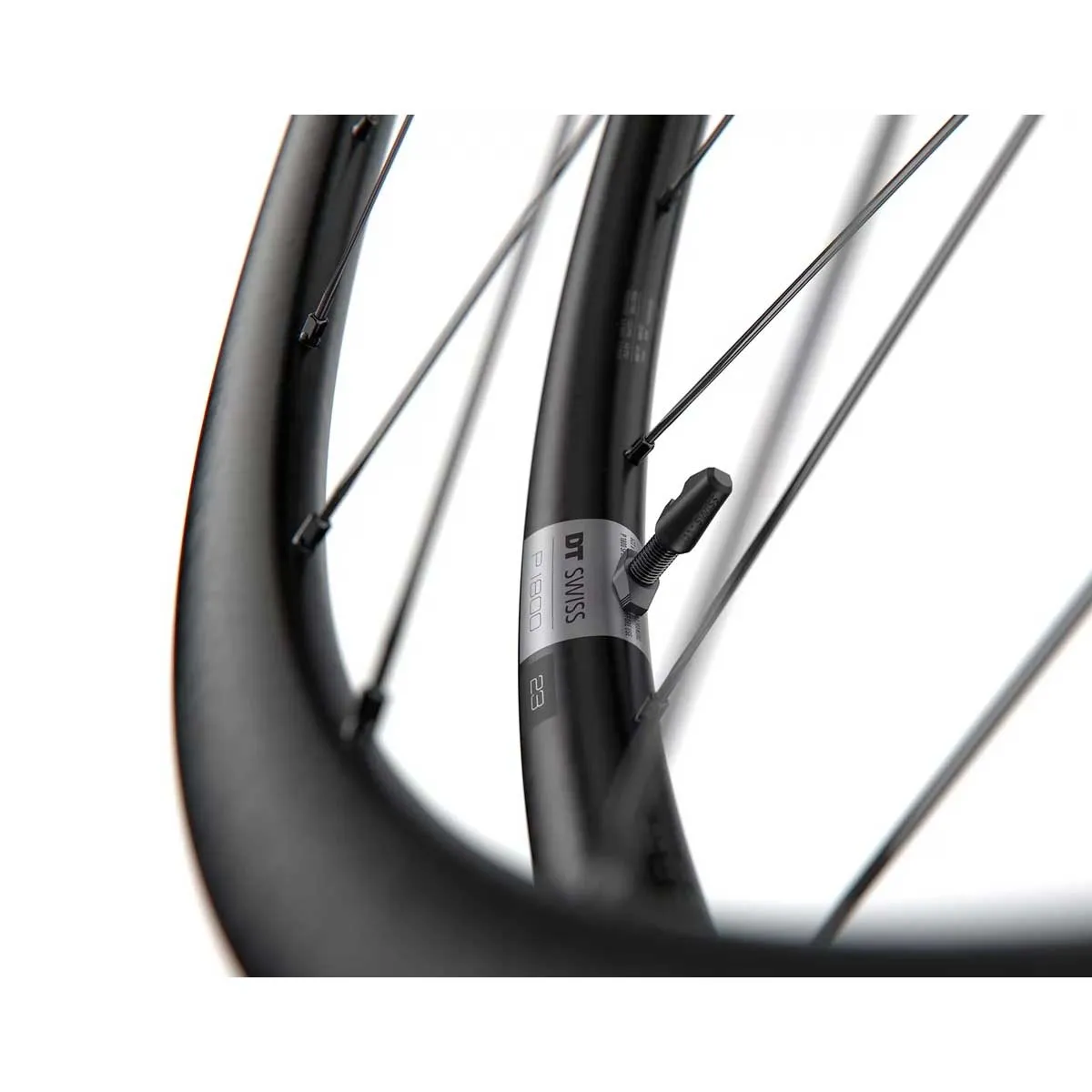

DT Swiss P 1800 Spline 23 Disc rims

Classic hooked/crochet rims with a 20 mm rim depth, 24 mm outer width and 23 mm profile height for folding and clincher tyres from 28–35 mm wide. The new rims are tubeless-ready and come with a 22 mm tubeless rim tape pre-fitted.

DT Swiss Ratchet LN freehub body:

The proven DT Swiss Star Ratchet LN system with the toothed freehub body allows for easy conversion to various axle or rotor standards. The DT Swiss Ratchet LN rear hubs can be easily converted to fit the mounts common to various cassette systems.

Compatible endstops for DT Swiss Disc Road Disc front wheels:

• Quick-release mounting 9x100 mm: Item No. HWGXXX00S3801S
• Thru-bolt mounting 9x100 mm: Item No. HWGXXX00S3803S
• QR12 thru-axle mount 12x100 mm: Item No. HWGXXX00S6885S
• QR15 thru-axle mount 15x100 mm: Item No. HWGXXX0004785S
