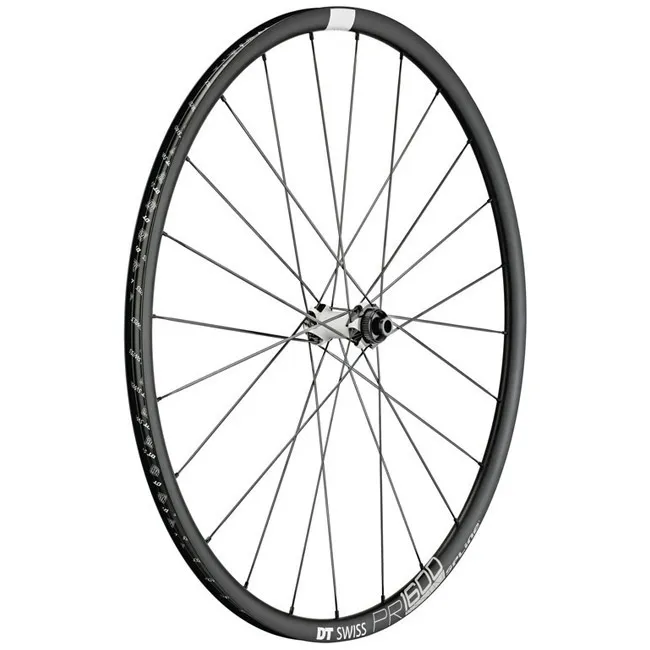

DT Swiss PR 1600 Spline Disc wheel

With their classic 23 mm high rims, the DT Swiss PR 1600 Spline Disc front wheels (item no. WPR1600AIDXSA04444) are the recommended choice for particularly robust and fast race, cross and gravel wheelsets.

Spare parts DT Swiss PR 1600 SPLINE DB 23 12/100 mm front wheel:

• Tubeless-ready tape 21 mm / 10 m black, item no.: TVX2110S29808S
• Tubeless valve, aluminium silver, road, item no.: TVVXA32S25874S
• Ball bearing 6902 Ø 15/28x7mm, B.BEARING 6902 ESB/ESNB L, Item No.: HHSBXXX00N2336S
• Spacer sleeve Ø15.2/19x57.2mm, DBCL, SPACER, Item No: HXD00000N6017S
• DT Aluminium nipple Squorx Pro Head Pro Lock black, Item No: NNPAH20150S0100
• Spokes left: DT Aero comp wide straight pull BLACK 2.0/1.0 x 296 2.8mm wide, Item No: SACS20296S00200274
• Spokes, right: DT Aero comp wide straight pull BLACK 2.0/1.0 x 298 2.8mm wide, Item No: SACS20298S00200274
• Compatible replacement rim: DT Swiss R 460, 24-hole, R 460 700C 23 mm DB VI, Part No: RTR046DPN24S011340

Compatible endstops for DT Swiss front hub Type 350 Disc Road:

• Quick-release mounting 9x100 mm, Item No: HWGXXX00S3801S
• Thru-bolt mounting 9x100 mm, Part No: HWGXXX00S3803S
• Thru-axle mount 12x100 mm, Item No: HWGXXX00S6885S
• Thru-axle mount 15x100 mm, Item No: HWGXXX0004785S
• 31mm Torque Cap thru-axle mount 15x100 mm, Item No: HWGXXX0009100S

DT Swiss PR 1600 Spline DB 23 Disc Wheel Technology:

• for folding and tubular tyres, clincher ETRTO: 622 x 18

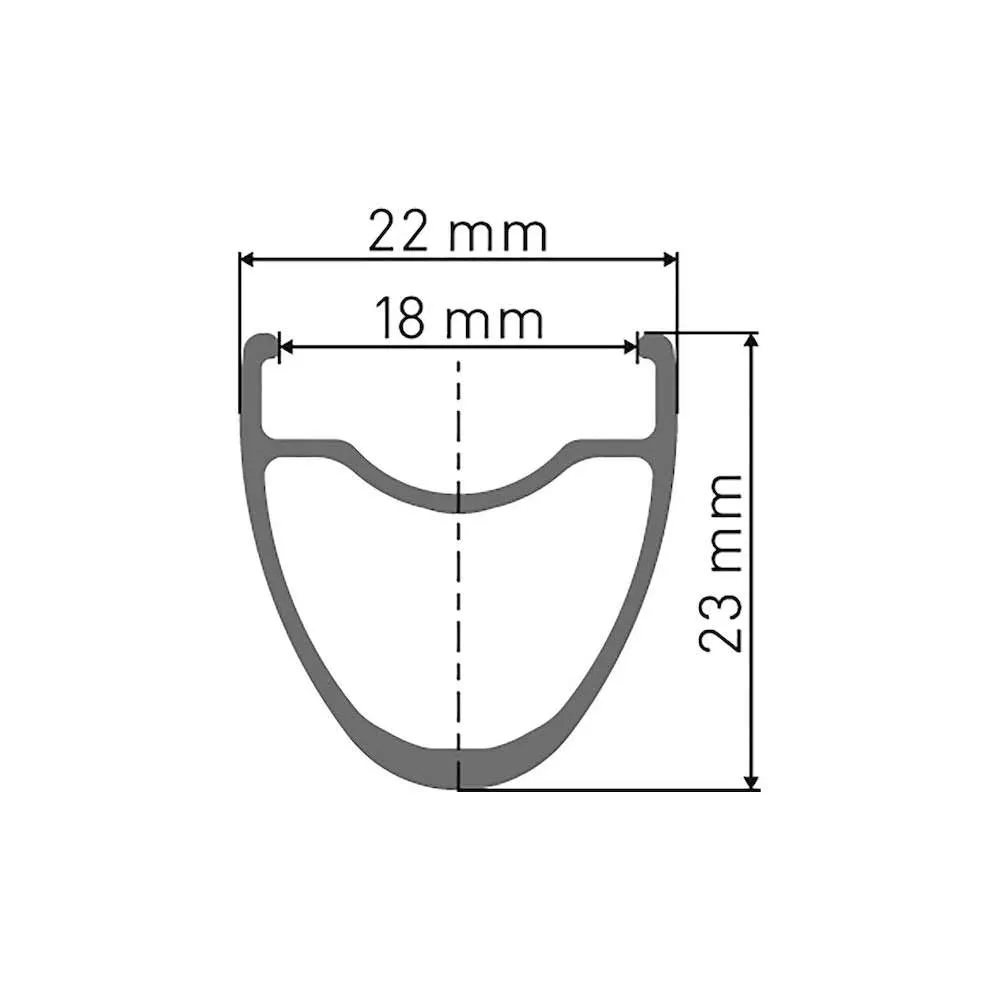

• Rim width: 22 mm (external), 18 mm (internal), rim height: 23 mm
• Hub with Swiss steel ball bearings and 18-tooth freehub body
• Spokes: butted, cold-forged Aerocomp and Newaero flat spokes
• Nipples: DT Swiss Prolock aluminium special nipples
• Lacing: Front wheel double-cross
• Required rim tape width 21 mm
• Number of spokes: 24 per wheel
• Centerlock brake pad mount
• Front wheel optionally available with end stops for QR 15x100mm thru-axles, 12x100mm thru-axles or 9x100mm quick-release mount
• Weight approx. 756 grams,
• Maximum recommended system weight (rider and bike): 120 kg

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
