Endstops DT Swiss

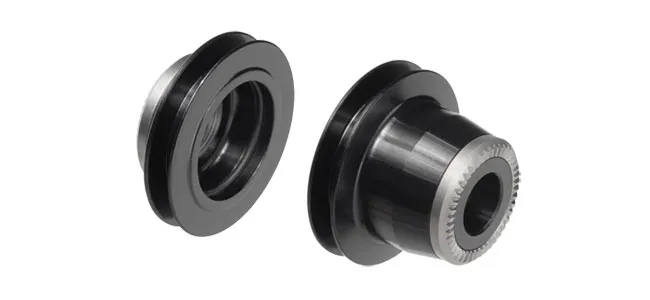

The end stops for DT Swiss disc road bike and MTB front hubs with an 18 mm outer diameter of the hub axle. DT Swiss now fits axles with a 17 mm outer diameter in newer hubs. These end stops cannot be used there. If in doubt, please remove the existing end stop and measure the axle diameter

• DT Part No. HWGXXX0002326S
• Contains end stops
• for conversion to 9x100 mm thru-bolt axle

Compatible with

• 240S fifteen front hub
• 240S Straight Pull front hub
• 180 Carbon Ceramic front hub up to 2015 model
• Tricon XM front hub
• RC28 Disc front hub
• RC38 Disc front wheel hub
• Spline One 1501 up to 2016 model
• Spline One 1501 HYBRID
• Spline Carbon 1250

End stops for hub axles with 18 mm outer diameter

• Quick-release assembly 9x100 mm, DT Swiss Part No: HWGXXX0002328S
• Thru Bolt thru-axle fitting 9x100 mm, DT Swiss Part No: HWGXXX0002326S
• QR12 thru-axle assembly QR12x100 mm, DT Swiss Part No: HWGXXX00S7000S
• QR15 quick-release axle assembly QR15x100 mm, DT Swiss Part No: HWGXXX00S4468S
• QR15 Torque Cap thru-axle assembly QR15x100 mm, DT Swiss Part No: HWGXXX0009101S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
