Mavic Aksium Elite replacement rim

Included in delivery set No. 5 in the illustration

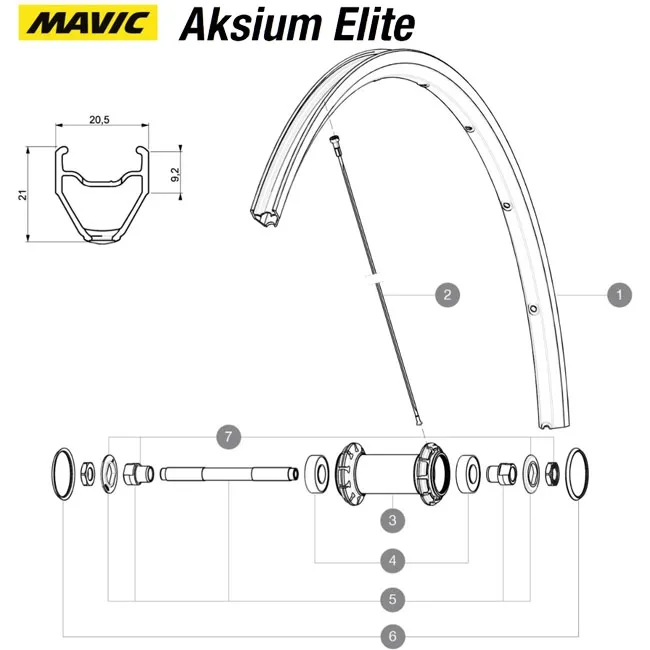

Mavic Aksium Elite front wheel spare parts:

• No. 1 Rim: Item No. V2290715, KIT FRONT/REAR RIM AKSIUM ELITE
• No. 2 Spokes: Item No. 10844901, 10 BLACK FRT/REAR OFW AKSIUM 010 SPOKES 282mm
• No. 4 Bearing: Item No. M40318, HUB BEARING KIT 6001

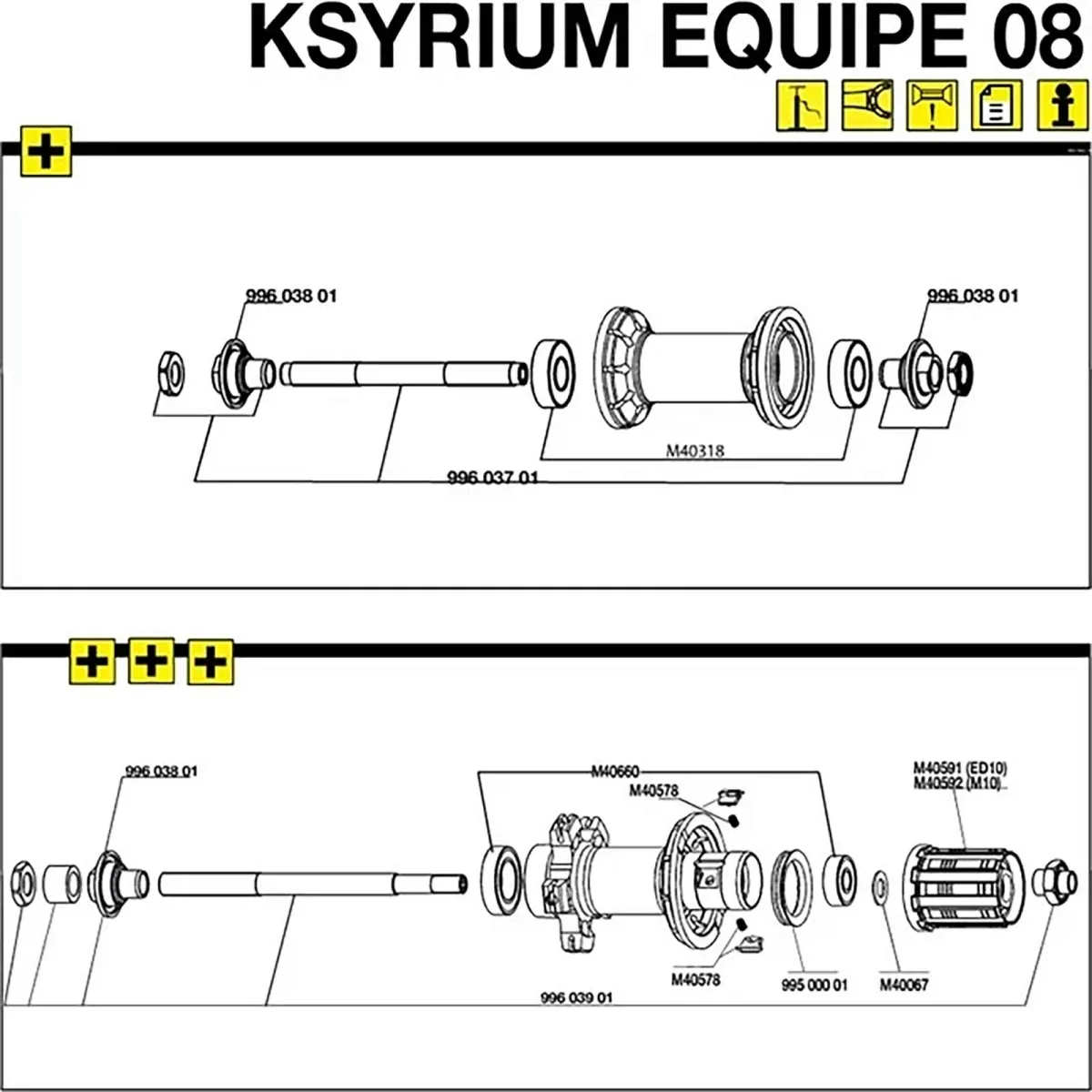

• No. 5 Axle: Item No. 99603701, FRONT AXLE KSYRIUM EQUIPE 08
• No. 6 Spoke retainer: Item No. 10846101, KIT SPOKES HOLDER CAP 3 BLACK + 3 SILVER
• No. 7 Bearing adjustment: Item No. 99603801, EXPENS.BEARING SUPP.KSY.EQU.08

Mavic Cosmic Carbon S 40 Rim Brake front wheel spare parts:

• Front wheel replacement rim, 18 holes, height 40 mm, width 26 mm, rim width 19 mm, Item No: V00122101
• Replacement J-bend stainless steel spokes 262 mm with nipples and washers, Item No: V00097031
• Tubeless rim tape 25 mm, Item No: V2620101
• Axle nut / bearing cover, Part No: 99603801
• Hub bearing type 6901 / 12x28x8mm Item No:M40318
• Axle screw connection / bearing cover Item No.: 99603801
• Hub axle with screw fittings Item No.: 99603701

These spare parts, such as bearings, bolts and axles, are also used on other Mavic wheels. The hubs of Mavic wheels are not available as spare parts.
