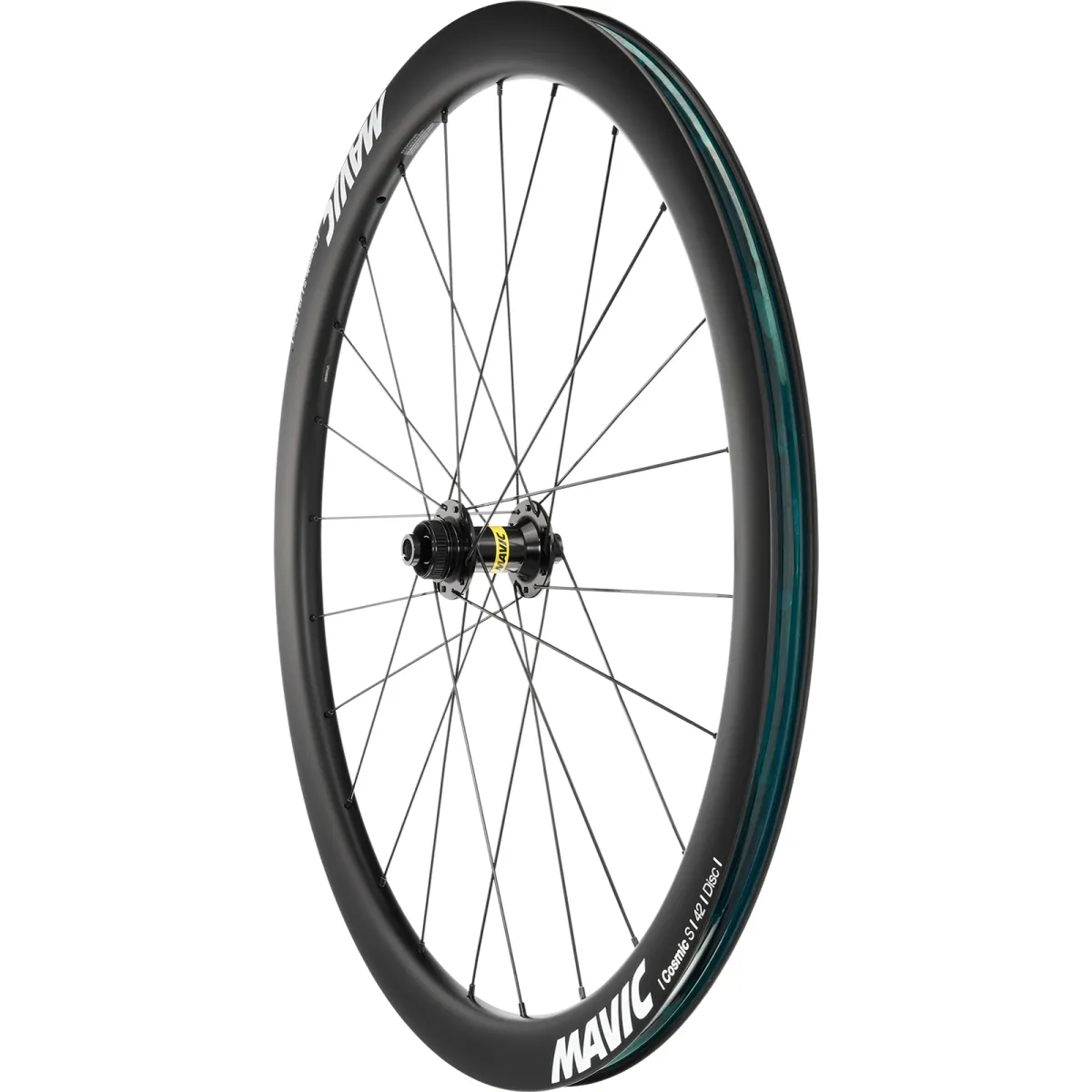

Mavic Cosmic S 42 Carbon Disc Wheel

The affordable carbon wheels for road racing, endurance and gravel riding. Dynamic and easy to ride, versatile on any terrain, reliable and easy to maintain, weighing just 1660 grams, fast thanks to the 42 mm rim profile, very stable and also suitable for wide tyres thanks to the 21 mm rim width. The new Cosmic S 42 Disc wheels offer low aerodynamic drag, excellent handling and very high stability. Optimised for 25–45 mm tyres.

Included:

• Mavic Cosmic S 42 front wheel, end stops as selected, tubeless rim tape, Mavic tubeless valve

Mavic Cosmic S 42 Carbon Disc 21 mm wheel specifications and dimensions:

• 28 inches, clincher for folding and clincher tyres ETRTO 622x21TC
• Material: 12K carbon weave carbon rim bed
• Tubeless ready, Crotchet Tubeless TC
• High-profile rim 42 mm
• Internal width: 21 mm, external width: 30 mm
• Brake disc mount: Disc Centerlock
• Colour: Carbon black
• Spoke material: J-bend stainless steel spokes
• Number of spokes: 24 front and 24 rear
• Spoke pattern: 2-cross front, 2-cross rear
• Hub body: Aluminium front and rear
• Bearings: QRM Auto
• Front wheel hub: Aluminium body, QR 12x100mm, QR12 thru-axle mount,
  optionally convertible to quick-release
• Minimum tyre size: width 25 mm – max. pressure 6.1 bar/88 PSI
• Maximum tyre size: Width 64 mm – max. pressure 3.5 bar/51 psi
• Weight: 775 grams, manufacturer’s specification
• ASTM Category 2: Roads and paths with jumps of less than 15 cm in height.
• Maximum recommended system weight: 120 kg

Mavic Cosmic S 42 Disc Applications:

Road Race, Endurance, Gravel. Suitable for use with disc brakes only. Approved by Mavic for riders up to 120 kg. These wheels can be used with genuine UST tyres, tubeless-ready tyres and standard tyre-inner tube combinations.

Mavic Cosmic Carbon S 42 Disc front wheel spare parts:

• Front wheel adapter for 9x100mm quick-release mounting, item no.: V2680301
• Front wheel adapter for 12x100mm thru-axle mounting Part No: V2680501
• Replacement rim for front or rear wheel, 24-hole, height 42 mm, width 30 mm, rim depth 21 mm Item No: V00106031
• Replacement spokes, J-bend Aero stainless steel, 273 mm, with nipples and washers, Item No.: V00106131
• Tubeless rim tape 25 mm, Item No: V2620101
• Hub bearing type 6902 / 15x28x7 mm, Part No: M40129
• QRM Auto hub axle 12 x 100 mm, Part No: V2373301

Mavic COSMIC S 42 DISC 21 mm

Welcome to a new dimension of cycling.

The Mavic Cosmic S 42 wheelset, with its ultra-light full-carbon rims, offers instant acceleration and improved control. Thanks to an internal width of 21 mm, the wheels maximise tyre volume, boost confidence, improve efficiency and optimise cornering behaviour. Its design perfectly handles the stresses associated with disc brakes and ensures exceptional handling and braking power.

A profile height of 42 mm and wind tunnel-tested flat spokes maximise the aerodynamics of the Cosmic S 42 Disc and ensure lateral stability at high speeds. Cyclists seeking versatility on slightly hilly roads or in the mountains will find what they’re looking for here. The low weight guarantees excellent performance on the toughest climbs, allowing you to tackle Alpe d’Huez as if it were a hill. Mavic’s UST Tubeless Ready technology simplifies tyre fitting and ensures greater comfort and efficiency. High-quality spokes, durable bearings and our ID360 freehub technology ensure exceptional strength and longevity. The Cosmic S 42 Disc is hand-built in Europe and is the result of Mavic’s extensive experience in manufacturing high-quality wheelsets.

The exceptional dynamics and remarkable smoothness of the Cosmic S 42 Disc offer versatile options for cyclists seeking optimal performance in all conditions. With its reliability and ease of maintenance, it is a long-lasting investment ready for any challenge. Don’t spend too long searching for the ideal wheel: the Cosmic S 42 Disc is here to bring a legendary level of performance and perfection to your ride.

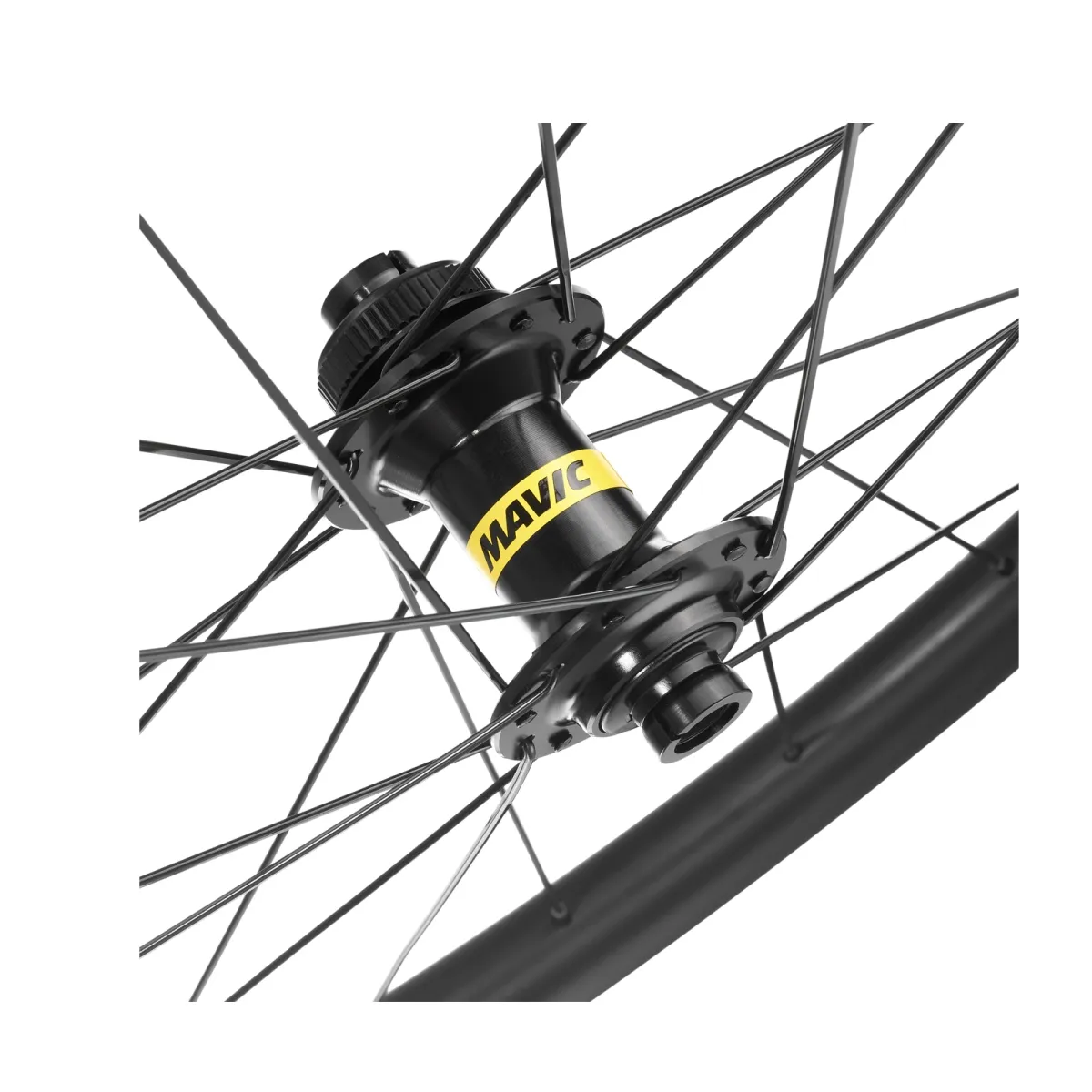

Mavic Infinity Classic Disc hubs:

the Classic Infinity hubs are equipped with a larger 17 mm axle diameter and larger bearings. This increases the torsional stiffness of the axles by approximately 35 per cent. The proven Mavic QRM auto industrial bearings are used in the Infinity hubs. Equipped with the Instant Drive sprocket freehub body, the ORM auto axle system and self-aligning bearings, they ensure maintenance-free operation over a long period.

Mavic Infinity Disc Hub Compatibility:

The oversized aluminium axles allow for easy conversion to all standard axle systems. The Infinity front hub is compatible with QR9x100mm quick-release and QR12x100mm thru-axle mounts, whilst the Infinity rear hub is compatible with 10x135mm quick-release mounts and 12x142mm and 12x135mm thru-axles.

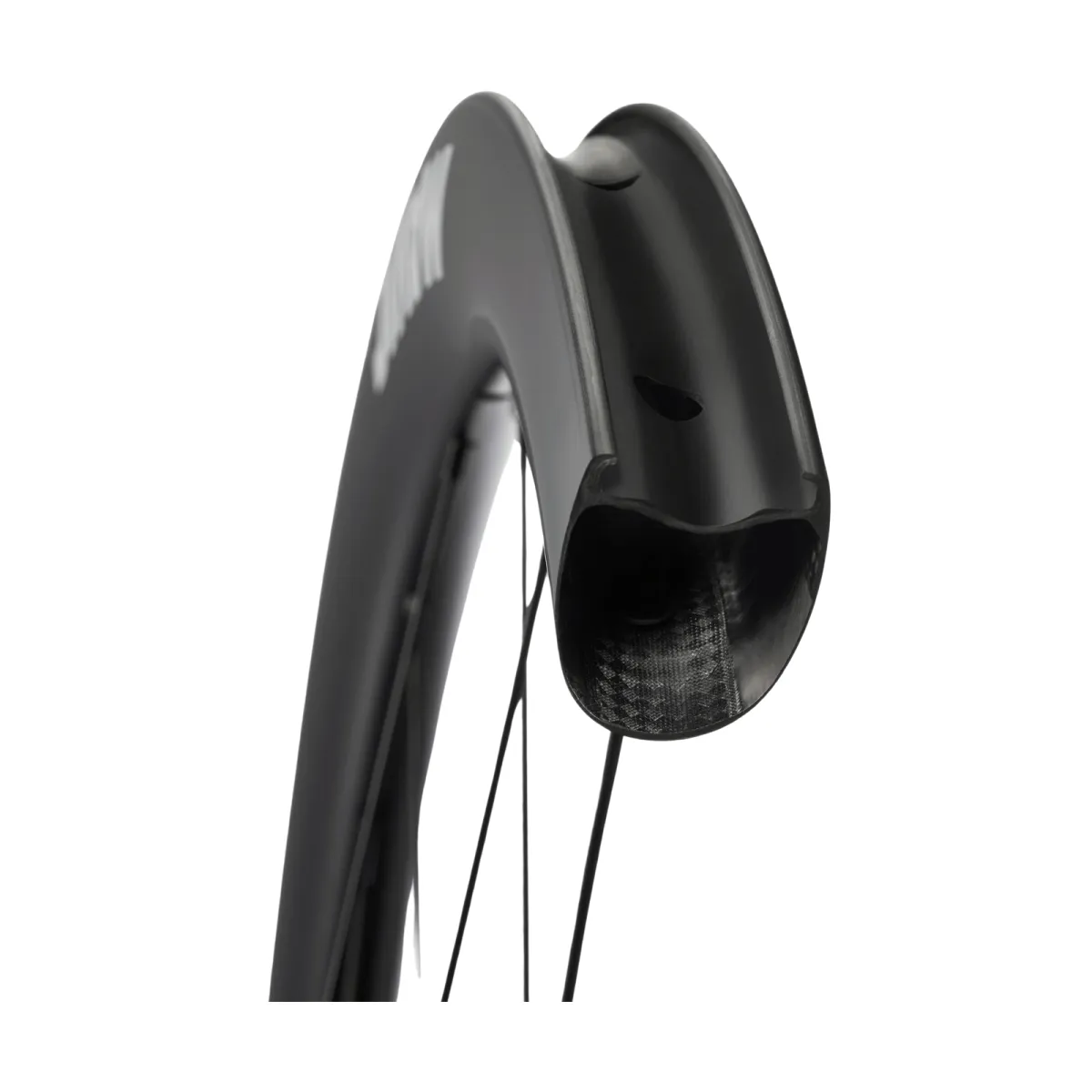

Mavic Cosmic S 42 Tubeless Disc rims:

The 42 mm high full-carbon aero rims with a 21 mm rim width are perfectly designed for tyre widths of 25–45 mm. The new rim profile offers the best possible aerodynamics. The Adaptive Carbon Lay-Up allows for a weight saving of 70 grams during rim production. Unlike other wheelsets with a uniform lay-up, this exclusive draping technique allows the carbon thickness to be varied locally, depending on the varying demands placed on the wheelset. Specifically, less material is used between the spokes, whilst the rim is reinforced at the spoke holes where stresses are highest. All this without ever compromising the stiffness and strength of the wheel for dynamic riding.

Hooked / Crotchet tubeless TC:

Hooked rims, or Crotchet rims, refer to the shape of the rim flange, which features a so-called hook. This supports the tyre bead and ensures that the tyre cannot come off the rim, even when using high tyre pressure > 5 bar. Tubeless means that the rim can be ridden without an inner tube, but a setup with an inner tube is also possible.

Mavic stainless steel spokes:

The durability of Mavic stainless steel spokes is exceptionally high.

Mavic Tubeless System:

The new rim bed makes fitting tubeless tyres easier. The pronounced and wider grooves in the rim bed significantly simplify tubeless fitting. Mavic is thus setting the standard for easy tubeless fitting. The fitting process is no different from that of standard folding tyres. This allows the advantages of tubeless tyres – lower rolling resistance, greater riding comfort and a reduced risk of punctures – to come into their own.

Of course, the Mavic Cosmic wheels can also be used with standard folding and clincher tyres and inner tubes without any issues. When out and about, we recommend carrying a standard inner tube as a quick puncture repair solution.

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
