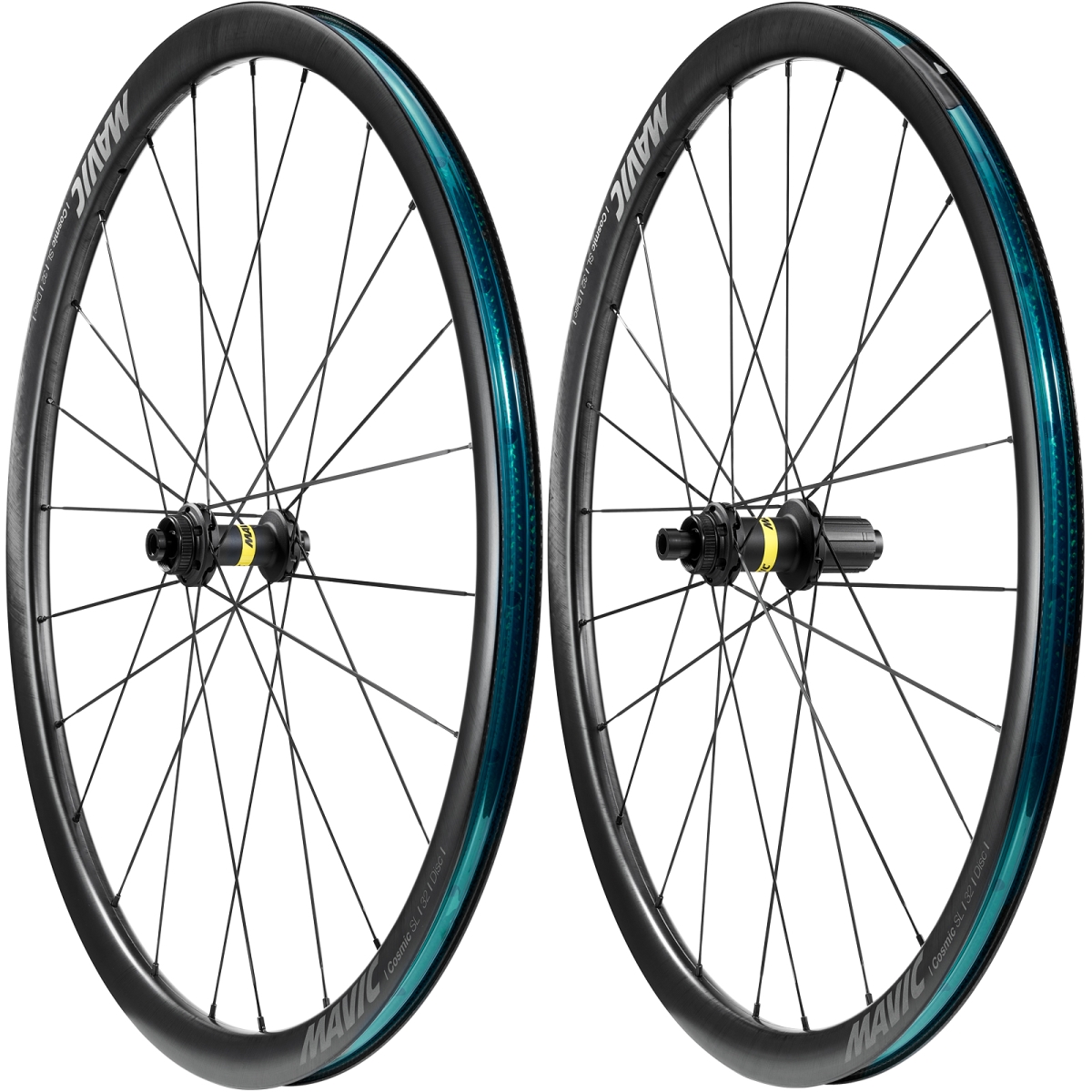

Mavic Cosmic SL 32 Carbon Disc wheelset

Light enough for uphill racing and stable enough for gravel riding: the extra-light Mavic Cosmic SL 32 wheels. Very light, weighing just 1475 grams, fast and comfortable thanks to the 32 mm high NACA rim profile, very stable and also suitable for wide tyres thanks to the 21 mm rim width. The new Cosmic SL 32 Disc wheels offer low drag, excellent handling and very high stability. Optimised for 25–45 mm tyres.

Included:

• Mavic Cosmic SL 32 front wheel, end caps as selected, tubeless rim tape, Mavic UST valve
• Mavic Cosmic SL 32 rear wheel, end caps and freehub body as selected, tubeless rim tape, Mavic UST valve

Mavic Cosmic SL 32 Carbon Disc 21mm wheel specifications and dimensions:

• 28 inches, clincher for folding and clincher tyres ETRTO 622x21TC
• Material: 12K carbon weave carbon rim bed
• Tubeless ready, Crotchet tubeless TC
• High-profile rim 32 mm
• Width: 21 mm (internal), 27 mm (external)
• Brake disc mount: Disc Centerlock
• Colour: Carbon black
• Spoke material: Stainless steel aero spokes
• Number of spokes: 24 front and 24 rear
• Spoke pattern: 2-cross front, 2-cross rear
• Hub body: Aluminium front and rear
• Bearing: QRM Auto
• Front wheel hub: aluminium body, QR 12x100mm, QR12 thru-axle mount,
  optionally convertible to quick-release
• Rear wheel hub: aluminium body, 12x142mm, X12 thru-axle mount,
  optionally convertible to 12x135mm thru-axle and quick-release mount
• Freewheel: Instant Drive 360 aluminium sprocket system, available as
  • HG11 freehub for Shimano and SRAM cassettes, compatible with 8, 9, 10 and 11-speed
  • ED Campagnolo freehub body for Campagnolo 9-speed, 10-speed, 11-speed and 12-speed cassettes
  • N3W Campagnolo freehub body for Campagnolo 13-speed cassettes
  • SRAM XDR freehub for SRAM Road AXS 12-speed and SRAM MTB XG 11- and 12-speed cassettes
  • Microspline freehub for Shimano MTB 12-speed cassettes
• Minimum tyre size: width 25mm – max. pressure 6.1 bar/88 PSI
• Maximum tyre size: Width 64mm – max. pressure 3.5 bar/51 PSI
• Weights: Wheel set 1475 grams, front wheel 680 grams, rear wheel 795 grams, manufacturer’s specification
• ASTM Category 2: Roads and paths with jumps of less than 15 cm in height.
• Max. recommended system weight 120 kg

Mavic Cosmic SL 32 Disc Applications:

Road Race, Endurance, Gravel. Suitable for use with disc brakes only. Approved by Mavic for riders and bikes up to 120 kg. These wheels can be used with genuine UST tyres, tubeless-ready tyres and standard tyre-inner tube combinations.

Spare parts Mavic Cosmic Carbon SL 32 Disc front wheel Part No. F00091001:

• Front wheel adapter for 9x100mm quick-release mounting, Part No: V2680301
• Front wheel adapter for 12x100mm thru-axle mounting, Part No: V2680501
• Replacement rim (front or rear), height 32 mm, width 27 mm, rim depth 21 mm, Part No: V00116231
• Replacement spokes Aero 284 mm with nipples and washers Item No.: V4163401
• Tubeless rim tape 25 mm, Item No:V2620101
• Hub bearing type 6902 / 15x28x7 mm, item no.: M40129
• Hub axle QRM Auto 12 x 100 mm Item No.: V2373301

Spare parts for Mavic Cosmic Carbon SL 32 Disc rear wheel, Part No. R00091303:

• Rear wheel adapter for 10x135mm quick-release mounting, item no.: V2510801
• Rear wheel adapter for 12x135mm thru-axle mounting Item No: V2510901
• Rear wheel adapter for 12x142mm thru-axle mounting Item No: V2510701
• Replacement rim for front or rear wheel, height 32 mm, width 27 mm, rim depth 21 mm Item No: V00116231
• Replacement spokes Aero 284 mm with nipples and washers Item No: V4163401
• Tubeless rim tape 25 mm, Item No:V2620101
• Hub bearing type 6903 / 17x30x7 mm Item No: M40076
• Rear wheel axle kit 135/142 for ID360 Disc Centerlock hub with retaining ring and cover Item No: V2373401
• Sprocket retainer with retaining ring Item No: V2252701
• Freewheel body seal Part No: V2251601
• Sprocket kit with spring Item No.: V2251701
• Rubber for noise damping Item No: V2500501
• Spring for pawls Item No: V2251801
• Bearing cover with shaft washer and circlip Part No: V2373001

Compatible Mavic Instant Drive 360 freehub body:

• Aluminium Light freehub body for Shimano HG + Sram cassettes Part No: V3850101
• Aluminium freehub body for Shimano HG + SRAM cassettes Item No: V3430101
• Aluminium freehub body for Campagnolo ED cassettes 10-12 speed Item No: V3440101
• Aluminium freehub body for Campagnolo N3W cassettes 10-12 speed Item No: V4270101
• Aluminium freehub body for Sram XDR and XD cassettes Item No: V2580101
• Aluminium freehub body for Shimano Microspline cassettes Item No: V3990101

Mavic COSMIC SL 32 DISC 21mm

Mavic’s Cosmic SL Carbon extra-light carbon disc wheels, featuring 32 mm high UD carbon rims and Mavic QRM Auto Infinity hubs. These top-of-the-range all-round aero wheels impress not only with the lowest rolling resistance in their category, but also with completely new road tubeless technology. This design enables very lightweight and exceptionally stable carbon wheels weighing just 1475 grams. The new Infinity Disc hubs are lightweight and compatible with all standard axle-frame systems. The rear wheel features the Instant Drive 360 sprocket freehub body with the new, extra-stable QRM Auto bearing system.

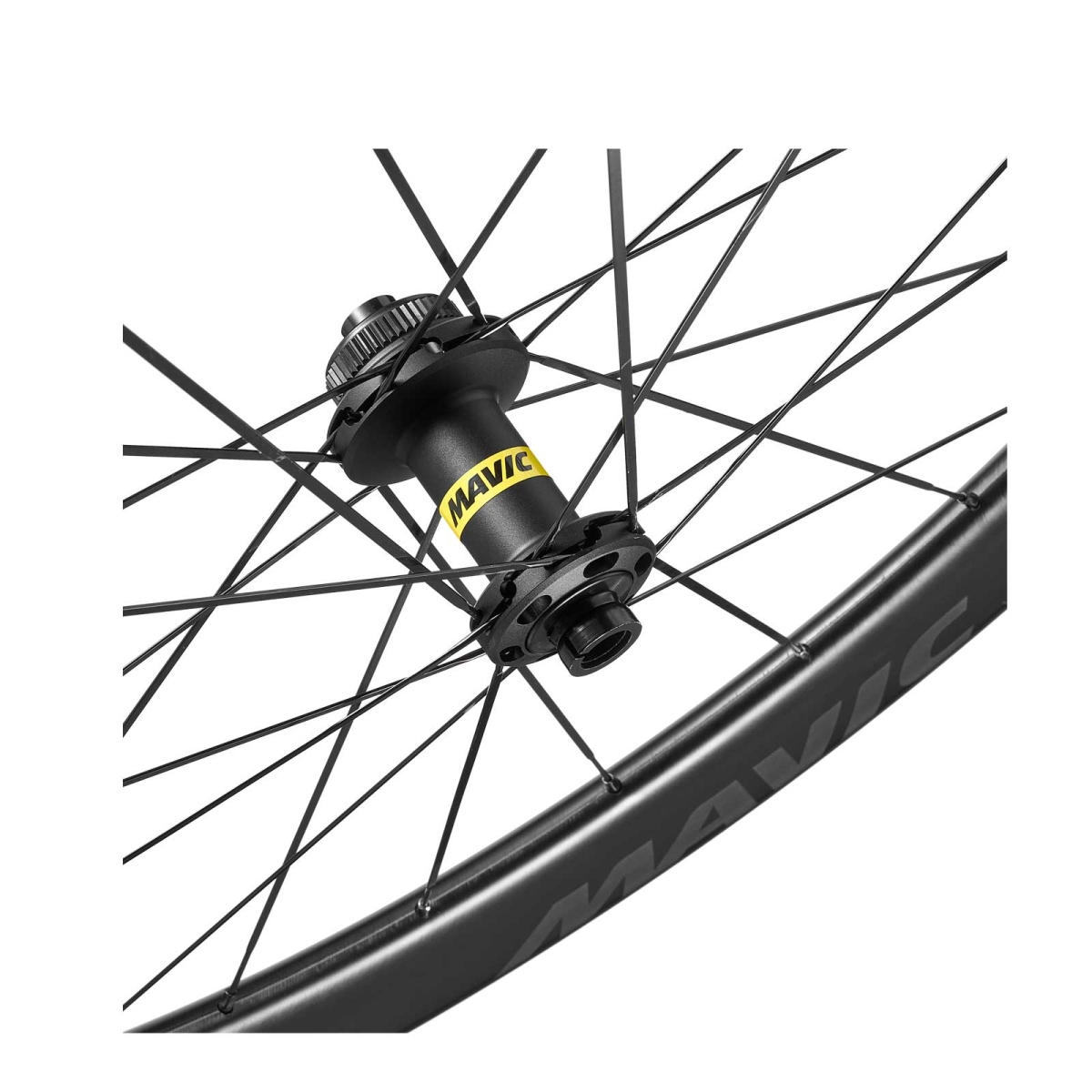

Mavic Infinity Disc hubs:

The completely newly developed Infinity hubs are equipped with a larger 17 mm axle diameter and larger bearings. This increases the torsional stiffness of the axles by approximately 35 per cent. The proven Mavic QRM Auto industrial bearings are used in the Infinity hubs. Equipped with the Instant Drive sprocket-style freehub body, the ORM Auto axle system and self-aligning bearings, they ensure maintenance-free operation over a long period.

Mavic Infinity Disc Hub Compatibility:

The oversized aluminium axles allow for easy conversion to all standard axle systems. The Infinity front hub is compatible with QR9x100mm quick-release and QR12x100mm thru-axle mounts, whilst the Infinity rear hub is compatible with 10x135mm quick-release mounts and 12x142mm and 12x135mm thru-axles.

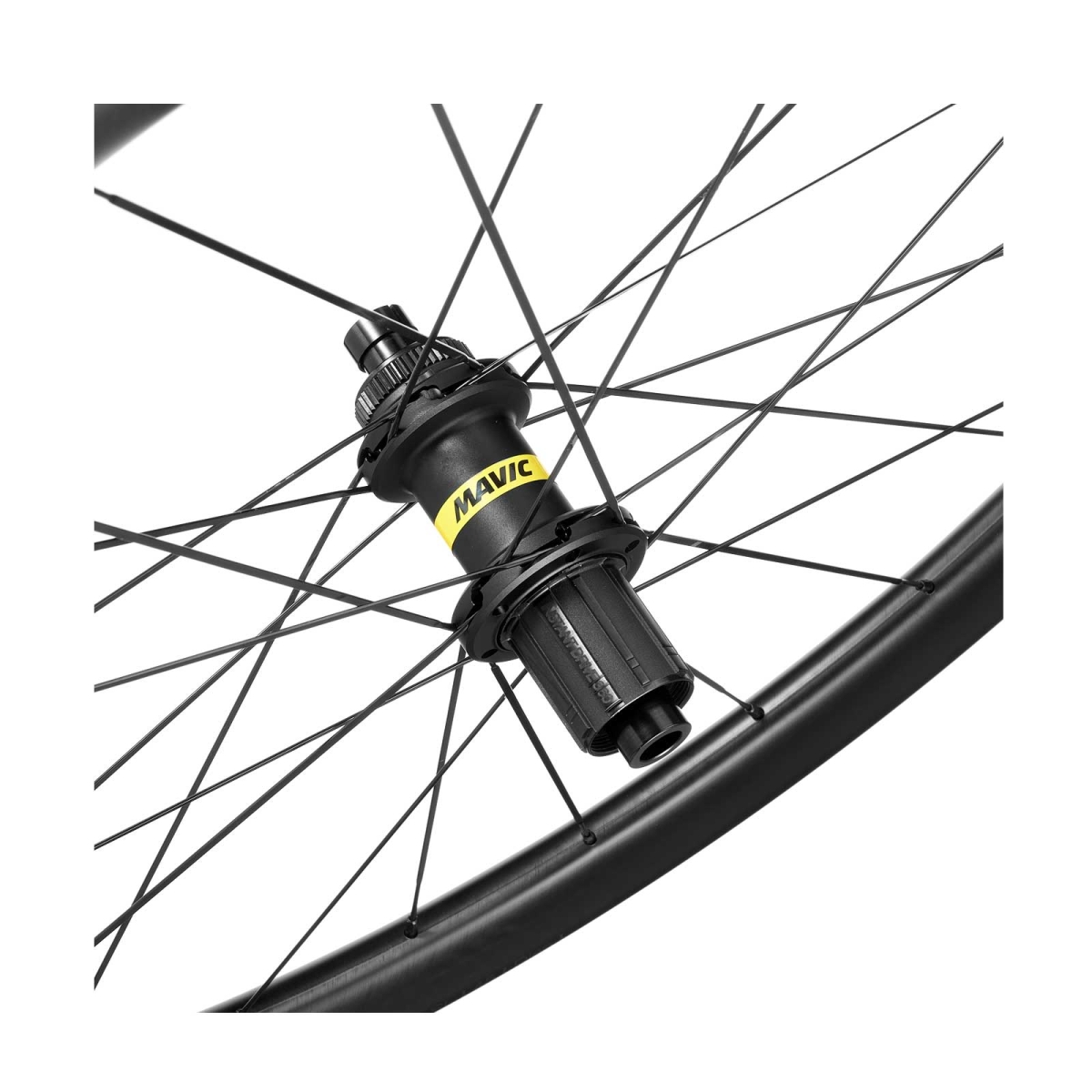

Mavic Instant Drive 360 Freehub Body

The Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two sprockets with 40-tooth profiles ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available in an HG11 version for Shimano and SRAM 8–11-speed, SRAM XDR 12-speed road bike and Campagnolo 9–12-speed ED cassettes. A rubber damper is fitted as standard, which can be removed. For those who prefer a slightly more distinctive sound.

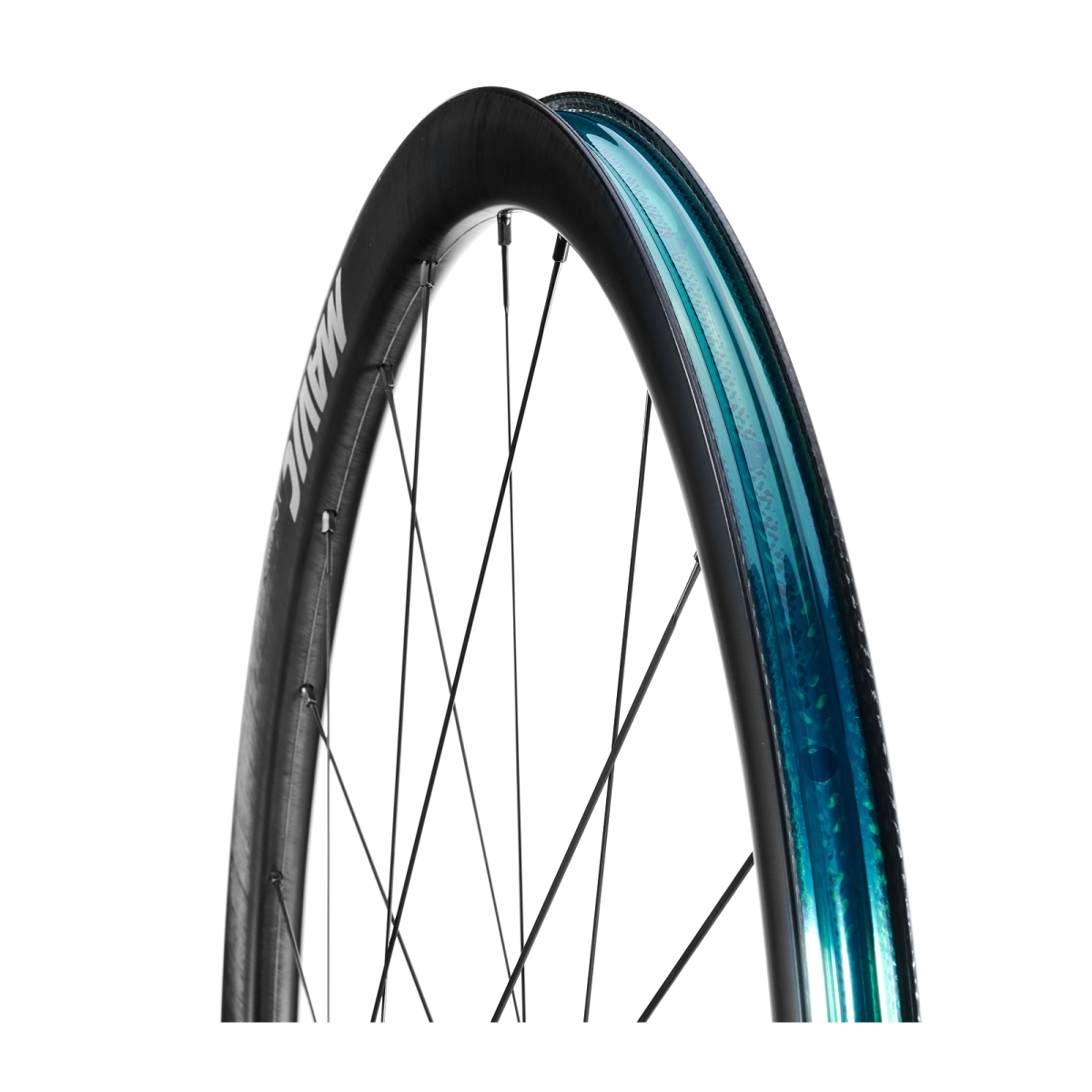

Mavic Cosmic SL 32 Tubeless Disc Rims:

The 32 mm high full-carbon aero rims with a 23 mm rim width are perfectly designed for tyre widths of 25–45 mm. The new NACA rim profile offers the best possible aerodynamics. The Adaptive Carbon Lay-Up allows for a weight saving of 70 grams during rim production. Unlike other wheelsets with a uniform lay-up, this exclusive draping technique allows the carbon thickness to be varied locally, depending on the varying demands placed on the wheelset. Specifically, less material is used between the spokes; conversely, the rim is reinforced at the spoke holes where the stresses are highest. All this without ever compromising the stiffness and strength of the wheel for dynamic riding.

Hooked / Crotchet tubeless TC:

Hooked rims, or Crotchet rims, refer to the shape of the rim flange, which features a so-called hook. This supports the tyre bead and ensures that the tyre cannot come off the rim, even when using high tyre pressure > 5 bar. Tubeless means that the rim can be ridden without an inner tube, but a setup with an inner tube is also possible.

Mavic Aero spokes:

The patented elliptical spoke shape significantly improves aerodynamics. The durability of Mavic stainless steel spokes is exceptionally high.

Mavic Tubeless System:

The new rim bed makes fitting tubeless tyres easier. The pronounced and wider grooves in the rim bed significantly simplify tubeless fitting. Mavic is thus setting the standard for easy tubeless fitting. The fitting process is no different from that of standard folding tyres. This allows the advantages of tubeless tyres – lower rolling resistance, greater riding comfort and reduced risk of punctures – to come into their own.

Of course, the Mavic Cosmic wheels can also be used with standard folding and clincher tyres and inner tubes without any issues. When out and about, we recommend carrying a standard inner tube as a quick puncture repair solution.

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
