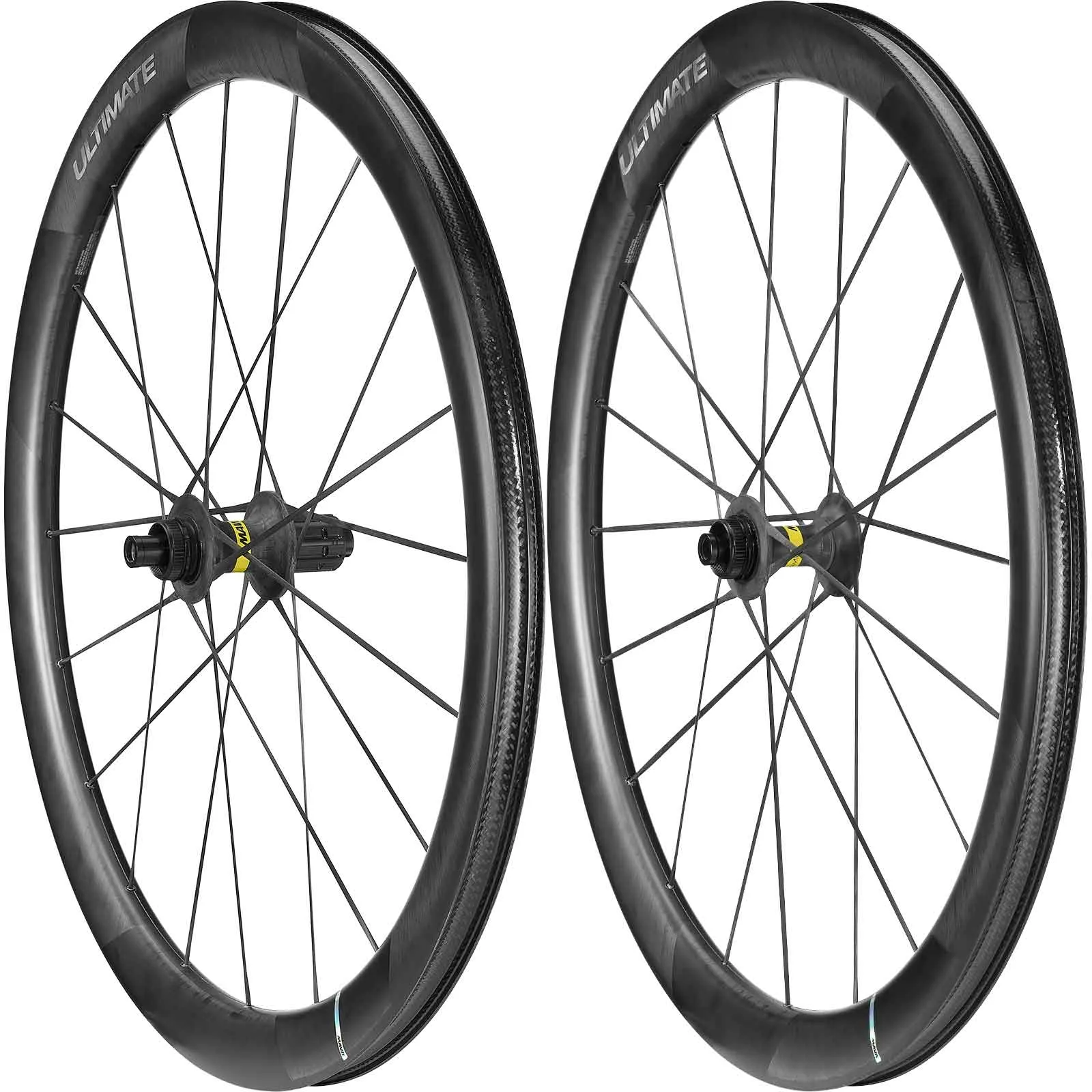

Mavic Cosmic Ultimate UST Disc wheelset

The new Ultimate Disc wheelset with genuine UST rims, rim-to-rim carbon spokes, ceramic ball bearings, carbon hubs and weighing just 1260 grams.

Included in delivery:

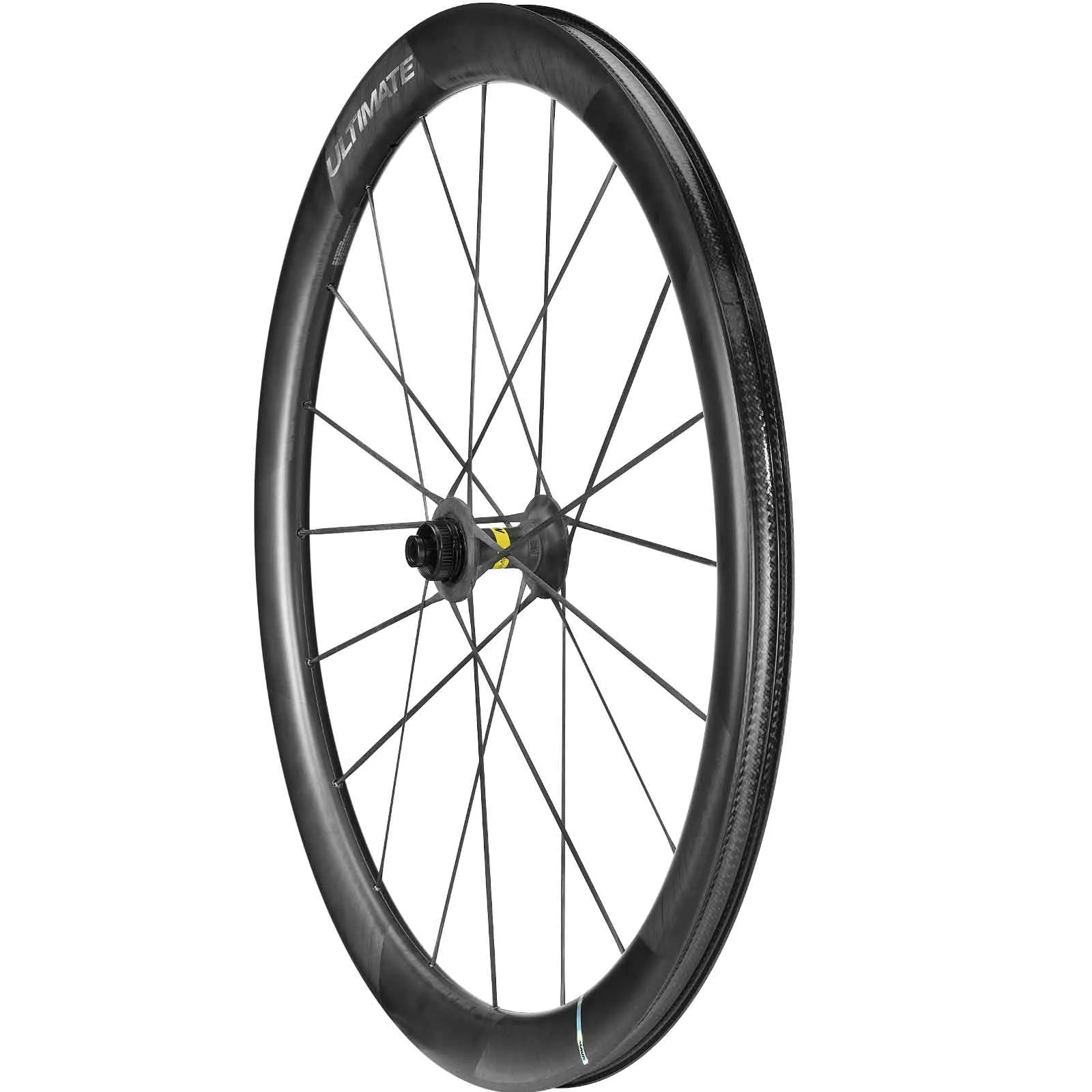

• Mavic Cosmic Ultimate UST Disc Centre Lock front wheel, 12x100mm end stops, UST valve, wheel bag

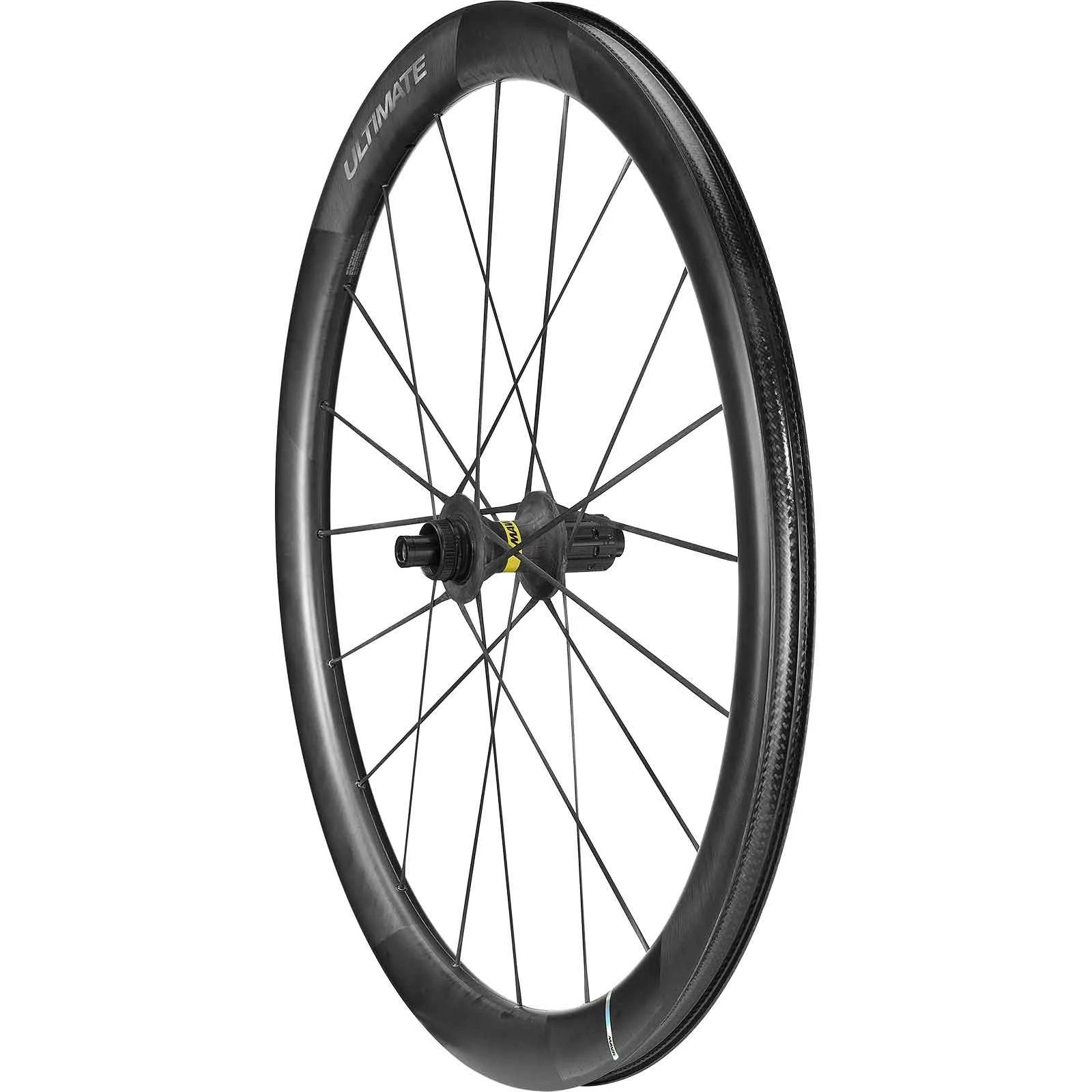

• Mavic Cosmic Ultimate UST Disc Centre Lock rear wheel, 12x142mm end stops, UST valve, wheel bag

Mavic Cosmic Ultimate UST Disc wheel technology:

• 28 inches, for folding tyres and tubeless tyres
• Material: 100 per cent 12K carbon weave
• Construction: Monobloc carbon
• High-profile rim 45 mm, 27 mm outer width,
• 23 mm rim width
• Colour: Carbon black
• Spokes manufactured in a single process with the rim
• Spoke material: unidirectional carbon
• Spoke configuration: R2R, Rim to Rim technology
• No spoke holes; spokes anchored directly into the rims
• Number of spokes: 20 each
• Lacing pattern: 2-cross

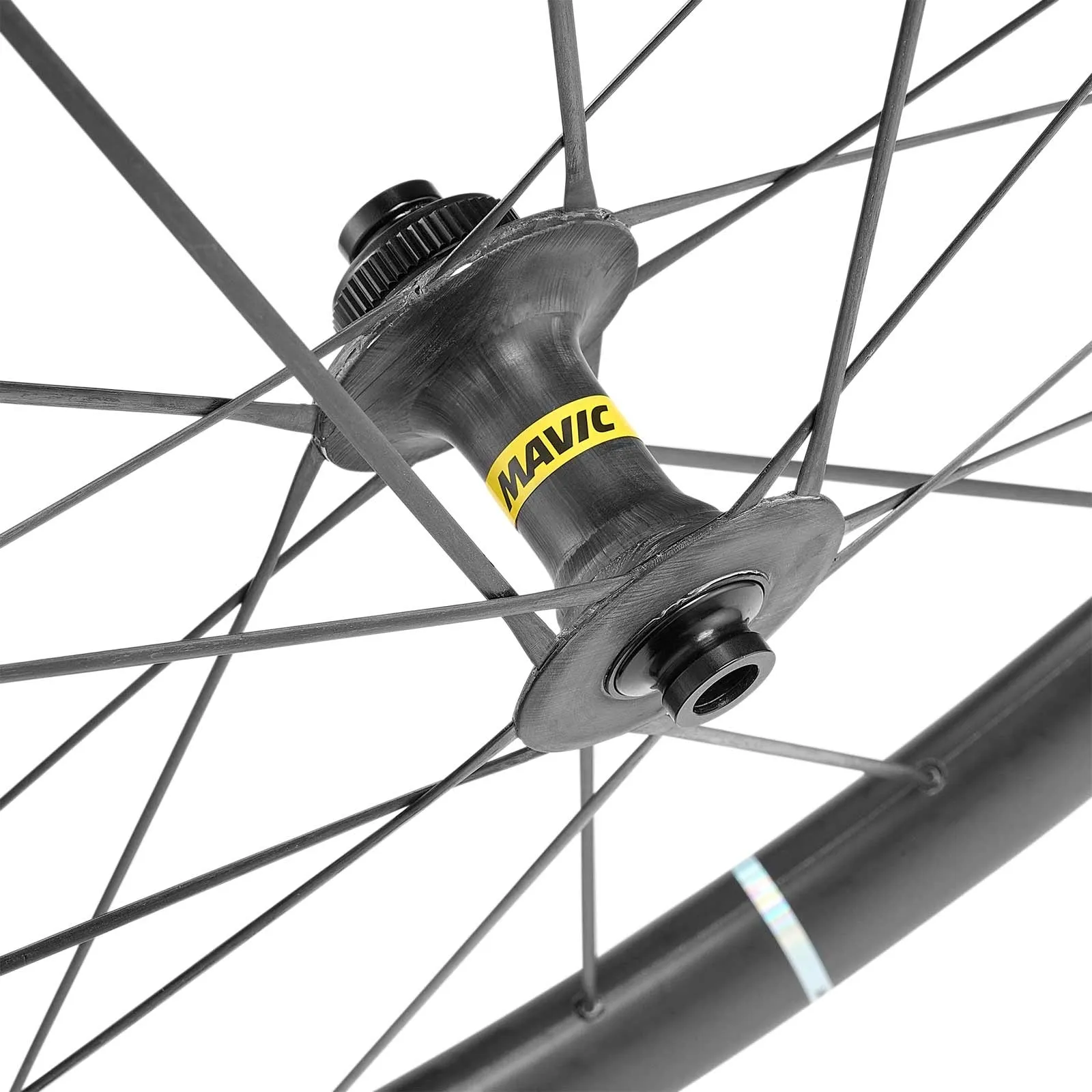

• Carbon front wheel hub QR 12x100mm, QR12 thru-axle mount convertible to quick-release

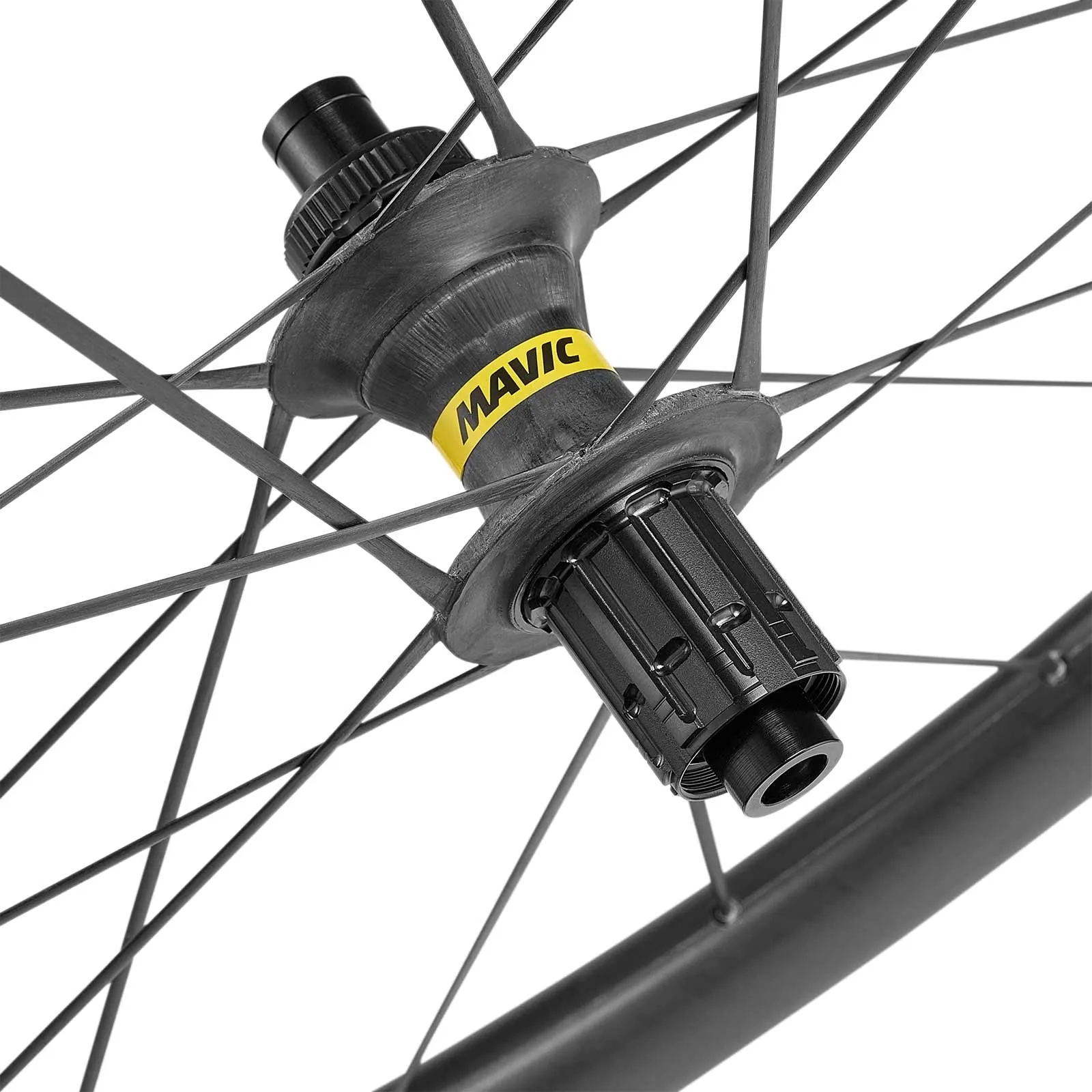

• Carbon rear hub 12x142mm, X12 thru-axle mount convertible to quick-release
• Bearings: QRM auto with ceramic bearings
• Freewheel: Instant Drive 360 aluminium sprocket system, available as
  • HG11 freehub for Shimano and Sram cassettes, compatible with 8, 9, 10 and 11-speed
  • ED Campagnolo freehub body for Campagnolo 9-speed, 10-speed, 11-speed and 12-speed cassettes
  • N3W Campagnolo freehub body for Campagnolo 10-speed, 11-speed, 12-speed and 13-speed cassettes
  • SRAM XDR freehub for SRAM Road AXS 12-speed and SRAM MTB XG 11- and 12-speed cassettes
• Recommended tyre widths: 25–32 mm
• Maximum recommended system weight: 120 kg
• ASTM CATEGORY 1

Mavic Cosmic Ultimate UST weights:

• Pair: 1225 grams
• Front wheel: 560 grams
• Rear wheel: 665 grams

Spare parts for the Mavic Cosmic Ultimate 45 Disc 23mm front wheel:

• Front wheel adapter for 9x100mm quick-release mounting, item no.: V2680301
• Front wheel adapter for 12x100mm thru-axle mounting Item No: V2374701
• Hub bearing type 6902 / 15x28x7 mm Item No: M40129
• Ceramic hub bearing type 6902 / 15x28x7 mm Item No.: V00161431
• QRM Auto 12 x 100 mm hub axle Part No: V2373301

Spare parts for the Mavic Cosmic Ultimate 45 Disc 23mm rear wheel:

• Rear wheel adapter for 10x135mm quick-release mounting Item No: V2510801 plus axle V2373401
• Rear wheel adapter for 12x135mm thru-axle mounting Item No: V2510901 plus axle V2373401
• Rear wheel adapter for 12x142mm thru-axle mounting, Part No: V3811001
• Hub bearing type 6903 / 17x30x7 mm Item No: M40076
• Ceramic hub bearing type 6903 / 17x30x7 mm Item No: V00161331
• Rear wheel axle kit Light 135/142 for ID360 Disc Centerlock hub with retaining ring and cover Item No: V00046431
• Sprocket retainer with retaining ring Item No: V2252701
• Freewheel body seal Item No:V00063631
• Sprocket kit with spring Item No.: V2251701
• Rubber for noise damping Item No.: V2500501
• Spring for toothed discs Part No: V2251801
• Bearing cover with shaft washer and circlip Part No: V2373001

Compatible Mavic Instant Drive 360 freehub body:

• Aluminium Light freehub body for Shimano HG + Sram cassettes Part No: V3850101
• Aluminium freehub body for Shimano HG + SRAM cassettes Item No: V3430101
• Aluminium freehub body for Campagnolo ED cassettes 10-12 speed Item No: V3440101
• Aluminium freehub body for Campagnolo N3W cassettes 10-12 speed Item No: V4270101
• Aluminium freehub body for Sram XDR and XD cassettes Item No: V2580101
• Aluminium freehub body for Shimano Microspline cassettes Item No: V3990101

Super-light at 1,225 grams, extremely aerodynamic, super-stiff – the wheelset of the pros. The Mavic Cosmic Ultimate wheelset features 45 mm high and 27 mm wide rims. Thanks to its extremely low weight of 1,225 grams and outstanding aerodynamics, the Mavic Cosmic Ultimate full-carbon wheelset has become the most sought-after system among Pro Tour teams. This wheelset is the perfect all-rounder and, despite its lightness, impresses with outstanding stiffness and aerodynamics.

Ultimate is not just a name; it is the perfect description of this wheel. And that is why, following its launch 10 years ago, the Cosmic Ultimate quickly became the wheel of choice for professional cyclists seeking a competitive edge. With its 100 per cent carbon, 47 mm high and 25 mm wide NACA aero rim profile for tubeless and standard folding tyres, 20 ultra-slim aero spokes on each side and extra-high, narrow carbon hub flanges, it offers genuine and proven aerodynamic advantages. It is also ultra-stiff, thanks to spokes made from unidirectional carbon fibres that do not stretch. They run continuously from one side of the rim to the other – with R2R technology, two spokes are replaced by a single one, which also does not need to be firmly anchored to the hub. The HR rim is asymmetrical to optimise the spoke angle on the right and allow for more balanced spoke tension – ensuring the wheel remains perfectly stiff even under extreme lateral forces, such as in a sprint finish or during attacks on the mountain. The rim is made from 12K carbon fibres laid over a super-stiff foam core.

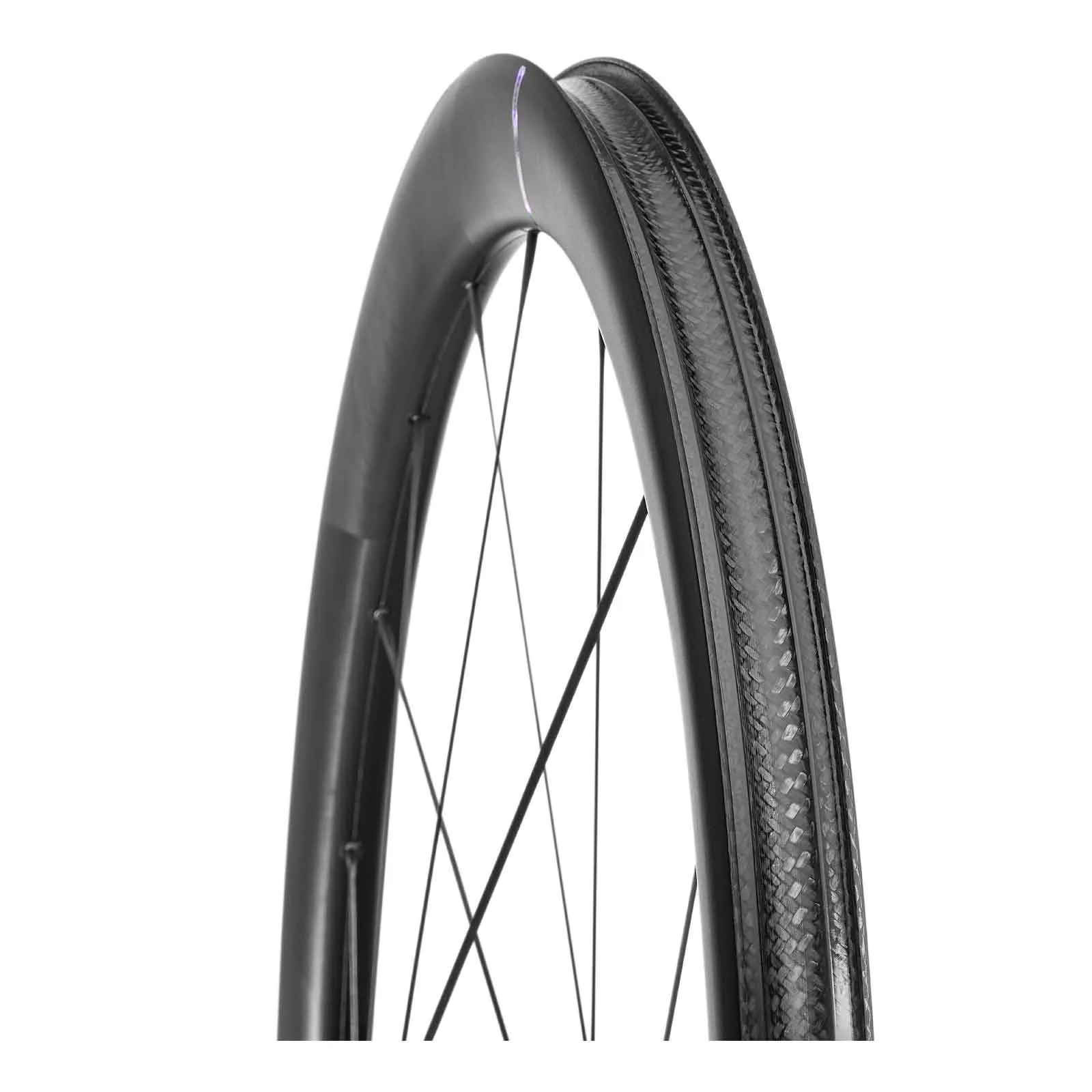

Mavic Cosmic Ultimate UST tubeless disc rim:

The rim is based on a 100 per cent carbon NACA aero rim profile, 45 mm high and 27 mm wide. Its complex fibre lay-up optimises the stiffness-to-weight ratio. And the carbon outer layer features our attractive UD finish. Because the rim base is not drilled, no rim tape is required to make the rim airtight – this guarantees trouble-free tubeless operation. Currently the stiffest full-carbon disc wheel, 45 mm high profiled rim without spoke holes, asymmetrical rear rim profile, 100 per cent carbon spokes, aerodynamic spokes and rims, carbon fibre spokes manufactured in a single process with the rim, without nipples, without spoke heads and spoke receptacles in the hubs, aerodynamically shaped front hub body. . The rim is made from 12K carbon fibres laid over a super-stiff foam core. This 100 per cent carbon construction results in an incredibly low pair weight: 1225 grams!

Mavic Ultimate Hubs

The carbon hub bodies feature industrial bearings with automatic preload. On the rear wheel, the Instant Drive 360 freehub ensures lightning-fast power transfer, 40 engagement points = 9 degrees and minimal friction losses. The hubs are thru-axle compatible (12x100 mm at the front, 12x142 mm at the rear), available only for Center Lock brake discs.

Mavic R2R Spoke Technology

Lighter, stiffer, more stable – rim to rim. The unique spokes run from one side of the rim through the hub to the other. R2R technology halves the number of spokes and spoke heads. The result is improved aerodynamics: the spoke is perfectly integrated into the hub flange. Lighter: carbon spokes are lighter than aluminium ones. Stiffer: spokes made from unidirectional carbon fibres have significantly lower elongation under tensile load.
