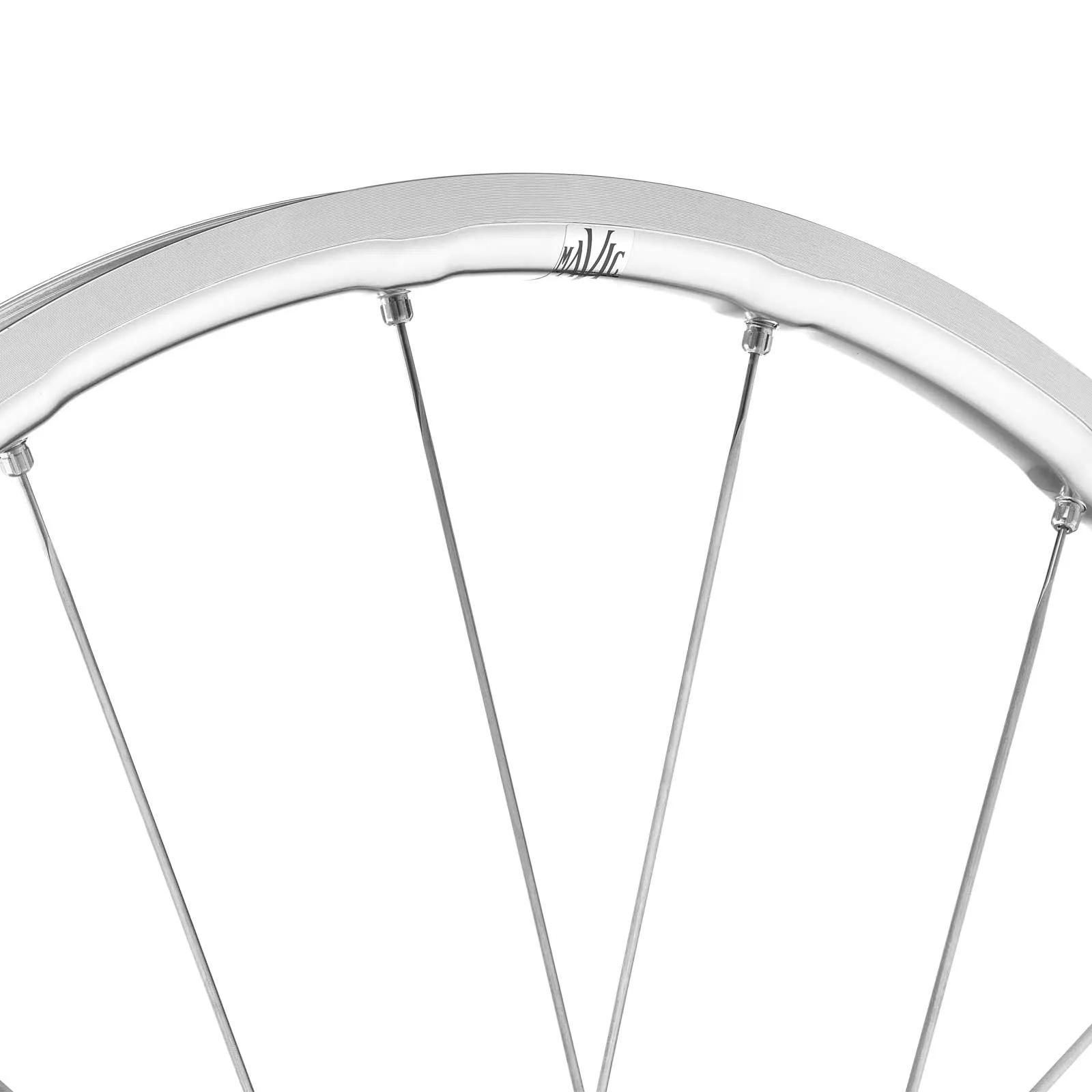

Mavic Ksyrium SL RB wheels
In silver, the Heritage Ksyrium SL for rim brakes. The extra-lightweight and sturdy aluminium wheelsets for use on road and endurance bikes with rim brakes, featuring the extra-sturdy and lightweight, non-drilled UST rims.
The Mavic Ksyrium SL UST wheelsets feature new Infinity hubs, the Instant 360 freehub system, 22 mm wider and 400 g lighter ISMD4 UST rims with a 19 mm rim depth for tyres from 25–35 mm. Thanks to the non-drilled rim bed, the new UST Force rims are particularly sturdy despite their low weight.
Included:
- Mavic Ksyrium SL Heritage RBUST front wheel, quick-release skewer, UST valve
Mavic Ksyrium SL UST wheel technology and dimensions:
- Intended use: Road, Cross, Endurance
- Clincher UST, Tubeless
- UB rims for rim brakes
- 28 inches, for folding and clincher tyres, ETRTO 622x19
- Rim width 19 mm,
- Recommended tyre widths 25–35 mm
- 24 straight, aerodynamic stainless steel spokes per wheel
- Spoke pattern: front wheel radial, rear wheel Isopulse
- Self-locking aluminium M7 spoke nipples
- Maxtal Aluminium Force rim, welded, undrilled
- Asymmetrical rim profile
- Industrial-grade QMR Auto Infinity hubs
- Infinity front hub with aluminium body, 9x100 mm quick-release mount
- ASTM CATEGORY 2: maximum recommended rider weight 120 kg
Mavic Ksyrium SL UB weights, manufacturer’s specifications:
- Front wheel: 645 grams
- Rear wheel: 835 grams
- Wheelset: 1480 grams
Mavic Ksyrium SL UST Force rims:
The new Ksyrium SL rims are genuine UST rims with a sealed rim bed. For the Force spoke nipples, the thread is milled into the rim, leaving the rim bed untouched. This makes the rim significantly more resistant to fatigue and approximately 20 per cent stiffer. A tubeless rim tape is not required. The Maxtal aluminium alloy, manufactured exclusively for Mavic, is 30 per cent stronger than 6106 aluminium. This allows Maxtal rims to be super-light yet still sturdy. Mavic’s ISM4 weight-optimisation saves every gram on the rims to reduce inertia; the rims weigh just 440 grams. Naturally with a welded rim joint
Mavic Infinity hubs:
The completely newly developed Infinity hubs are equipped with a larger 17 mm axle diameter and larger bearings. This increases the torsional stiffness of the axles by approximately 35 per cent. The tried-and-tested Mavic QRM auto industrial bearings are used in the Infinity hubs. Equipped with the Instant Drive sprocket freehub body, the ORM auto axle system and self-aligning bearings, they ensure maintenance-free operation over a long period.
Mavic Instant Drive 360 freehub body
The Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, non-contact rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two sprockets with 40-tooth profiles ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG11 version for Shimano and SRAM 8–11-speed, SRAM XDR 12-speed road bike and Campagnolo 9–12-speed ED cassettes. A rubber damper is fitted as standard, which can be removed. For those who prefer a slightly more distinctive sound.
Mavic Aero spokes:
The patented elliptical spoke shape significantly improves aerodynamics, featuring the tried-and-tested double-butted Aero spokes. Highly strong and resilient, the durability of Mavic stainless steel spokes is exceptionally high.
Mavic Tubeless System:
The new rim bed facilitates tubeless tyre fitting. The pronounced and wider grooves in the rim bed make tubeless fitting significantly easier. Mavic is thus setting the standard for simple tubeless fitting. The fitting process is no different from that of standard folding tyres. This allows the advantages of tubeless tyres – lower rolling resistance, greater riding comfort and reduced risk of punctures – to come into their own.
Of course, Mavic UST wheels can also be used with standard folding and clincher tyres and inner tubes without any issues. When out and about, we recommend carrying a standard inner tube as a quick puncture repair solution.
Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
