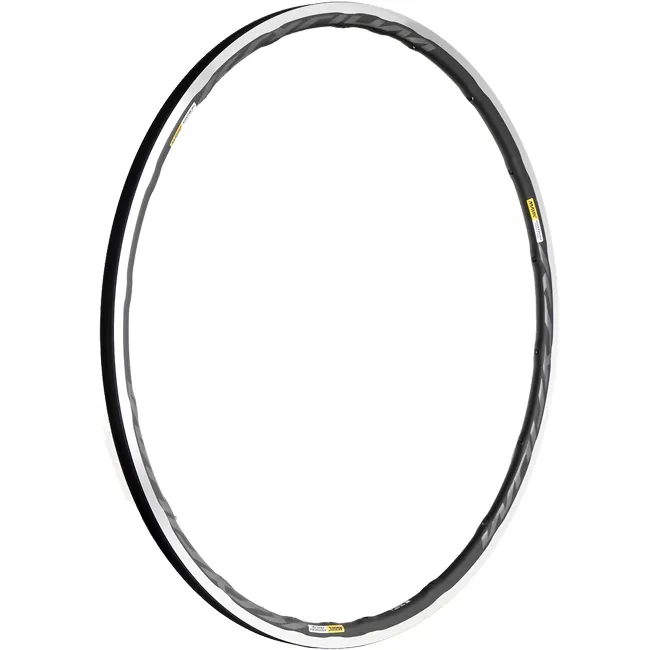

Mavic Ksyrium Pro UST replacement rim

Mavic Ksyrium Pro replacement rim Rear wheels, 2018 model. This rim is not compatible with older Ksyrium SL wheelsets.

The Mavic spoke wrench (item no. 99607901) is required for assembly

Mavic Ksyrium Pro UST replacement rim Dimensions:

• Clincher version for folding and clincher tyres
• 20-hole
• Height 25.4 mm
• Width 20.4 mm
• Spoke width 16.8 mm
• Weight 420 grams

Spare parts for Mavic Ksyrium Pro UST front wheel, 2018 model

• Item No: V2730610, Ksyrium Pro UST front wheel rim 18-hole, tubeless
• Item No: V2277701, Ksyrium Pro Aero Zircal spokes, front wheel 285.5 mm
• Item No: V2530201, Hub bearings, dimensions 10x22x6 mm, 2 pieces
• Item No: V2390401, Hub axle with washers
• Item No: V2390501, Bearing cover/frame stop, 2 pieces

Spare parts Mavic Ksyrium Pro UST rear wheel 2018 model

• Item No: V2730713, Ksyrium Pro UST rear wheel rim, 20-hole, tubeless
• Item No: 10844701, Ksyrium Pro Aero Zircal spoke, rear wheel left, 297.5 mm
• Item No: V2278101, Ksyrium Pro Aero Zircal spoke, rear wheel right, freehub side 273.5 mm
• Item No: V2560101, Hub bearings 15x26x7 mm and 17x28x7
• Item No: V2252701, Tooth disc retainer
• Part No: V2251601, Freehub body seal ID 360
• Part No: V2500501, Noise reduction ring
• Part No: V2251701, Sprockets with spring
• Part No: V3430101, Istand Drive freehub body HG11 Shimano - Sram
• Part No: V2252101, Istand Drive freehub body ED11 Campagnolo
• Item No: V2580101, Istand Drive freehub body Sram XD
• Item No: V2252201, Spacer ring 0.1 mm ID 360
• Item No: V2251501, Spring washers ID 360
• Item No: V2251201, Rear Axle ID 360
• Item No: V2250901, Left-hand bearing cap
• Item No: B4989400, Frame stop right and left 10x135 mm quick-release mounting

On request, we can repair your faulty Mavic wheel. To estimate the costs, we require as detailed a description of the fault as possible, along with the year of manufacture and the serial number of the wheel. You will find the number on the rim, beneath the barcode.
