Mavic Cosmic Pro Carbon replacement rim

The successor model to this rim is item no. LV4091900
This rim is compatible with Cosmic Pro Carbon wheelsets from the 2016 model year onwards and, unlike the previous model, has a height of 42 mm and a width of 23.8 mm.

The M4001 spoke wrench is required for assembly.

Mavic Cosmic Pro Carbon rim dimensions

• Outer rim width 23.8 mm
• Inner rim width: 17.5 mm
• Rim height: 45 mm
• Spoke holes: 20

Spare parts for Mavic Cosmic Pro Carbon front wheel, 2016 model:

• Item No. V2407510, Replacement front wheel rim, Decor white
• Item No. V2407310, replacement front wheel rim, graphite finish
• Item No. V2407910, Exalith front wheel rim (graphite finish)
• Item No. V2274501, Replacement front wheel spoke 287 mm incl. nipple
• Item No. M40078, Hub bearing Type 6901
• Item No. V25525, Front wheel axle
• Item No. 35117301, Frame stop
• Item No. 30870001, Front wheel axle Type CXR hub cover
• Item No. 35117301, Frame stop

Spare parts for Mavic Cosmic Pro Carbon rear wheel Instant Drive hub, 2016 model:

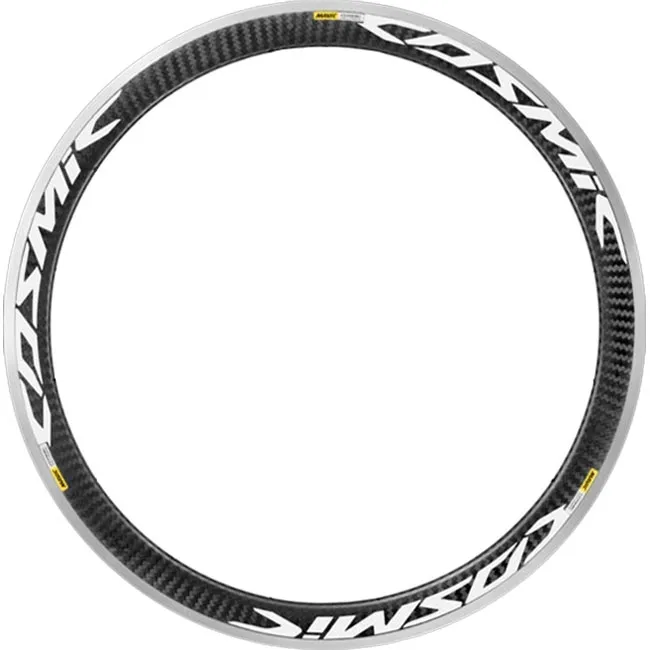

• Item No. V2407613, Replacement rim, Decor white
• Item No. V2407413, Replacement rim Decor graphite
• Item No. V2407813, Replacement rim Exalith Decor graphite
• Item No. V2274701, Replacement spoke (non-drive side) 300mm incl. nipple
• Item No. V2274601, Replacement spoke (drive side) 277mm incl. nipple
• Item No. V2560101, Hub bearings 15x26x7 mm and 17x28x7
• Item No. V2252701, Sprocket retainer
• Item No. V2251601, freewheel body seal ID 360
• Part No. V2500501, Noise reduction ring
• Part No. V2251701, sprockets with spring
• Part No. V2252001, Istand Drive freehub body HG11 Shimano - Sram
• Item No. V2252101, Istand Drive freehub body ED11 Campagnolo
• Item No. V2580101, Istand Drive freehub body Sram XD
• Item No. V2252201, Spacer ring 0.1 mm ID 360
• Item No. V2251501, Spring washers ID 360
• Item No. V2251201, Rear Axle ID 360
• Item No. V2250901, Left-hand bearing cap
• Part No. B4989400, Frame stop, right and left
