Spare part: Mavic road bike disc hub

Bearings for Mavic road bike rear disc hubs with Instant Drive freehub body from 2016 model onwards

Scope of delivery No. 5 of the exploded view

Mavic front disc hub spare parts from model year 2016 onwards:

• No. 4: 99688601, BEARING KIT 9/15 DCL HUB
• No. 5: V2252401, MY16 FRONT AXLE ROAD DISC 9/12/15 CENTER LOCK
• No. 6: B4104301, 9x100mm Front Road Axle Adapters 16
• No. 7: B4104201, 12x100mm Front Road Axle Adapters 16
• No. 8: B4104401, 15x100mm Front Road Axle Adapters 16
• No. 10: 99688501, BEARING KIT 9/15 D6T HUB
• No. 11: V2252301, MY16 FRONT AXLE ROAD DISC 9/12/15 INT

Mavic Instant Drive 360 QRM Plus Rear Disc Hub Spare Parts:

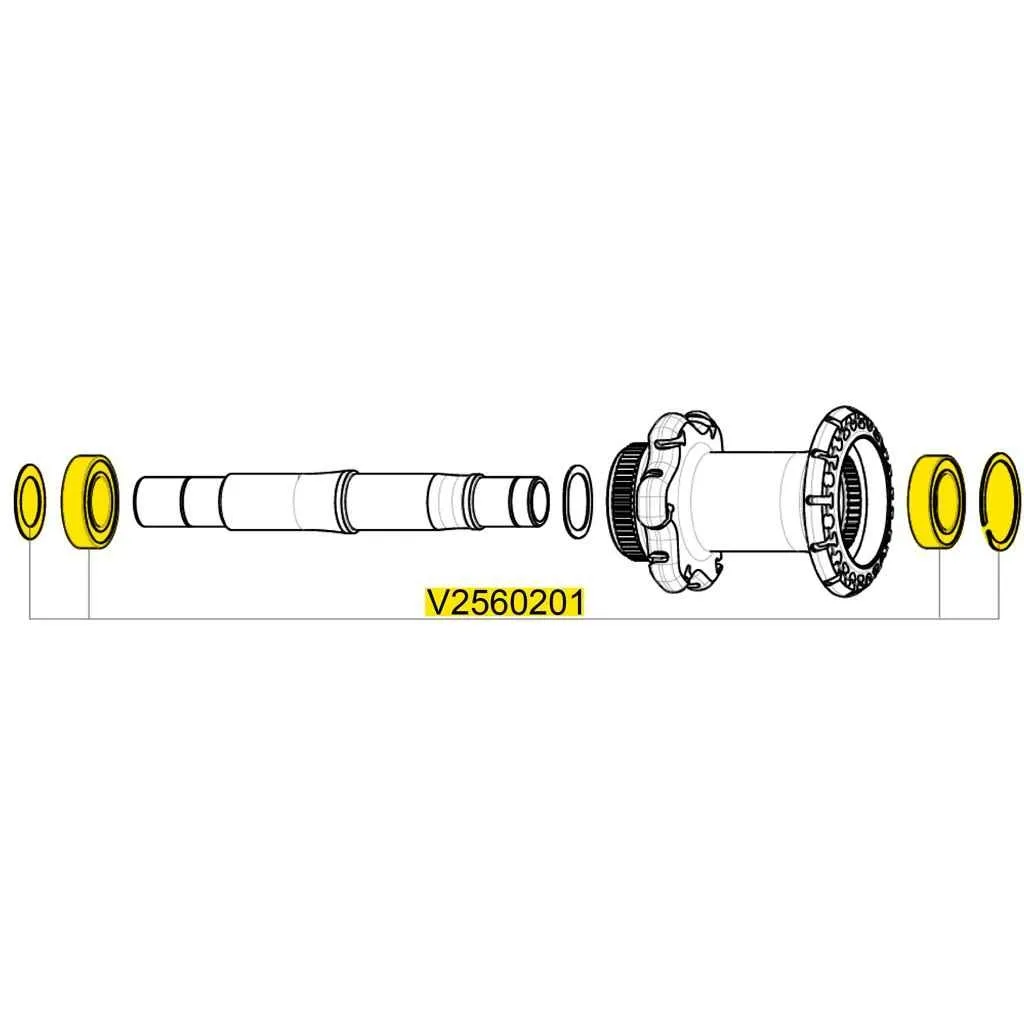

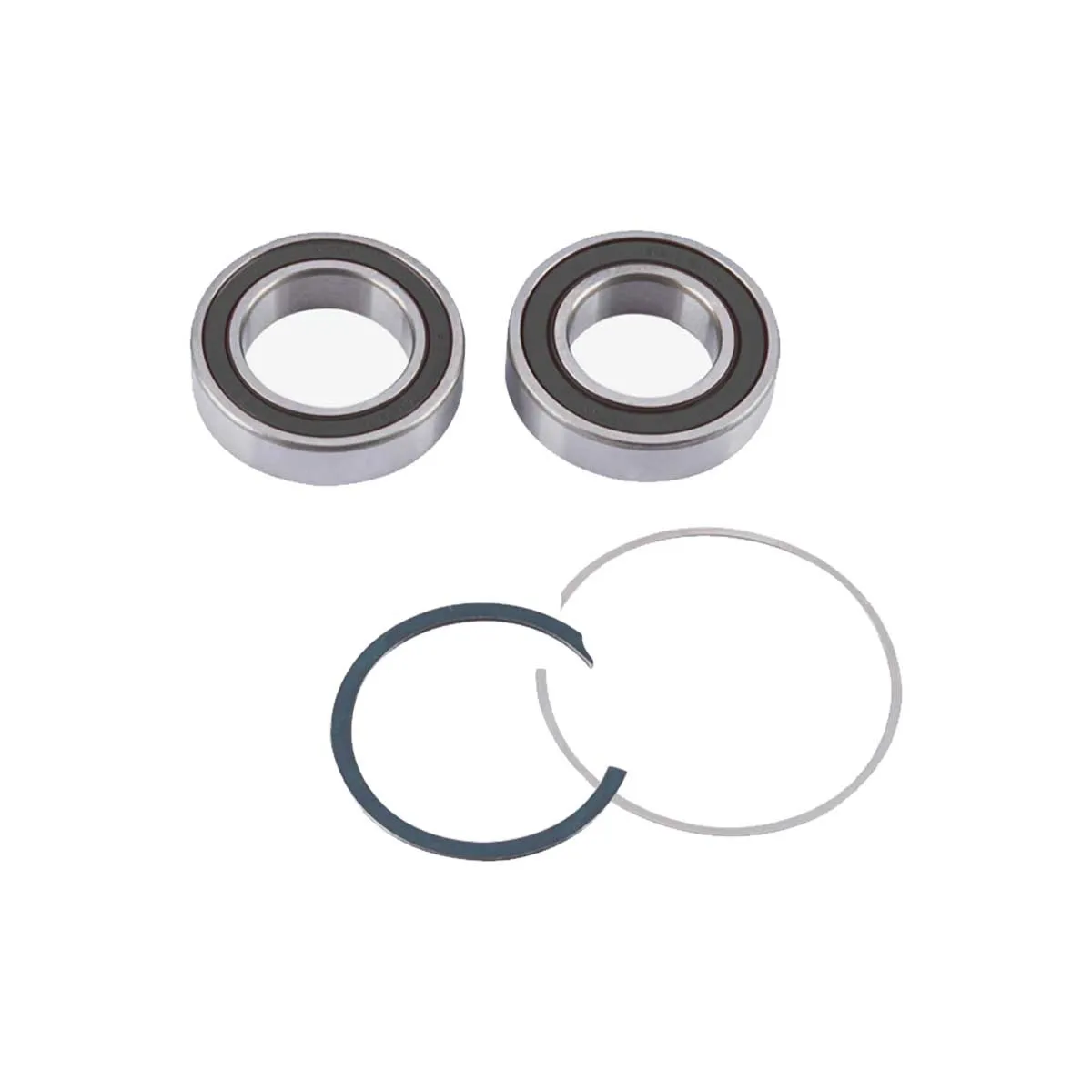

• Item No: V2560201, ID360 Hub Bearing, Dimensions 17x28x7mm and 15x28x7mm
• Part No: V2540410, ID360 Ceramic Hub Bearings, dimensions 17x28x7 and 15x28x7
• Item No: V2251701, ID360 sprockets (2 pieces) with spring and pad for noise reduction
• Item No: V2251801, ID360 toothed discs spring
• Item No: V2252601, Freewheel body seal
• Item No: V2252001, ID360 toothed discs, freehub body HG11
• Item No: V2252101, ID360 sprockets freehub body ED11
• Part No: V2580101, ID360 toothed disc freewheel body Sram XD
• Part No: V2252201, Spacer ring for 9- and 10-speed cassettes
• Item No: V2251501, Spacer disc for axle
• Item No: V2251401, ID360 rear axle with splined disc hub, Centerlock
• Item No: V2251301, ID360 rear axle with splined disc 6-bolt
• Item No: V2251101, Left bearing cap for Centerlock hubs
• Item No: V2251001, Left bearing cap for Disc 6-hole hubs
• Item No: B4989801, End stops 10x135mm quick-release mount, Disc Centerlock
• Item No: B4989901, End stops 12x142 mm thru-axle mount, Disc Centerlock
• Item No: B4989401, End stops 10x135mm quick-release mount, Disc 6-hole
• Item No: B4989601, End stops 12x142 mm thru-axle mount, Disc 6-hole
• Item No: B4989501, End stops 12x135 mm thru-axle fitting, Disc 6-hole and Centerlock

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
