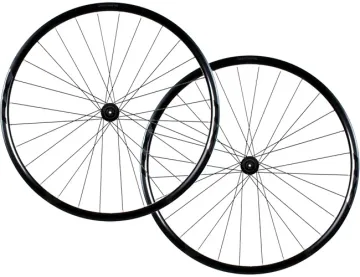

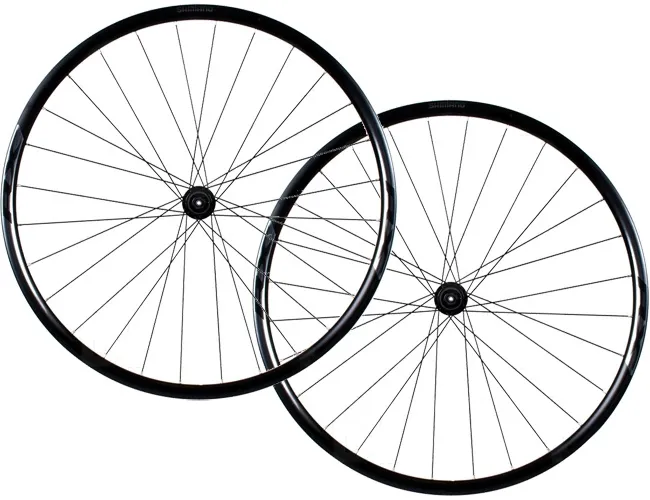

Shimano WH-RX010 wheelset

The perfect blend of technology and attractive design: the WH-RX05. A Centre Lock-compatible disc brake wheelset for road bikes and cyclocross bikes in proven Shimano quality.

Sturdy alloy rim with a 24mm profile, 28 stainless steel spokes at the front and rear, black rim and spokes, and a Centre Lock brake disc mount. Shimano also uses exclusively bearings with angled ball races in the WH-RX010 wheelsets. These have the advantage of withstanding lateral forces. The asymmetrical rim increases the rear wheel’s load-bearing capacity and allows for a less steep angle of the drive-side spokes, resulting in more even spoke tension. This makes the wheel significantly more stable.

Shimano WH-RX010 wheels Technical specifications:

• 28 inches, ETRTO 622-15C
• Application
• 9-11-speed Shimano and SRAM cassettes
• Rim Carbon/aluminium
• 24 mm tubeless rim
• 28 spokes on the front wheel, 28 on the rear wheel
• Aerodynamic stainless steel flat spokes
• Centerlock brake disc mount
• Tyre type: folding tyres
• Mounting width: front 100 mm, rear 135 mm
• Asymmetrical spoke lacing in the rim
• Aluminium rear axle
• Aluminium freehub body for Shimano and SRAM 8-, 9-, 10- and 11-speed cassettes
• Weight approx. set 2159 grams, front wheel 982 grams, rear wheel 1177 grams

Included in delivery: Shimano WH-RX010 front and rear wheels, UST, incl. quick-release skewers, rim tape, 1.85mm spacer ring for 10-speed,
