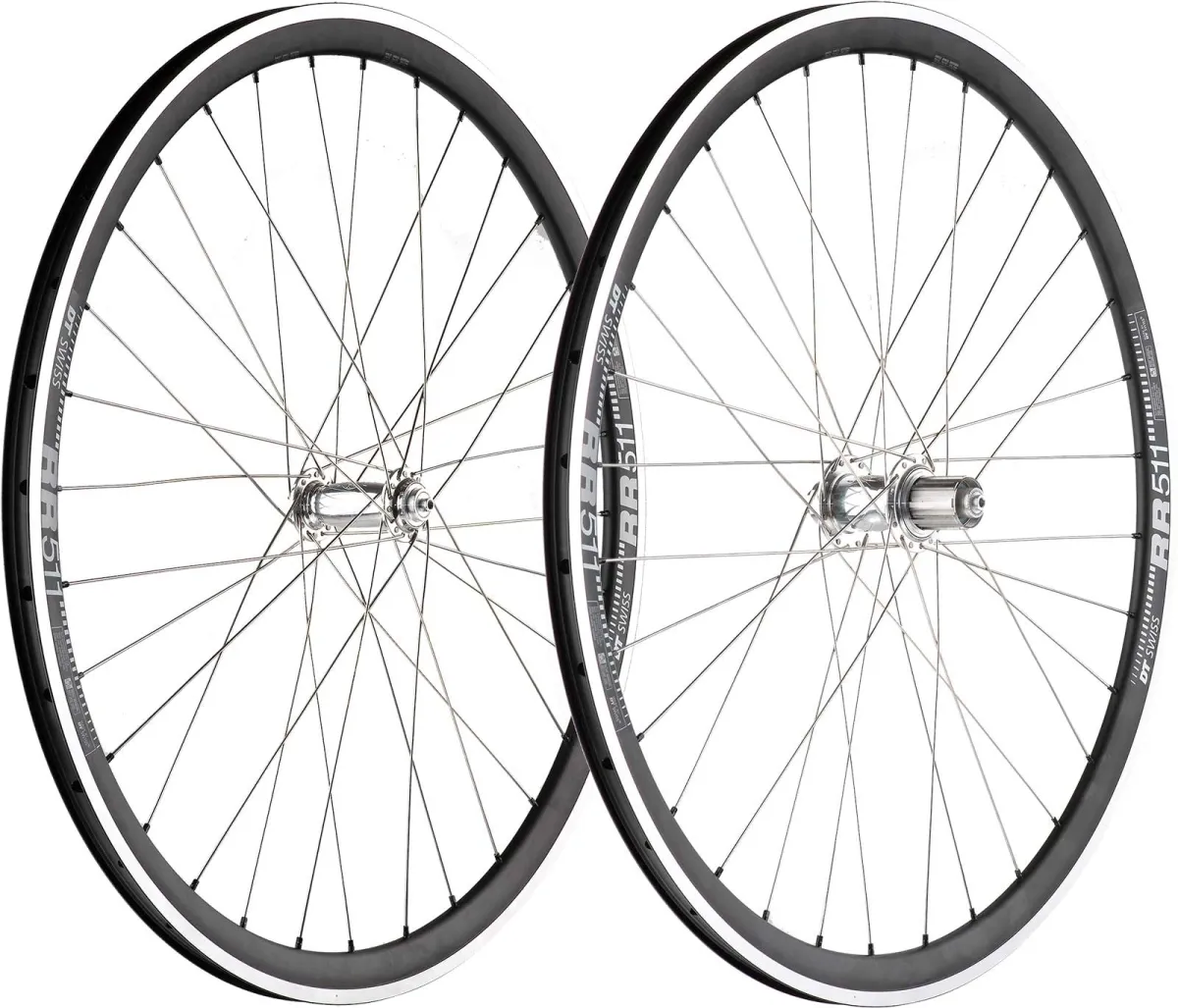

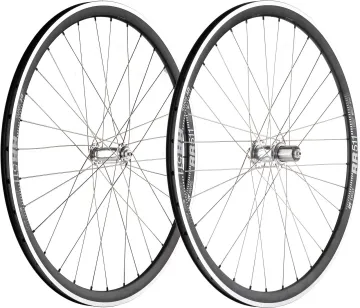

DT Swiss 350 Classic plus RR 511 Rim Brake wheelset

The high-end wheelset for road bikes with rim brakes. Aerodynamic and stable at approx. 1900 grams, suitable for tyres 19–35 mm wide. The White Industries M15 hub series

We offer wheelsets with freehub bodies for Shimano/SRAM HG11, Campagnolo ED and SRAM XDR cassettes. White Industries wheels are designed for classic quick-release mounting with 9x100mm and 10x130mm or 10x135mm mounting dimensions.

Wheel building at TNC-Hamburg:

We manufacture these wheels entirely by hand for you. Thanks to more than 30 years of experience in wheel building, we extract the optimum in concentricity, durability and stiffness from the material. These wheels are, of course, tested multiple times for truing, and we also pre-tension the spokes in the longitudinal direction. This eliminates the need for re-centring over a long period of time.

These wheels are made to order for you, so we cannot offer a right of return for them. These wheels are not eligible for a discount

Included in delivery:

• Front wheel laced and trued for you in our workshop, with White Industries M15 hub, DT Swiss spokes, DT Swiss Squorx nipples as selected, DT Swiss RR 511 rim, without rim tape and quick-release skewer
• Rear wheel laced and trued for you in our workshop, with White Industries M15 hub, freehub body, DT Swiss spokes and DT Swiss Squorx nipples as selected, DT Swiss RR 511 rim, laced and trued, without rim tape and quick-release

Please feel free to enquire about other wheel configurations. We will then send you a quote.

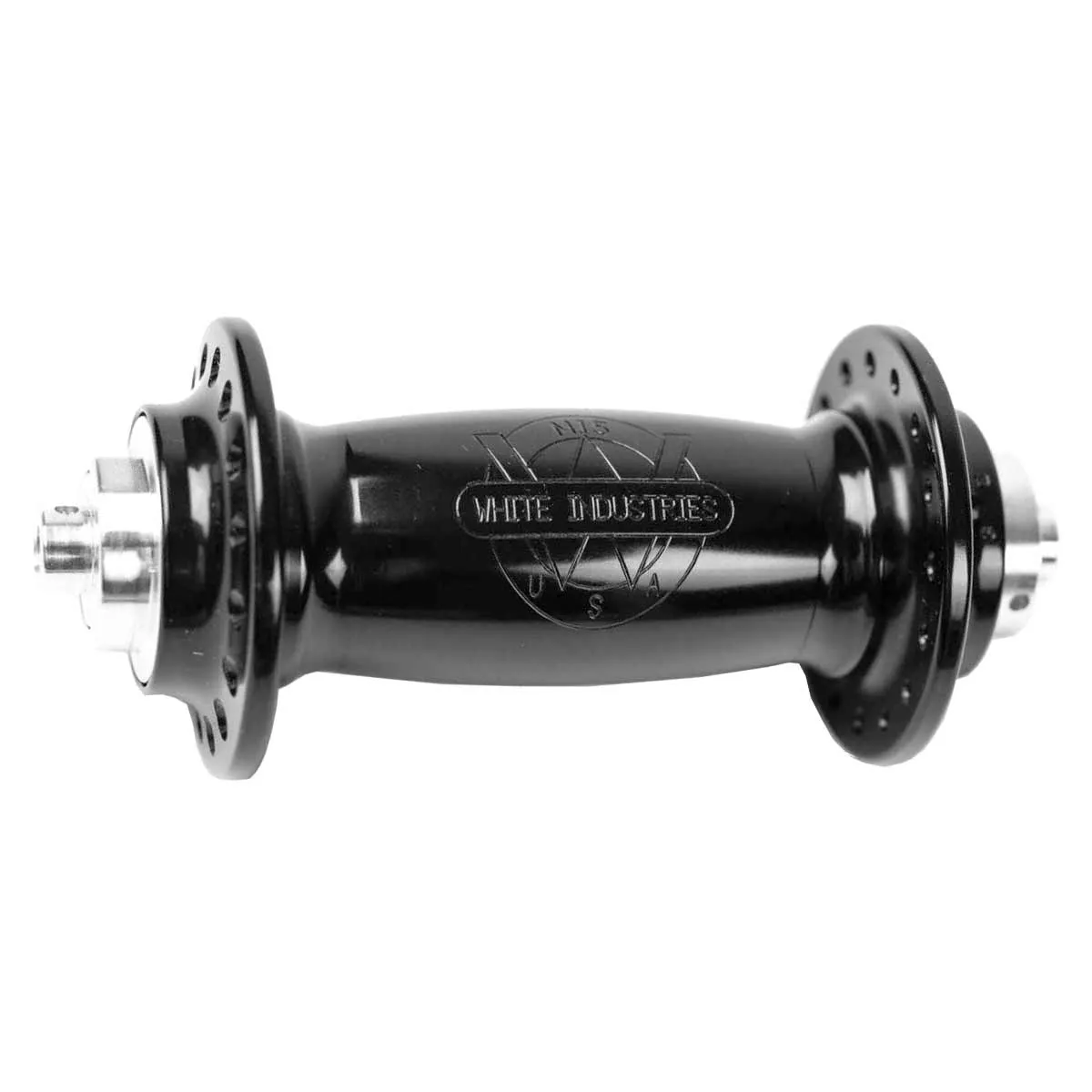

White Industries M15 rim brakes, front hub, specifications and dimensions:

• Application: Road, Cyclocross, Touring, MTB
• Brake type: Rim brake
• Hub material: Aluminium 6061-T6
• Bearings: 2 x 17287 Enduro radial bearings made of carbon steel with seal type 61902
• Bearing adjustment with Allen key
• Spoke type: J-bend
• Pitch diameter left/right: 38.5/38.5 mm
• Flange spacing left/right: 36 mm/36 mm
• Spoke hole diameter: 2.6 mm
• Mounting width: 9x100 mm quick-release mounting
• Weight: 122 grams (manufacturer’s specification)

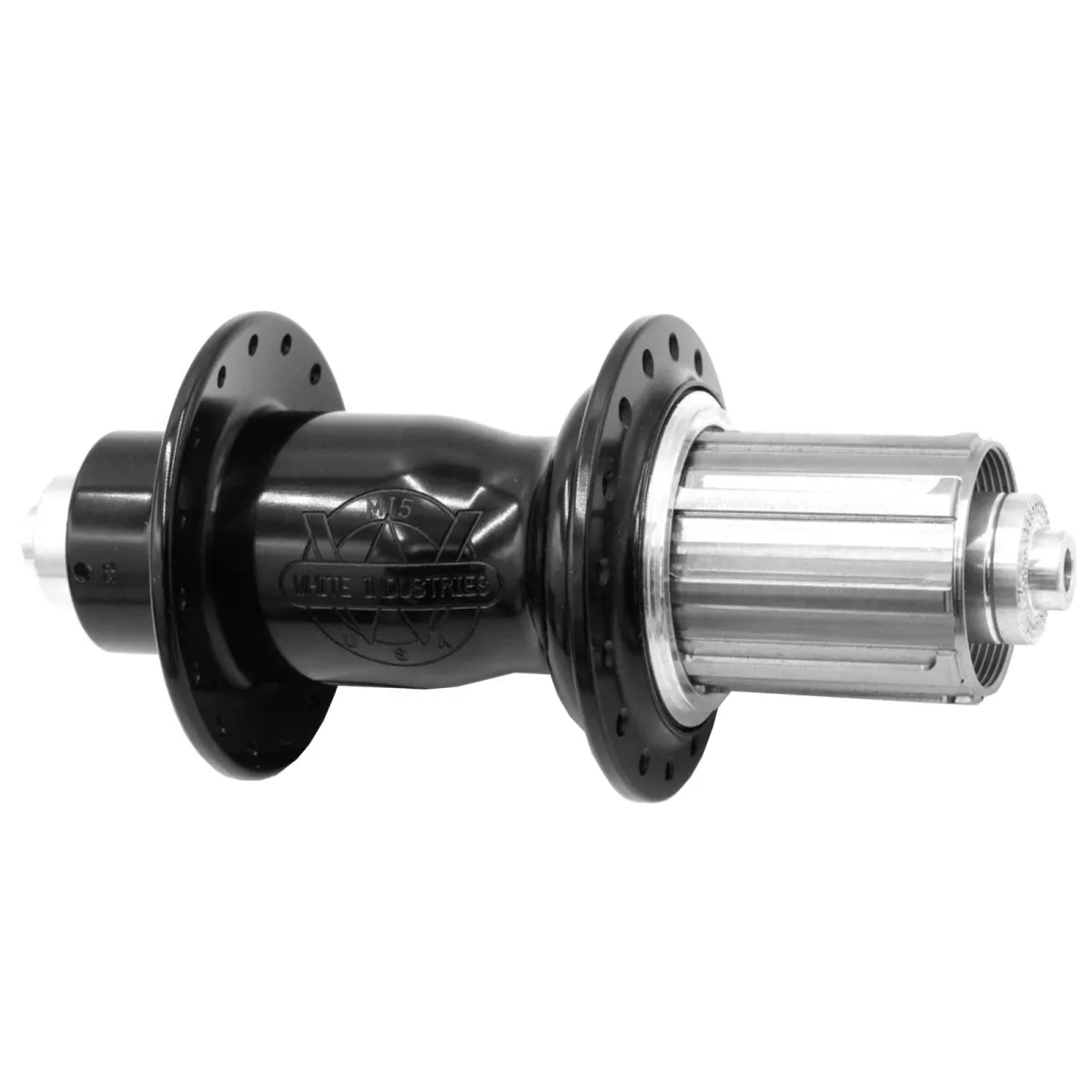

White Industries M15 rim brakes rear hub Specifications and dimensions:

• Intended use: MTB, Trail, Gravel, Cyclo-Cross
• Brake type: Rim brake
• Hub material: Aluminium 6061-T6
• Bearings: 2 x 17287-2rs Enduro radial bearings made of carbon steel with seal type 61902
• Bearing adjustment with Allen key
• Heat-treated and black-anodised 4130 steel axle with aluminium axle ends
• Heat-treated 48-tooth steel drive ring, which is screwed into the hub shell.
• 48 teeth (7.5 degrees) freewheel engagement
• 3 heat-treated steel freewheel pawls with stainless steel leaf springs.
• Spoke type: J-bend
• Pitch diameter left/right: 55/55 mm
• Flange spacing left/right: 38 mm/19 mm
• Spoke hole diameter: 2.5 mm
• Mounting width: 10x130 mm, 10 x 135 mm quick-release mounting
• 6-speed 4-pin titanium freehub body:
  • Shimano HG11 freehub compatible with Shimano MTB 8-11-speed, Sram PG MTB 8-11-speed and Shimano Road 9-12-speed cassettes

DT Swiss RR 511 UB rim specifications:

• Recommended for riders up to 110 kg
• 28 inches, 700C
• ETRTO: 622 x 18 mm
• Aluminium rim
• SBTW welded joint

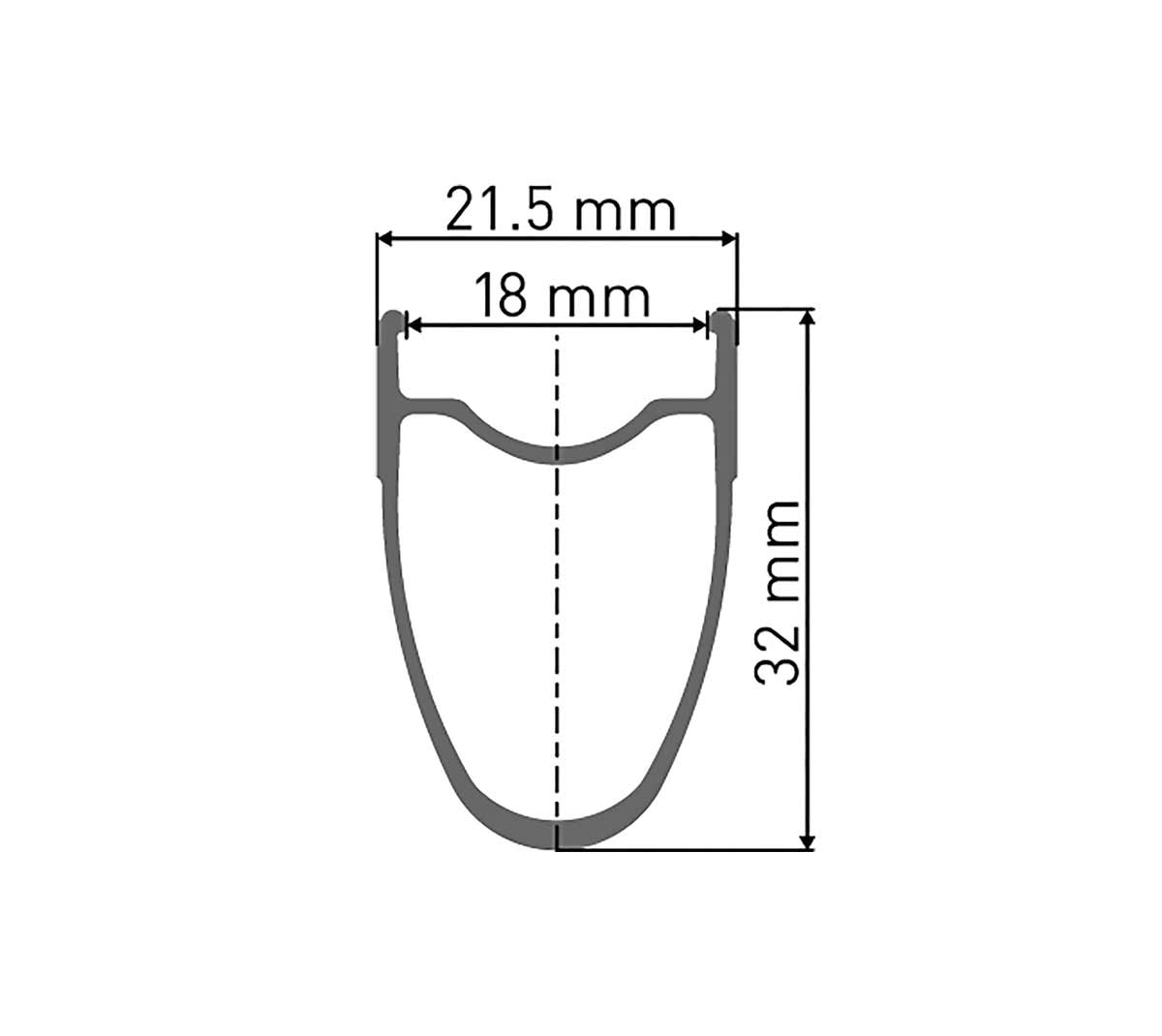

• Width 21.5 mm, height 32 mm
• Maximum tyre width 21–42 mm
• CNC-machined brake flanges
• Rim tape: 622 x 18 mm
• Weight 530 grams
• Recommended by DT Swiss for a system weight of up to 130 kg

White Industries M5 hubs:

Like all White Industries hubs, the M15 hub is based on over 30 years of experience in hub manufacturing and practical testing, starting with the Ti Cassette Hub, which was introduced in 1992. White Industries, the long-established manufacturer of bicycle components, has been building bicycle hubs since the 1990s – simple, durable and reliable. The Mi5 is the direct descendant of these hubs from the 90s and, thanks to its low weight and clean, minimalist look, is the perfect choice for road bikes and gravel bikes with rim brakes; however, due to its robust and durable construction, it is equally at home on mountain bikes and touring bikes. At the heart of the Mi5 rear hub is a heat-treated, black-anodised 4130 steel axle with aluminium end caps, which rotates on four Enduro bearings: two in the 6061-T6 aluminium hub shell and two in the 6/4 titanium freehub body. The Mi5 is manufactured here at the White Industries factory in Petaluma, California, USA.

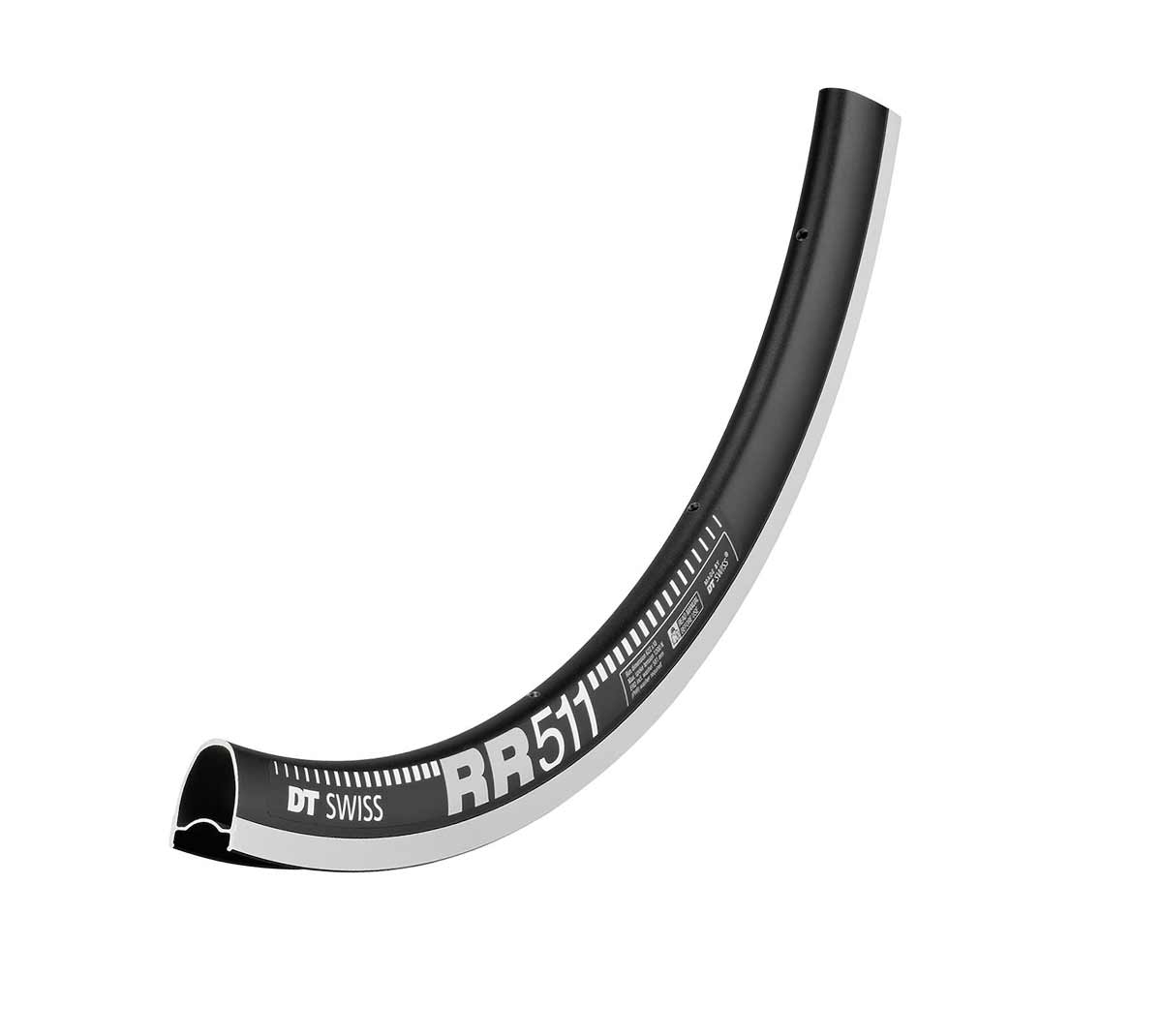

DT Swiss RR 511 rim

The RR 511 road and cyclocross rim from DT Swiss for aerodynamic wheelsets. Very stable thanks to a high-strength aluminium alloy and a 21.5 mm rim width. With clean workmanship, a welded joint, CNC-machined sidewalls and a 32 mm deep rim bed, the DT Swiss RR 511 offers the ideal rim for building lightweight and aerodynamic wheelsets. Thanks to its high profile, the DT Swiss RR 511 rims are sturdy enough to build a stable and durable wheelset even with a low spoke count.

The DT Swiss RR 511 rims are high-end rims with a special spoke nipple mount and are supplied with special DT Squorx Pro Head nipples and PHR washers; they must only be laced using these nipples. Furthermore, the DT RR 511 rims are tubeless-ready.

DT Competition spokes:

These double cold-forged spokes are made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheelsets. We recommend these spokes for virtually all wheelsets. Extremely durable and sufficiently lightweight, the DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered middle section, the spokes absorb movements in the wheel exceptionally well, without compromising on lateral stiffness or durability. Weight with nipple approx. 7 grams

DT Swiss Aero Comp spokes:

Designed for stable, laterally stiff yet aerodynamic wheelsets, the DT Swiss Aero Comp spoke in the straight-pull version is first cold-forged in the middle section, making it lighter and stronger. In a further complex process, it is flat-forged to optimise aerodynamic properties whilst simultaneously increasing material strength. The DT Aero Comp guarantees a balanced combination of stiffness, aerodynamics and durability.

DT Swiss Aero Lite spokes:

The DT Swiss Aerolite spoke is flatter and lighter than any other; the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. Thanks to the 0.9 x 2.3 mm aerodynamic mid-section, this spoke can be fitted to all standard hubs. The Cold Forging Technology (CFT) developed by DT Swiss makes the reduced and forged DT Aerolite the lightest stainless steel spoke and gives it excellent mechanical properties. Particularly suitable for super-light and fast road or cross-country wheelsets. 64 DT Aerolite spokes weigh an incredible 278 g at a length of 264 mm. Weight per spoke at a length of 264 mm: 4.31 grams.

DT Swiss Revolite spokes:

The DT Revolite is the ideal choice for riders looking for a spoke that combines durability, low weight and aerodynamics. With a 2.3x1.3 mm cross-section in the middle section of the spokes, these offer excellent aerodynamics. Through several rounds of development, their innovative shape has been optimised to outperform all other DT Swiss MTB spokes in their weight class in terms of durability. This has been achieved through the unique blading process, which achieves additional densification of the material, and a patent-pending process that ensures a uniform transition from the tapered to the forged section of the spoke. Weighing just approx. 4.5 grams at a length of 264 mm per spoke, the Revolite is also exceptionally light.

DT Squorx spoke nipples:

The DT Swiss Squorx Pro Head nipple combines ease of installation with light weight thanks to the DT Pro Head shape, combined with an additional Torx and square tool socket. The Torx socket provides a larger contact area during wheel building, ensuring that the force from the tool is better distributed across the nipple. The spherical contact area within the rim guarantees perfect alignment with the spoke.
