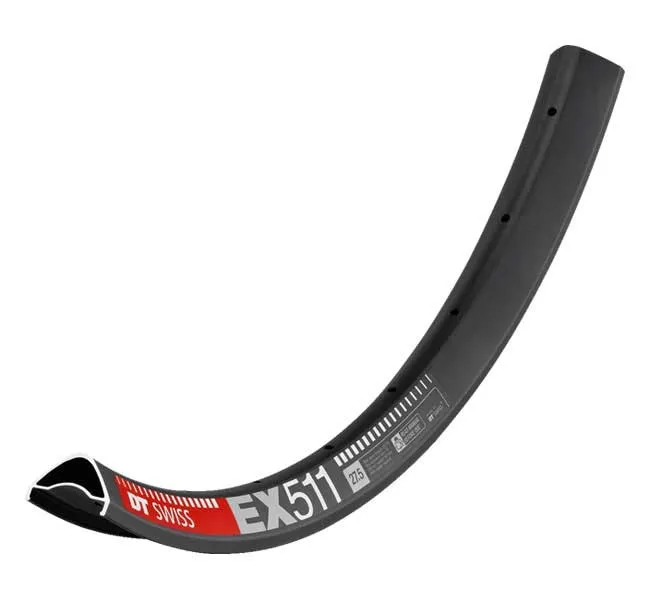

DT Swiss EX 511 rim

The 35 mm wide Enduro rim from DT Swiss, the EX 511. Designed for wide Enduro tyres, the DT EX 511 rim offers very high stability whilst weighing just 570 grams.

Included in delivery:

DT EX 511 rim, Squorx Pro Head nipples, PHR washers

DT Swiss EX 511 Disc 29-inch rim specifications:

• ETRTO: 622 x 30, 29-inch
• ERD: 601 mm
• Aluminium rim, single-spoke
• Width: 30 mm (internal), 35 mm (external) Height: 21 mm
• Max. recommended tyre width: 2.8
• SBTW welded joint
• Valve hole 6.5 mm
• Tubeless ready
• Required tubeless rim tape: 32 mm
• Weight 570 grams including Squorx Pro nipples
• Recommended for a system weight of up to 130 kg
• ASTM classification: 4

Thanks to extensive FEM analyses, DT Swiss EX 511 rims feature material only where it is actually needed. These rims are supplied with special DT Squorx Pro Head nipples and PHR washers and must only be laced using these nipples. With the wide EX 511 rim, DT Swiss offers a rim for stable and enduro wheelsets with really wide tyres. Cleanly finished, with a welded bead and stainless steel eyelets, the DT offers high stability at a low weight

The DT Swiss EX 511 rims are equipped with rim flanges adapted for tubeless tape and can be easily upgraded to lightweight tubeless rims using DT Swiss tubeless tape

Your dream wheelset with the DT Swiss EX 511 rim.

Ask us for a personalised quote. We will build your dream wheelset, perfectly hand-laced. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
