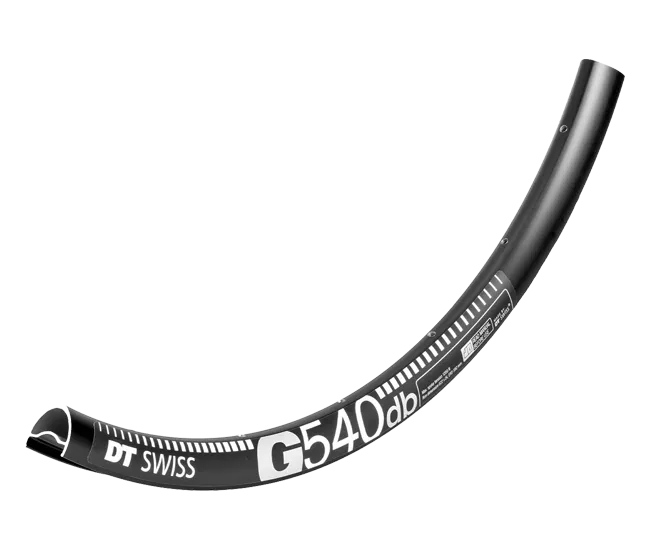

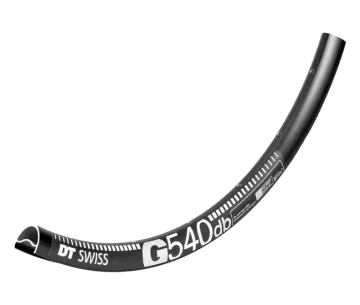

27.5-inch Cross Road / Gravel Rim DT Swiss G 540 DB

The sturdy and affordable DT Swiss G 540 DB gravel rim with a 24 mm rim width for use on forest and country tracks and off-road. Designed for tyre widths up to 53 mm, the G 540 rim offers high strength and low weight. Well-finished, the DT Swiss G 540 offers excellent value for money. Recommended for riders/systems up to 130 kg. The reliable rim for use and thousands of worry-free kilometres on all trails and off-road. The G 540 rim has been developed precisely for this purpose and delivers unbeatable value for money.

DT Swiss Sleeve Joint Technology:

The rim’s stability is ensured by the Sleeve Joint process, which is the best alternative to welding. This involves inserting the rim using a moulded part that is pressed evenly into the profile. This creates a stable and highly durable joint.

DT Swiss tubeless-ready rim:

The profiles of DT Swiss tubeless-ready rims are specially designed for tubeless use. They guarantee a perfect fit and make tyre installation as easy as possible. Nevertheless, it is always possible to use a conventional tyre and inner tube combination. DT Swiss tubeless-ready rims offer further advantages over conventional rims. Thanks to the design of their cross-section, the tyre simply pops into place when inflated, meaning that in most cases only a standard floor pump is required. The sophisticated profile of DT Swiss rims also ensures a precise and secure fit for the tyre, even under tough riding conditions.

DT Swiss G 540 DB Rim Technology:

• Application: Cross Road, Gravel
• Suitable for use with disc brakes only
• 27.5 inches, 650B
• ETRTO 584 x 24
• ERD 554 mm
• Material: Aluminium EN AW-6061 T6
• Width 28 mm, height 25 mm, rim width 24 mm
• Recommended tyre widths 30–53 mm
• Tubeless Ready
• Recommended tubeless rim tape 27 mm
• Recommended tubeless valve 25 mm
• Valve hole 6.5 mm
• Weight 565 grams
• Max. system weight 130 kg
• ASTM classification 2

Your custom wheel with the DT Swiss G 540 DB rim.

Ask us for a bespoke quote. We will build your dream wheel, perfectly hand-laced. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
