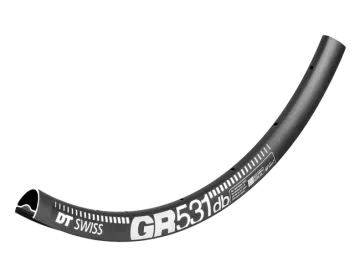

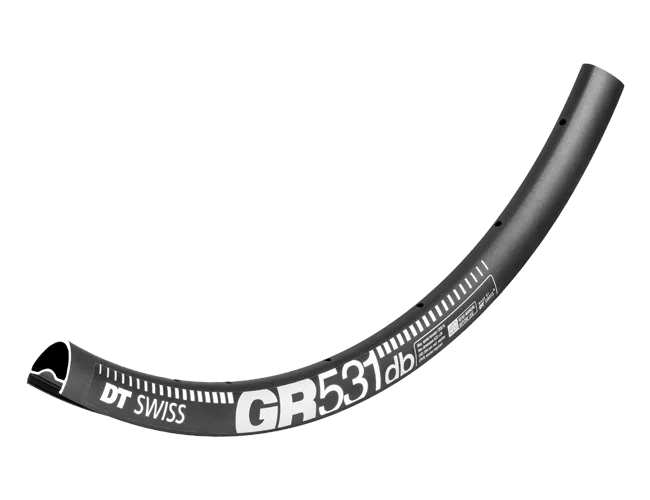

DT Swiss GR 531 DB rim

The high-end gravel rim, the DT Swiss GR 531 DB, designed for off-road use, made from 500 grams of high-strength aluminium, very sturdy and, with a 24 mm rim width, perfect for wide tyres. With a 24 mm rim width, the DT Swiss GR 531 DB rim is designed for tyre sizes ranging from 30 to 53 mm. Cleanly finished, with a welded joint, CNC-machined sidewalls and a 25 mm high rim bed, the DT Swiss GR 531 offers the ideal rim for building very stable yet lightweight wheelsets.

The DT Swiss GR 531 DB rims are high-end rims featuring a special spoke nipple mount and are supplied with special DT Squorx Pro Head nipples in silver and PHR washers; they must only be laced using the PHR washers. Furthermore, the DT RR 481 rims are tubeless-ready.

DT Swiss Squorx Pro Head nipples with PHR washers:

The DT Squorx Pro Head nipple combines ease of installation, light weight and optimal performance in a single product. The Torx head makes lacing flat spokes a breeze. The spherical contact surface ensures perfect alignment with the spoke, whilst the square section allows for easy re-centring using standard tools whilst the tyre is fitted. With these rims, the Squorx nipples are included in the scope of delivery, along with the PHR washer, which is fitted between the nipple and the rim bed. This ensures even pressure distribution and long-lasting durability

DT Swiss GR 531 DB Rims Technology:

• Application: Crossroad, Gravel, Cross and Touring
• ASTM classification 2
• 28 inches, 700C

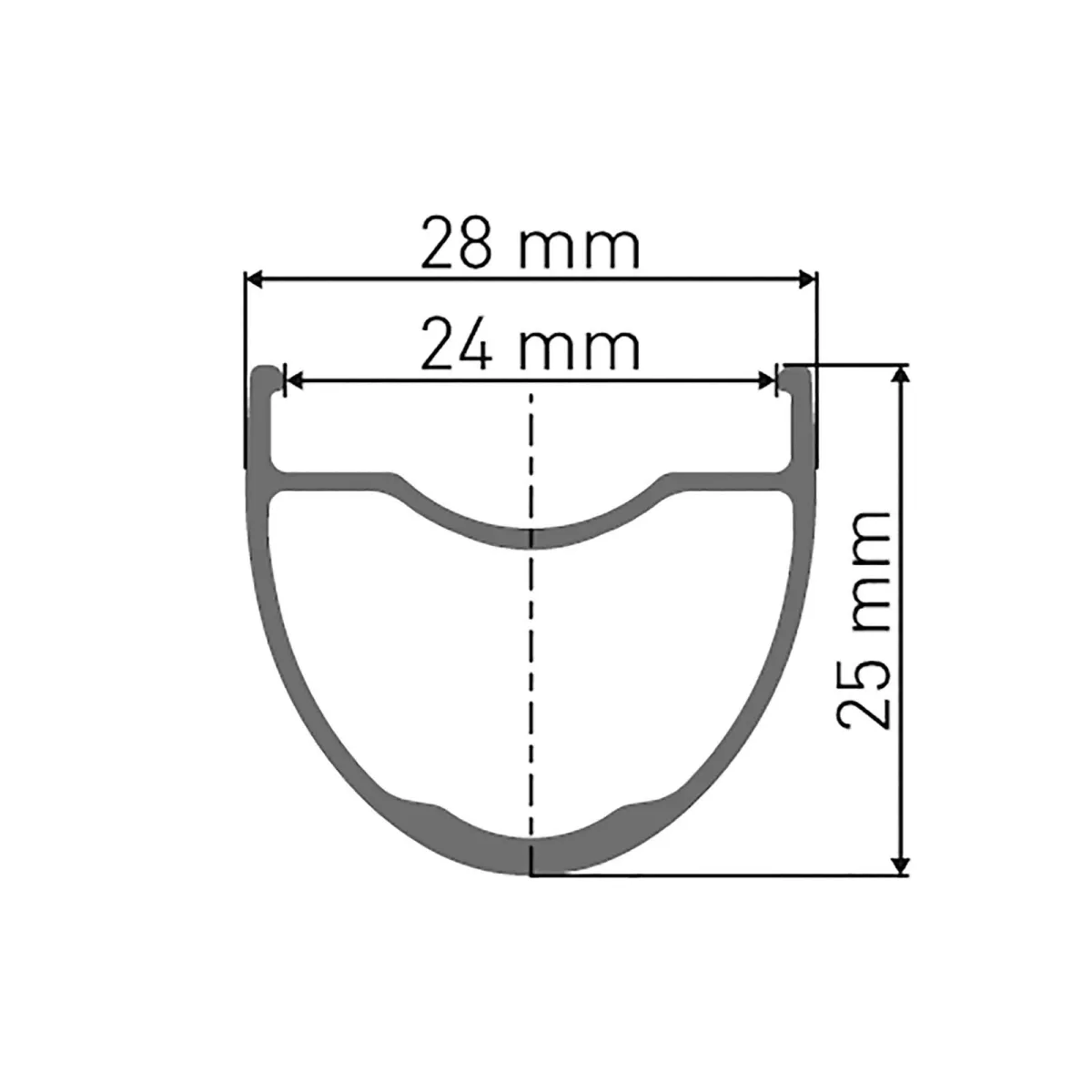

• Width: outer 28 mm, inner 24 mm, height 25 mm
• ETRTO: 622 x 24 mm
• ERD 584 mm
• Aluminium rim
• SBTW welded joint
• Maximum tyre width: 30–53 mm
• Recommended tubeless rim tape: 622 x 27 mm
• Recommended tubeless valve: 32 mm
• Weight 535 grams (manufacturer’s specification)
• Recommended for riders up to 130 kg

Scope of delivery DT Swiss GR 531 DB:

DT GR 531 DB rim, Squorx Pro Head aluminium nipples (silver), PHR washers

Your custom wheel set with the DT Swiss GR 531 DB rim.

Ask us for a personalised quote. We will build your dream wheelset, perfectly hand-laced. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheelsets – these spokes have proven themselves to be by far the most durable.
