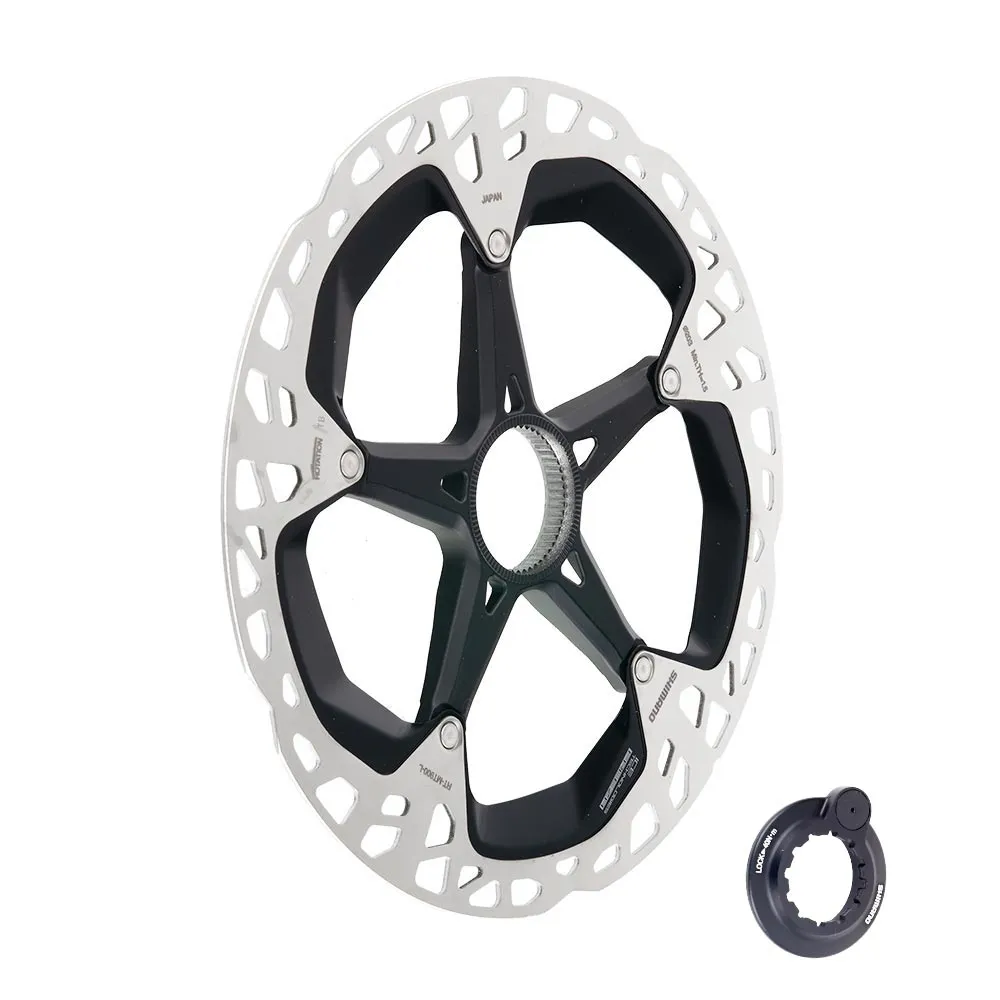

Shimano SMMT900 Centerlock brake disc

The RT MT900 brake discs are classified by Shimano as part of the XTR and Saint series, but can of course also be used with other Shimano disc brakes. The brake discs feature an integrated magnet in the locking ring

The Shimano RTMT900 Ice Tech Freeza brake discs with additional cooling fins. The Centerlock brake discs on the aluminium carrier are manufactured using a sandwich construction. The aluminium core is encased by the steel braking surface. This significantly reduces heat build-up and increases the durability of all Shimano brakes.

Shimano Ice Tech Freeza:

Freeza brake discs exhibit even less fading due to lower heat build-up compared to standard Shimano Ice Tech brake discs. The three-layer sandwich construction consists of stainless steel flanges and an aluminium core with integrated cooling fins. The two-piece design with the aluminium carrier dissipates heat effectively. The dirt-repellent design extends the service life of both the disc and the pads.

This Ice Tech brake disc is compatible with all Shimano hydraulic disc brakes.

Internal locking ring:

This lockring, featuring internal teeth for the tool, can be fitted to hubs with 12 mm thru-axles or quick-release mounts. Additionally, a magnet is housed within the lockring for speed detection, e.g. for Shimano Steps drivetrains.

Shimano SM RTMT900 Ice Tech Brake Disc Technical Specifications:;

• Disc diameter 203 mm
• Weight: Disc approx. 150 grams
• Centerlock mounting
• Includes internal lockring with magnet
• Compatible with all Shimano hydraulic disc brakes

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
