Campagnolo Bora Ultra WTO 35 Disc wheelset

The super-light wheels for hill climbs, criteriums and marathons, weighing just 1370 grams and exceptionally stable. Thanks to a 23 mm rim width, they are suitable for road, endurance and gravel use.

Included in delivery:

• Campa Bora Ultra WTO 35 DB C23, front wheel Disc Centerlock, tubeless valve, valve extension

Campagnolo Bora WTO 35 C23 Disc Centerlock wheel technology and dimensions:

• 28 inches, ETRTO 622x23/ 700C
• Applications: Road, Endurance, Cross, Gravel
• Full carbon rims, clincher for folding and clincher tyres, tubeless ready
• Rim type: Hooked / Crotchet tubeless TC
• H.U.L.C. Handmade Ultra-Light Carbon rims
• Number of spokes: 24 front and rear
• Rim width 28.4 mm, rim height 35 mm, rim depth 23 mm
• USB ceramic bearings
• Front wheel 12x100 mm thru-axle assembly
• Recommended tyre widths: 28–50 mm
• Weight: Set: 1370 grams, manufacturer’s specification

385 grams, 35 mm rim height, elliptical wind tunnel-optimised rim shape, ceramic bearings – the high-end Campagnolo Bora WTO wheelsets with a wide range of applications. The new Bora WTO wheelsets feature medium-high aerodynamic rims and, as always with Campagnolo wheels, are very light and very stable. The non-drilled 2-Way Fit rims are tubeless-ready.

Climbers will love the low weight of the Bora WTO 35, which helps them tackle climbs even faster, change pace instantly and descend very quickly and safely. The rims, handcrafted by Campagnolo from ultra-lightweight HULC carbon, feature a high-gloss Luxury finish, C-LUX, and non-drilled 2-Way Fit rim channels for perfect tyre compatibility without the need for rim tape.

The beautifully shaped VR hub body is hourglass-shaped to improve aerodynamics and is securely attached to an aluminium flange. Integrated spoke seats ensure perfect alignment, while elliptical, tapered aero spokes with G3 lacing further enhance performance, and USB ceramic bearings promise a virtually frictionless ride.

The Bora WT0 wheelsets are assembled entirely by hand by a Campagnolo specialist and 100 per cent tested using electronically controlled instruments. This process ensures maximum performance and reliability for all Campagnolo wheelsets

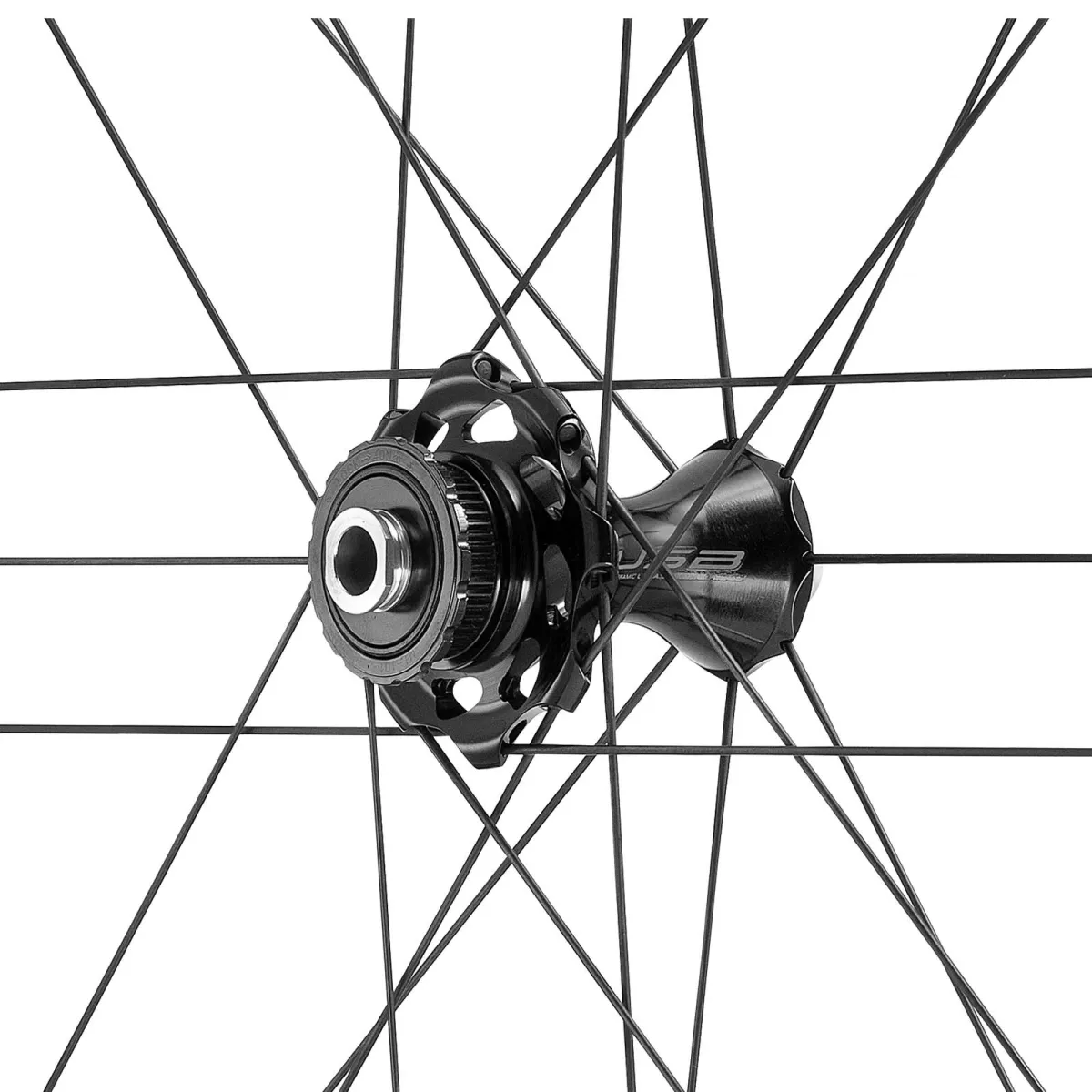

Campagnolo Bora WTO hubs:

The Bora WTO, with its monolithic hub bodies, is designed with aerodynamics in mind and features an enlarged 33 mm pawl housing for even more efficient power transfer. The hub flange on the right-hand side of the rear wheel has an enlarged diameter to increase lateral stiffness. This enables uniform spoke tension, thereby significantly increasing durability. Adjustable ceramic ball bearings are used for the bearings. Thanks to external adjustment options, the hubs are easy to adjust and maintain. The new Bora hubs also require new freehub bodies, OS 33 mm.

Campagnolo USB Ceramic Hub Bearings:

The Campagnolo USB (Ultra Smooth Bearings) ceramic deep-groove ball bearings guarantee extremely smooth operation. Absolutely smooth surfaces and lower friction, designed to minimise energy loss as much as possible, are the most notable features. Add to that the reduced weight and corrosion resistance, and you’ll surely understand why Campagnolo can offer the best of the best with the USB. All your power is transferred to the road without any loss.

Campagnolo Bora WTO 35 Rims 2 Way Fit:

On the Bora Ultra, the spoke nipples are mounted on the inside for even better aerodynamics. This saves a few extra watts. 2 Way Fit, Campagnolo’s proven tubeless system, forms the heart of the new wheelsets, specially developed to achieve perfect aerodynamics. The new full-carbon rims of the Bora WTO wheelsets, 28.4 mm wide, with a 23 mm rim depth and 33 mm height, ensure outstanding aerodynamics. The modern resin and carbon fibre technologies developed in-house by Campagnolo enable the spoke holes to be drilled. This preserves the integrity of the Campagnolo carbon fibre, improves safety and consequently guarantees the reliability of the rim. Among other things, these technologies not only guarantee the durability of the carbon and colour fastness thanks to high resistance to UV rays, but also make the subsequent application of a transparent coating unnecessary, as Campagnolo’s carbon wheels come straight from the mould with a resin coating that replaces the paintwork, thereby reducing weight. The carbon fibre construction with integrated Rim Dynamic Balance technology ensures an even more efficient wheel and adds a structural counterweight to what would otherwise be an unbalanced rotating mass caused by the tyre valve.

Campagnolo H.U.L.C.:

Handmade Ultra-Light Carbon is Campagnolo’s exclusive technology for manufacturing carbon rims, which optimises the ratio of carbon fibre to resin to increase stiffness and control. A distinctive feature of Campagnolo’s high-end wheelsets. It is a further development of Campagnolo’s exclusive, patented carbon moulding process, which enables the production of rims without defects and without additional layers of paint. Optimising the ratio of carbon fibre to resin guarantees a reduction in weight and unprecedented dimensional accuracy of the safety elements of the 2-Way Fit rim (spoke holes, hooks and humps). H.U.L.C. technology is used on the Bora Ultra WTO, Hyperon Ultra, Shamal and Ghibli road bike wheelsets and the Levante gravel wheelsets.

Hooked / Crotchet tubeless TC:

Hook or Crotchet refers to the shape of the rim flange, which features a so-called hook. This aids in securing the tyre bead and ensures reliable performance, even when using high tyre pressure (> 5 bar). Tubeless means that the rim can be ridden without an inner tube, although a setup with an inner tube is also possible.

Campagnolo Bora G3 spokes:

Elliptical stainless steel aero spokes and anti-rotation aluminium spoke nipples offer high stiffness, lightness and aerodynamics. The G3 lacing pattern ensures perfectly balanced spoke tension and allows the Bora wheelsets to be used by heavier riders. Campagnolo’s iconic G3 geometry challenges the conventional spoke configuration for road bike wheelsets. Groups of three parallel straight-head spokes are arranged in a 2:1 ratio. Thanks to the double number of spokes on one side, wheels featuring G3 technology achieve perfect tension balance, which increases stiffness and improves power transfer. An iconic design, unique in its style, which contributes to improved load-bearing capacity and reduces weight. The G3 lacing pattern also has a positive effect on the riding experience: the original triplet pattern reduces perceived vibrations and minimises micro-deformations of the rim under tension, as well as its reaction to the stresses of the road. The G3 geometry has been developed with optimised solutions for the front and rear wheels. The front wheel has a greater number of spokes on the disc side to absorb braking loads. On the rear wheel, however, the same forces are transmitted to the spokes via the monolithic hub shell, which are doubled on the cassette side: an innovation that enables performance both during braking and in power transmission whilst pedalling.
