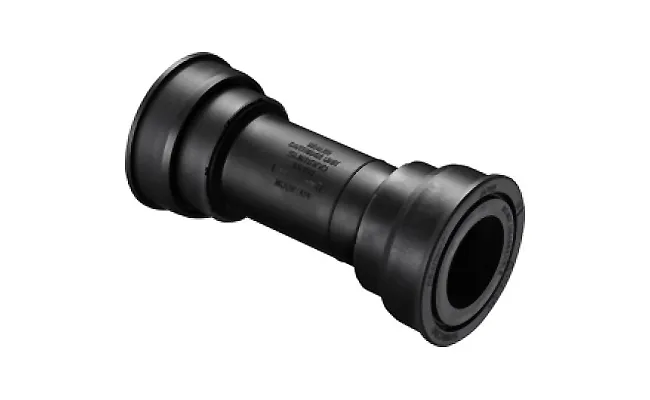

Shimano Deore XT BB MT800 PA MTB bottom bracket BB 86-92, press-fit dimensions 41 mm x 89–92 mm, black, for Shimano Hollowtech II cranksets with 24 mm axle
Shimano BB92 Pressfit Bottom Bracket
The Shimano BB92 Pressfit bottom bracket at Deore XT level. The bottom bracket design is characterised above all by its low weight, low Q-factor and greater ankle clearance. Furthermore, it is easy and safe to install and guarantees a longer service life thanks to the larger bearing diameters.
BB92 bottom bracket shells:
The BB92 bottom bracket shells have a width of 89 to 92 mm and a press-fit dimension for the bottom bracket of 41 mm. These bottom brackets are only compatible with MTB cranksets. Not compatible with MTB cranksets for 83 and 100 mm installation widths. These bottom brackets are press-fit.
Shimano Hollowtech II crank axle 24 mm – MTB:
The Shimano Hollowtech II crankset system has a solid 24 mm axle. The MTB cranksets have a 120 mm long crankset axle. The DH Saint and Zee cranks for 83 and 100 mm installation widths have longer axles and only fit frames with correspondingly wider bottom bracket shells. The respective bottom brackets are compatible with one another.
Included in the scope of delivery: right and left bearing cups, including bearing units, for frames with a 41 mm bottom bracket diameter and 89.5 and 92 mm bottom bracket widths. These Pressfit BB92 bottom brackets are supplied with a 2.5 mm spacer ring and are therefore suitable for two bottom bracket shell widths.
Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
