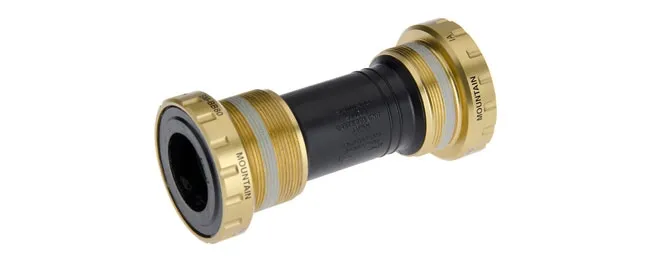

Shimano Saint Bottom Bracket

Shimano Saint SM-BB80 BSA bottom bracket for Shimano Hollowtech II 83 mm cranks. The heart of every drivetrain, featuring new seals and longer bearing cups that are significantly lighter and stronger than the previous model. This means the Shimano Saint SM-BB80 bottom bracket cuts a fine figure not only on downhill bikes.

Shimano Hollowtech II crank axle 24 mm / 83 mm:

The Shimano Hollowtech II crankset system features a solid 24 mm axle. The MTB cranks for 83 mm bottom bracket shells have an axle length of 136 mm and are only compatible with 83 mm wide bottom bracket shells. This axle system is also used on Race Face X-type cranks for 83 mm shells. The respective bottom brackets are compatible with one another.

Shimano Saint SM-BB80 Bottom Bracket Technical Specifications:

• Gold-coloured bearing cups with longer thread for screw-in installation
• BSA thread, 34 mm x 1.37 TPI
• Installation width 83 mm
• Thoroughly sealed

Compatible with:

• all Shimano Hollowtech II cranksets with an 83 mm wide axle
