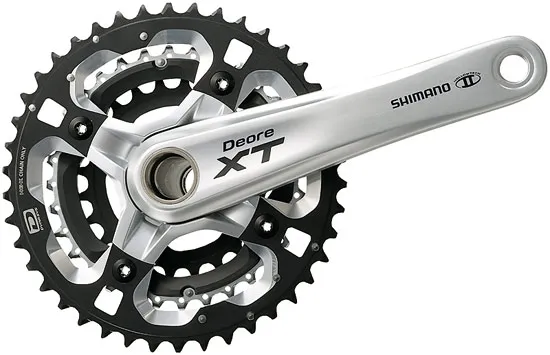

The Shimano XT FCM 770-10 crankset.

The Shimano XT crankset for the new 10-speed Dyna-Sys MTB series. Featuring smaller gear steps on the crankset (24, 32, 42) and, optionally, a cassette with a 36-tooth sprocket as the largest cog. This allows Shimano to achieve a significantly smoother gear progression with exceptionally high performance.

The middle chainring sits on a carbon carrier and has drilled steel teeth. Despite the weight saving, Shimano promises 100 per cent greater durability for the most frequently used chainring. The new crank arms and spider are slimmer and lighter.

Shimano XT crankset technology:

• Hollow-forged Dural aluminium cranks
• SG-X aluminium chainrings with climbing aids on the chainrings
• Steel middle chainring with carbon support.
• Cartridge bottom bracket with industrial bearings, included
• Crankset arm length: 175 mm
• Tooth count: 24 / 32 / 42
• Weight: FC-M 770: 758 grams without bottom bracket
• Bottom bracket: 130 grams

Compatible with 10-speed MTB drivetrains only. The bottom bracket is the same as on the FCM 770 9-speed cranksets.

Shimano XT crankset contents:

XT FCM770 crankset, with chainrings, without bottom bracket

Compatible bottom bracket shells - bottom bracket

• BSA threaded shell, installation width 68/73 mm – Shimano XT SMBB70 bottom bracket
• Pressfit BB92 shell, installation width 92 mm, press-fit depth 41 mm – Shimano XT SMBB7141A bottom bracket
• BB30 shell, installation width 68/73 mm, press-fit depth 42 mm
  Race Face X-Type bottom bracket, part no.: 2020030620
  Alternatively, Wheels Outboard bottom bracket, part no.: BB30-OUT-1
• Pressfit 30 shell, installation width 68/73 mm, press-fit depth 46 mm
  Race Face X-type bottom bracket Race Face Part No: 2020030630
• Alternatively, Wheels Outboard bottom bracket, Part No: PF30-OUT-1
