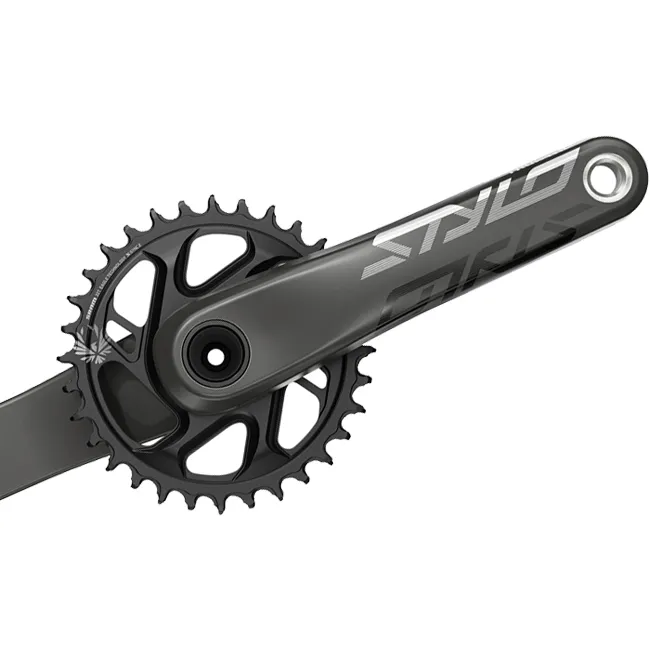

Truvativ Stylo Carbon Eagle Crankset

The DUB version of the Truvativ Stylo Carbon crankset offers the strength of carbon combined with the robustness of high-quality aluminium cranksets. The Stylo Carbon crankset utilises an exclusive Truvativ carbon manufacturing process. The result is a crankset that is light enough for XC, yet strong and tough enough for all-mountain riding.

Sram/Truvativ DUB Axle Bottom Bracket System:

The DUB version of the Sram cranks is suitable for BSA threaded, Pressfit BB92, Pressfit 30 and BB30 bottom bracket shells. You can find the matching bottom brackets further down in the text. The axles have a diameter of 29 mm and a length of 113 mm. The axle play is adjustable via a preloader. The Sram DUB cranksets have their own proprietary standard and are only compatible with DUB bottom brackets, not with other standards or bottom brackets.

Truvativ Stylo Carbon

The Stylo Carbon crankset with a 49-tooth chainring for mountain bikes with standard rear triangle mounting widths of 135–142 mm. This completely new crankset utilises SRAM’s exclusive carbon wrapping technology. The robust, new Stylo Carbon crankset is strong, stiff and lightweight. Despite its low weight, it is approved for cross-country, all-mountain and trail use. The Direct Mount chainring mount simplifies chainring changes and allows for quick installation of SRAM Direct Mount chainrings.

SRAM Direct Mount X-Sync 2 chainring, 12-11-speed:

SRAM’s Direct Mount X-Sync chainrings are bolted directly onto the crank. This saves weight without compromising on stiffness or durability. Perfectly tuned for maximum chain control and guidance. The completely new chainring technology, specially developed for the Eagle chain and drivetrain, offers significantly quieter performance and exceptional durability. Dirt is removed more easily. The chainring teeth are longer and shaped like a saw blade to grip the Eagle chain perfectly. The new chainring profile thus increases chain tension and pedalling efficiency. At the same time, friction, chain noise and wear are reduced.

Truvativ Direct Mount chainring mount:

This mount allows Sram Direct Mount chainrings, or Race Face chainrings for example, to be fitted without an additional spider.

Truvativ Stylo DUB Carbon Eagle Crankset Technical Specifications:

• Intended use: Cross Country, All Mountain, Trail
• Chainring material: 7075-T6 aluminium, anodised
• Bottom bracket axle: 29x113 mm aluminium
• Chainline: 49 mm
• Crankset arm material: Aluminium with carbon coating
• Weight approx. 545 g without bottom bracket, 170 mm
• Compatibility: 12-speed
• Supplied without bottom bracket

Included: Truvativ Stylo Carbon Eagle crankset arms, right and left, 32T X Synce 2 chainring

Compatible bottom bracket shells – DUB bottom bracket

• Thread: BSA 1.37x24 TPI, shell width 68–73 mm
• Sram DUB bottom bracket Part No. 00.6418.015.001
• Pressfit BB92 press-fit diameter 41 mm, shell width 68–73 mm
• Sram DUB Pressfit BB92 bottom bracket, part no. 00.6418.016.000
• BB30, press-fit depth 42 mm, shell width 68–73 mm
• Sram DUB BB30 bottom bracket Part No. 00.6418.017.000
• Pressfit 30, press-fit diameter 46 mm, shell width 68–73 mm
• Sram DUB Pressfit 30 bottom bracket Part No. 00.6418.018.000
