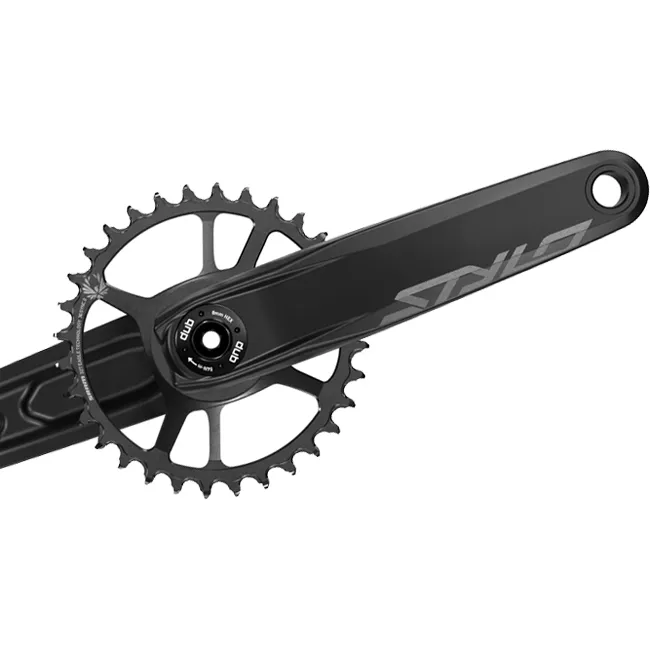

Truvativ Stylo Eagle 6K Crankset

The DUB version of the Truvativ Stylo Eagle crankset, robust and affordable, designed for singletrack, cross-country and marathon.

Truvativ Stylo 6K

The Stylo 6K crankset with a 51-tooth chainring for mountain bikes with Boost rear end – 148mm mounting width. The robust, new Stylo 6K crankset is strong, stiff and lightweight thanks to forged 6000-series aluminium cranks. The Direct Mount chainring mount simplifies chainring changes and allows for quick installation of SRAM Direct Mount chainrings.

SRAM Direct Mount X-Sync 2 chainring, 12-11-speed:

SRAM’s Direct Mount X-Sync chainrings are bolted directly onto the crankset. This saves weight without compromising on stiffness or durability. Perfectly tuned for maximum chain control and guidance. The completely new chainring technology, specially developed for the Eagle chain and drivetrain, offers significantly quieter performance and exceptional durability. Dirt is removed more easily. The chainring teeth are longer and shaped like a saw blade to grip the Eagle chain perfectly. The new chainring profile thus increases chain tension and pedalling efficiency. At the same time, friction, chain noise and wear are reduced.

Truvativ Direct Mount chainring mount:

This mount allows Sram Direct Mount chainrings, or Race Face chainrings for example, to be fitted without an additional spider.

SRAM/Truvativ DUB Axle Bottom Bracket System:

The DUB version of the SRAM cranksets is suitable for BSA threaded, PressFit BB92, PressFit 30 and BB30 bottom bracket shells. You will find the compatible bottom brackets further down in the text. The axles have a diameter of 29 mm and a length of 113 mm. Axle play is adjustable via a preloader. The Sram DUB crankset has its own proprietary standard and is only compatible with DUB bottom brackets, not with other standards or bottom brackets.

Truvativ Stylo DUB 6K Aluminium Eagle Crankset Technical Specifications:

• Intended use: Cross Country, All Mountain, Trail
• Chainring material: 7075-T6 aluminium, anodised
• Bottom bracket axle: 29x113 mm aluminium
• Chainline: 51 mm
• Crankset arm material: Aluminium with carbon coating
• Weight approx. 700 g without bottom bracket, 170 mm
• Compatibility: 12-speed
• Supplied without bottom bracket

Included: Truvativ Stylo Eagle crank arms, right and left, 32T Synce 2 chainring

Compatible bottom bracket shells – DUB bottom bracket

• Thread: BSA 1.37x24 TPI, shell width 68–73 mm
• Sram DUB bottom bracket Part No. 00.6418.015.001
• Pressfit BB92 press-fit diameter 41 mm, shell width 68–73 mm
• Sram DUB Pressfit BB92 bottom bracket, part no. 00.6418.016.000
• BB30, press-fit depth 42 mm, shell width 68–73 mm
• Sram DUB BB30 bottom bracket Part No. 00.6418.017.000
• Pressfit 30, press-fit diameter 46 mm, shell width 68–73 mm
• Sram DUB Pressfit 30 bottom bracket Part No. 00.6418.018.000
