Sram Force AXS crankset

The crank arms with a 45 mm chainline for the Sram Force eTap AXS components, featuring an 8-bolt mount for Direct Mount chainrings or the Powermeter power measurement unit.

Sram Force AXS crankset:

The crank arms are compatible with the Red AXS, Force AXS and Rival AXS cranksets and Direct Mount chainrings. The 8-bolt mounting corresponds to the previous mounting for Quarq power metre systems. The SRAM Force AXS carbon crankset for the new eTap AXS groupset, in combination with the new 12-speed cassettes, offers a completely new gear ratio range. The smaller chainrings and the cassette with a wider range provide a greater gear ratio range than previous systems. The result is smoother and faster front shifting and more usable gears. Weighing just 560 grams, the cranks are also very light. The new configurations this enables improve cadence and efficiency and ensure crisp, clean and fast gear changes.

SRAM Force AXS DUB crank arm technology:

• Application: Road
• Compatibility: SRAM 12x2/1-speed
• Crank arm material: Hollow carbon
• Chainline: 45 mm
• Aluminium DUB crankset axle, diameter 28.99 mm, length 106 mm
• Supplied without DUB bottom bracket
• Required bottom bracket: SRAM DUB

Included in delivery:

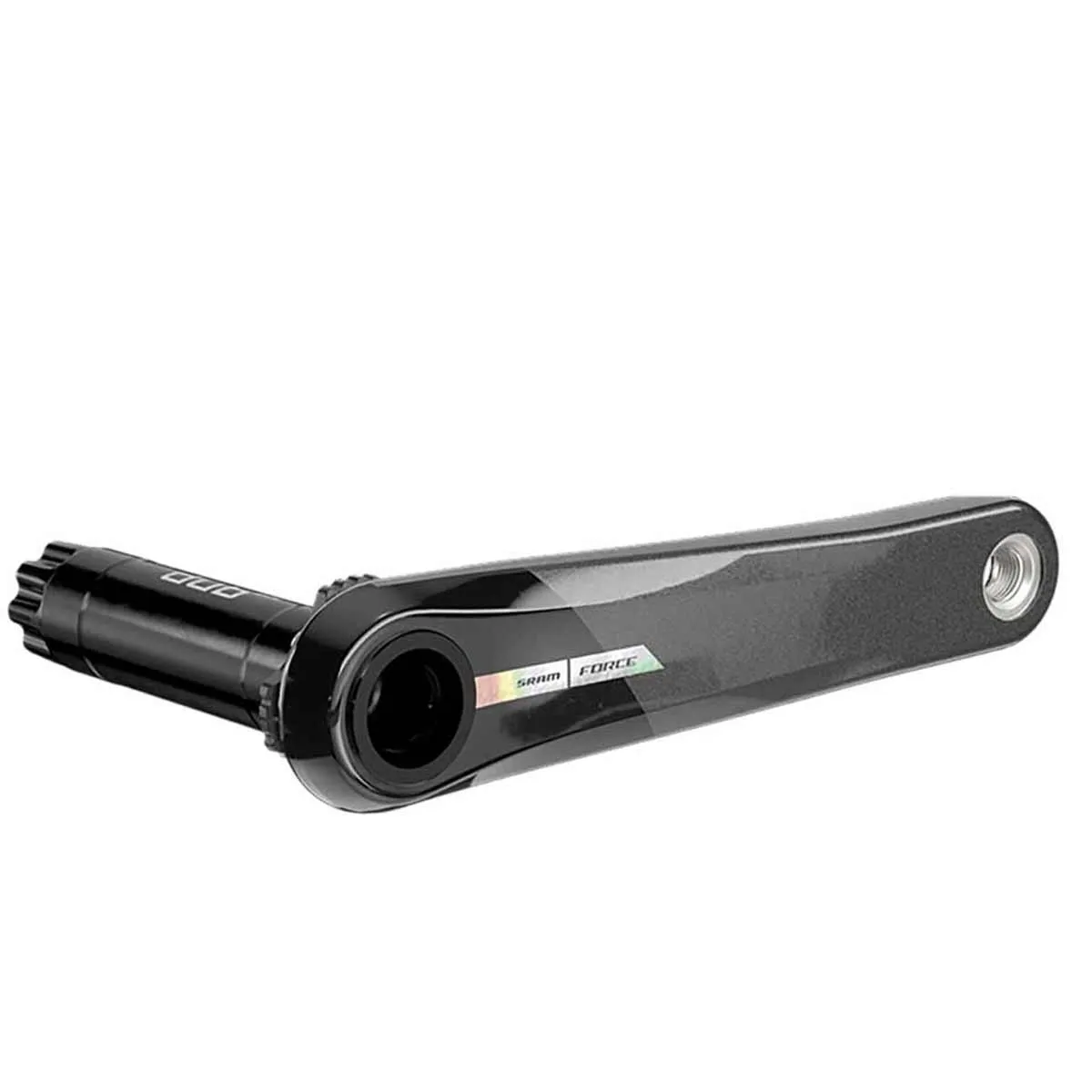

SRAM Force AXS crank arms, left

SRAM X Range chainring technology:

The chainrings are individually replaceable and bolted to the Force AXS spider. The X Range Direct Mount chainrings work perfectly with the Yaw technology of the Force eTap AXS front derailleur, delivering outstanding, smooth shifting. The X-Range chainrings, in combination with the Yaw derailleur, ensure optimal shifting performance. The Direct Mount mount with 8 bolts makes changing the gear ratio a breeze. Additionally, the Sram Force AXS cranks offer the option to retrofit the Quarq Powermeter power measurement crankset.

SRAM DUB Axle Bottom Bracket System:

The DUB version of the SRAM cranks is suitable for all standard bottom bracket shells. You will find the matching bottom brackets below, along with the installation dimensions. The axles have a diameter of 29 mm. Axle play is adjustable via a preloader. The SRAM DUB road bike cranksets have their own proprietary standard and are only compatible with DUB road bike bottom brackets, not with other bottom brackets. SRAM and Wheels Manufacturing offer suitable bottom brackets for almost every bottom bracket standard.

Compatible bottom bracket shells – DUB bottom brackets

• Thread: BSA 1.37x24 TPI, shell width 68 mm,
  SRAM DUB bottom bracket, part no. 00.6418.015.000
• Threaded ITA 36 mm x 24 TPI, shell width 70 mm,
  Sram DUB bottom bracket, part no. 00.6418.038.000
• Pressfit BB86, press-fit diameter 41 mm, shell width 86.5 mm,
  SRAM DUB Pressfit BB86.5 bottom bracket, part no. 00.6418.025.000
• BB30, press-fit dimension 42 mm, shell width 68 mm,
  Sram DUB Pressfit BB30 bottom bracket, item no. 00.6418.017.000
• BB30A, press-fit diameter 42 mm, shell width 73 mm, asymmetrical
  Sram DUB Pressfit BB30 bottom bracket, item no. 00.6418.027.000
• Pressfit 30, press-fit diameter 46 mm, shell width 68–73 mm
  , SRAM DUB Pressfit bottom bracket, item no. 00.6418.028.001
• Pressfit 30A 73, press-fit diameter 46 mm, shell width 73 mm, asymmetrical,
  SRAM DUB Pressfit bottom bracket, part no. 00.6418.028.001
• Pressfit 30A 83, press-fit diameter 46 mm, shell width 83 mm, asymmetrical,
  SRAM DUB Pressfit bottom bracket, item no. 00.6418.028.002
• BB-Right, press-fit diameter 46 mm, shell width 79 mm
  , SRAM DUB PressFit BB-Right bottom bracket, item no. 00.6418.028.000
• BB386 Evo, press-fit diameter 46 mm, shell width 86.5 mm,
  SRAM DUB PressFit BB386 bottom bracket, part no. 00.6418.026.000
• T47, thread diameter 47 mm, shell width 68 mm
  , SRAM DUB PressFit threaded bottom bracket, Part No. 00.6418.033.002
• T47, thread diameter 47 mm, shell width 77 mm
  , SRAM DUB PressFit threaded bottom bracket, part no. 00.6418.033.003
• T47, thread diameter 47 mm, shell width 85.5 mm,
  SRAM DUB PressFit threaded bottom bracket, item no. 00.6418.033.000
