DT Swiss aluminium Rotor hubs, Ratchet DEG sprocket system, ceramic ball bearings, Sram XD for Sram 11-speed and 12-speed XG and Transition MTB cassettes, with right-hand end stop for 12x148 Boost or 12x157 Superboost
DEG Freehub Body DT Swiss MTB - Sram XD
The high-end freehub body from the DEG series with Superlight Sinc Ceramic bearings
For converting DT Swiss 350 and 240 DEG MTB hubs, equipped with the Ratchet DEG system, to the Sram XD system for 11-speed and 12-speed XG and Transition MTB cassettes.

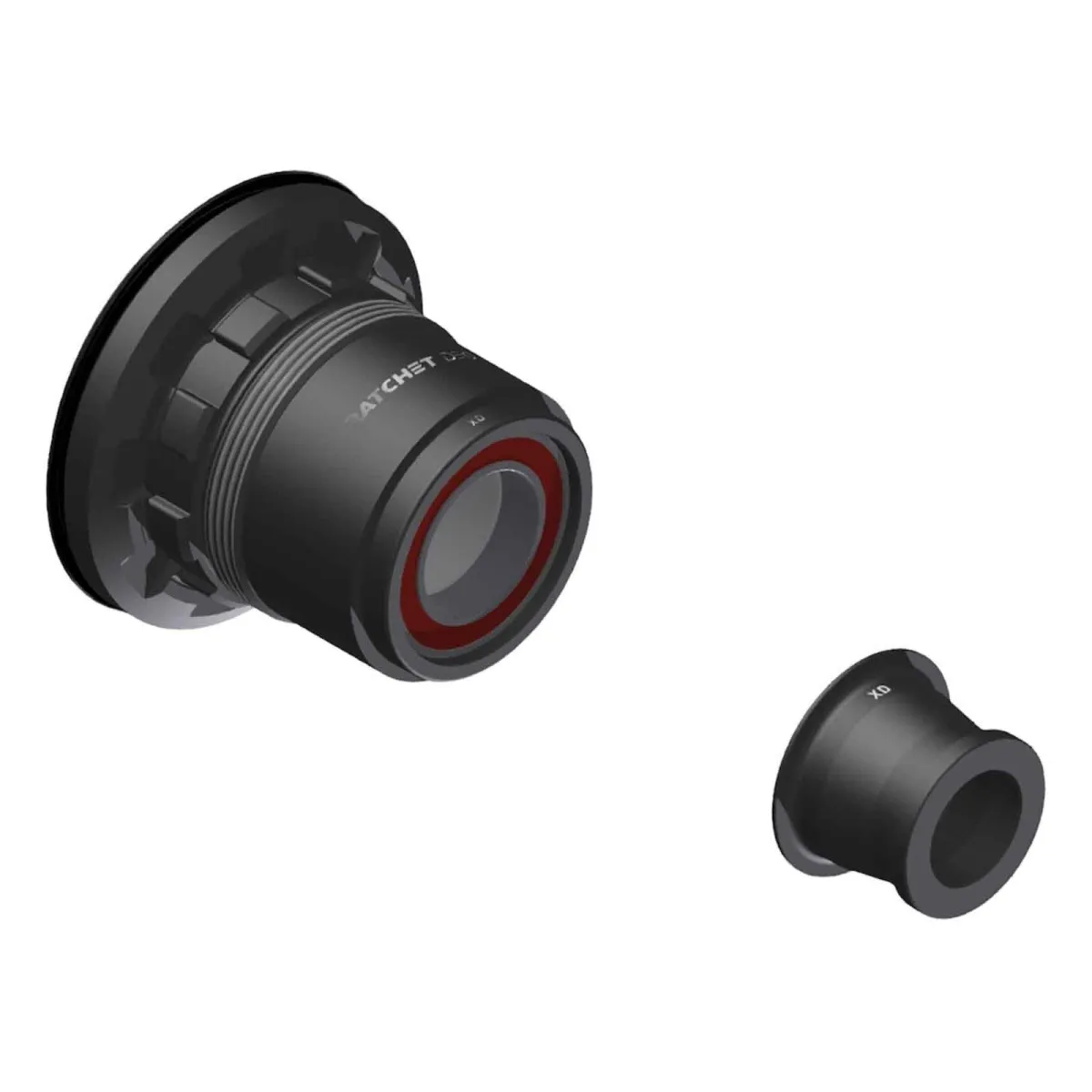

- The kit includes the freehub body and the right-hand frame stop for 12x148mm or 12x157mm thru-axle mounting. The right-hand end stops for the mounting dimensions are the same; the hub widths differ.
- The Ratchet DEG freehub bodies are only compatible with DT Swiss 350 DEG and 240 DEG hubs and rear wheels fitted with these hubs.
- DT Swiss manufactures separate right-hand end stops for each cassette system, such as Shimano HG10, Shimano HG11, Shimano Micro Spline, Sram XD, Sram XDR, Campa ED and Campa N3W. These are also required for conversion if not already present. The right-hand end caps from older systems, such as 3-pawl or Ratchet Star, are also compatible with the new freehub bodies.
Not compatible with Pawl / 3-pawl, Ratchet LN, Ratchet Star, Ratchet DEG hubs.
Not suitable for converting hubs to a different installation dimension
SINC ceramic ball bearings have been developed by DT Swiss as a system. They are based on balls made from the ceramic material silicon nitride, Si3N4, which is extremely durable and resistant to wear and corrosion. The bearing rings are made from a specially developed steel alloy tailored to the properties of the ceramic material and are precision-ground. This combination reduces rolling resistance to an absolute minimum and ensures a longer service life compared to conventional ball bearings.
Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
