Sram Red XPLR AXS E1 Cranksets | FC-RED-ASSY-E1

The high-end DUB Road Wide crankset for gravel use, compatible with 11–13-speed drivetrains and upgradeable to a power meter crankset.

The RED XPLR DUB Wide crankset maximises tyre clearance and features hollow carbon arms. Thanks to the 8-point bolt pattern on the spider or chainring, it is compatible with gravel and road chainrings and power meters. This crankset is now also available with 150 mm crank arm length and will satisfy every rider, even those who prefer to ride on unpaved routes.

Included:

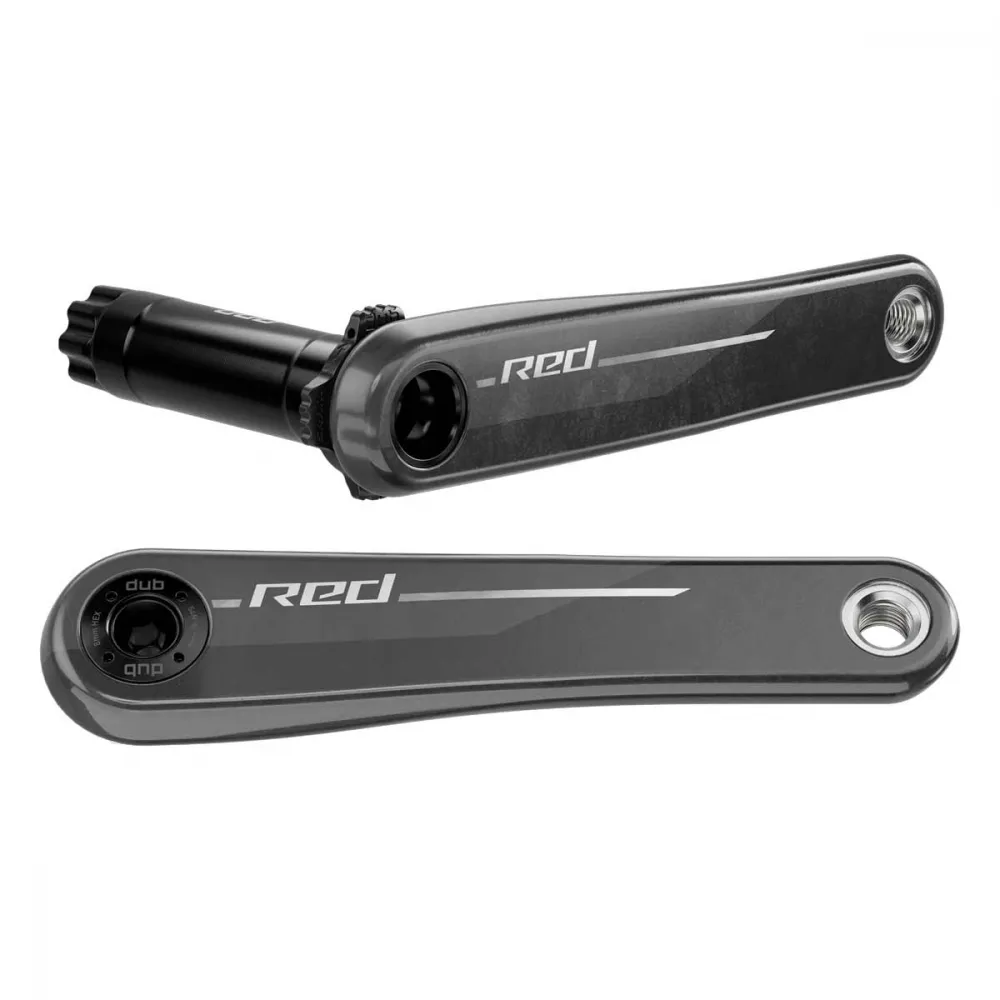

• Sram Red XPLR E1 DUB Road Wide crankset arms, incl. DUB Wide spacer kit 2.5/3.0/4.5/5.5

SRAM Red XPLR AXS E1 DUB Road Wide crankset technology:

• Application: Road, Gravel Cross 13-11 speed
• Crankset arm material: Hollow-construction carbon
• Direct Mount chainring mount with 8-point bolt pattern
• Power meter compatible
• Compatibility: SRAM 13x1-speed, 12x1-speed
• Weight: approx. 310 grams (manufacturer’s specification)
• Chainline 47.5 mm
• Dub Road Wide aluminium crank axle 29 mm
• Supplied without DUB bottom bracket
• Required bottom bracket: SRAM DUB

SRAM Red XPLR AXS Wide crank arms, FC-RED-ASSY-E1:

The Sram Red AXS Carbon crankset for the new AXS E1 Gravel groupset, in combination with the new cassette, offers a completely new gear ratio range. The smaller chainrings and the cassette with a wider range provide a greater gear ratio range than previous systems. The result is smoother and faster front shifting and more usable gears. Weighing just 540 grams, the cranks are also significantly lighter. The new configurations this enables improve cadence and efficiency and ensure crisp, clean and fast gear changes.

SRAM DUB Road Wide Axle Bottom Bracket System:

The DUB version of the SRAM cranks is suitable for BSA threaded, PressFit BB92, PressFit 30, BB30, BB386 Evo BB Right and T47 bottom bracket shells. You can find the compatible bottom brackets below, along with the installation dimensions. The axles have a diameter of 29 mm. Axle play is adjustable via a preloader.

The SRAM DUB Road Wide cranks have a 5 mm longer crank axle and a chainline of 47.5 mm. Unlike the DUB Road cranks, the Q-factor has been increased from 145 mm to 150 mm.

The SRAM DUB road bike cranksets have a completely proprietary standard and are only compatible with DUB road bike bottom brackets, not with other bottom brackets. SRAM and Wheels Manufacturing offer compatible bottom brackets for almost every bottom bracket standard; only bottom brackets for Italian thread and Trek BB90 are not available. In those cases, GXP crankarms are required.

Compatible bottom bracket shells – DUB Wide Road bottom bracket

• Thread: BSA 1.37x24 TPI, shell width 68 mm,
  SRAM DUB bottom bracket, part no. 00.6418.015.004
• Thread ITA 1.37x24 TPI Shell width 70 mm
  SRAM DUB bottom bracket Part No. 00.6418.038.000
• Pressfit BB86 Press fit 41 mm Cage width 86.5 mm
  Sram DUB Pressfit BB86.5 bottom bracket Part No. 00.6418.016.004
• BB30, press fit depth 42 mm, shell width 68 mm,
  SRAM DUB Pressfit BB30 bottom bracket, part no. 00.6418.017.003
• BB30A, press-fit diameter 42 mm, shell width 73 mm (asymmetrical)
  SRAM DUB PressFit BB30 bottom bracket, item no. 00.6418.027.000
• Pressfit 30, press fit diameter 46 mm, shell width 68–73 mm
  , SRAM DUB Pressfit bottom bracket, item no. 00.6418.018.001
• Pressfit 30A, press-fit diameter 46 mm, shell width 73 mm, asymmetrical,
  SRAM DUB Pressfit bottom bracket, item no. 00.6418.028.001
• Pressfit 30, press fit diameter 46 mm, shell width 83 mm, asymmetrical,
  SRAM DUB Pressfit bottom bracket, item no. 00.6418.028.002
• BB-Right, press fit diameter 46 mm, shell width 79 mm
  , SRAM DUB PressFit BB-Right bottom bracket, item no. 00.6418.028.000
• BB386 Evo, press-fit diameter 46 mm, shell width 86.5 mm,
  SRAM DUB Pressfit BB386 bottom bracket, part no. 00.6418.018.005
• T47, thread diameter 47 mm, shell width 68 mm
  , SRAM DUB PressFit threaded bottom bracket, Part No. 00.6418.033.002
• T47, thread diameter 47 mm, shell width 77 mm
  , SRAM DUB PressFit threaded bottom bracket, part no. 00.6418.033.003
• T47, thread diameter 47 mm, shell width 86.5 mm,
  SRAM DUB PressFit threaded bottom bracket, Part No. 00.6418.033.000
