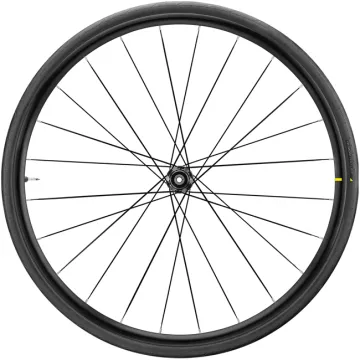

Spare parts for Mavic Aksium Elite UST Disc

Mavic Aksium Elite Disc wheelsets (2020 model) are equipped with the QRM Auto axle/bearing system.

Spare parts Mavic Aksium UST Disc rear wheel QRM Auto hub

• Item No. V2736115, replacement rim for front and rear wheels, black, 24-hole, dimensions: 18 mm rim width, 22 mm height, 23 mm outer width
• Item No: V3664501, Spoke, left, disc side, 296 mm, with nipple
• Item No: 36689601, Spoke, right, freehub side, 293 mm, with nipple
• Item No: M40076, Ball bearing set, 2 pieces, Type 6903, dimensions 17x30x7 mm
• Item No: V2252901, ID360 rear wheel axle kit for Centerlock disc, Centerlock hub with retaining ring and cover
• Item No: V2253001, ID360 rear wheel axle kit for 6-hole disc hub with retaining ring and cover
• Item No: V2252701, Sprocket mount for freehub body
• Item No: V2251601, ID360 star wheel seal with grease
• Item No: V2251801, ID360 spring for ratchet disc
• Item No: V2251601, ID360 seal for freehub body
• Part No: V2251701, ID360 toothed discs (2 pcs) with spring and pad for noise reduction
• Part No: V2500501, ID360 rubber damping pad for freewheel body

Compatible end stops, front wheel:

Quick-release mounting, installation dimension 9x100 mm, adapter Part No: V2680301
Thru-axle mounting, installation dimension 12x100 mm, adapter Part No: V2680501
Thru-axle mounting, installation dimension 15x100 mm, not possible

Compatible end stops, rear wheel:

Quick-release mounting, mounting dimension 10x135 mm, adapter part no.: V2510801
Thru-axle mounting, mounting dimension 12x135 mm, adapter part no.: V2510901
Thru-axle mounting, mounting dimension 12x142 mm, adapter part no.: V2510701

Compatible Instant Drive 360 freehub body

HG11 Aluminium Freehub for Shimano and SRAM cassettes, 8 + 9 + 10 + 11 + 12-speed compatible Item No: V3430101
HG11 steel freehub for Shimano and SRAM cassettes, compatible with 8, 9, 10, 11 and 12-speed systems, item no. V4000101
HG11 Aluminium Light Freehub for Shimano and SRAM cassettes, compatible with 8, 9, 10, 11 and 12-speed systems Item No: V3850101
Campa ED Freehub for Campagnolo cassettes, compatible with 9, 10, 11 and 12-speed systems Item No: V3440101
Campa N3Wfreehub for Campagnolo cassettes, compatible with 9, 10, 11 and 12-speed systems Item No.: V4270101
Sram XDR Road freehub for Sram AXS Road and XG MTB cassettes, compatible with 11 and 12-speed systems Item No.: V2580101

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
