Shimano XTR RD-M9000 spare parts

All spare parts can be found under the listed item numbers.

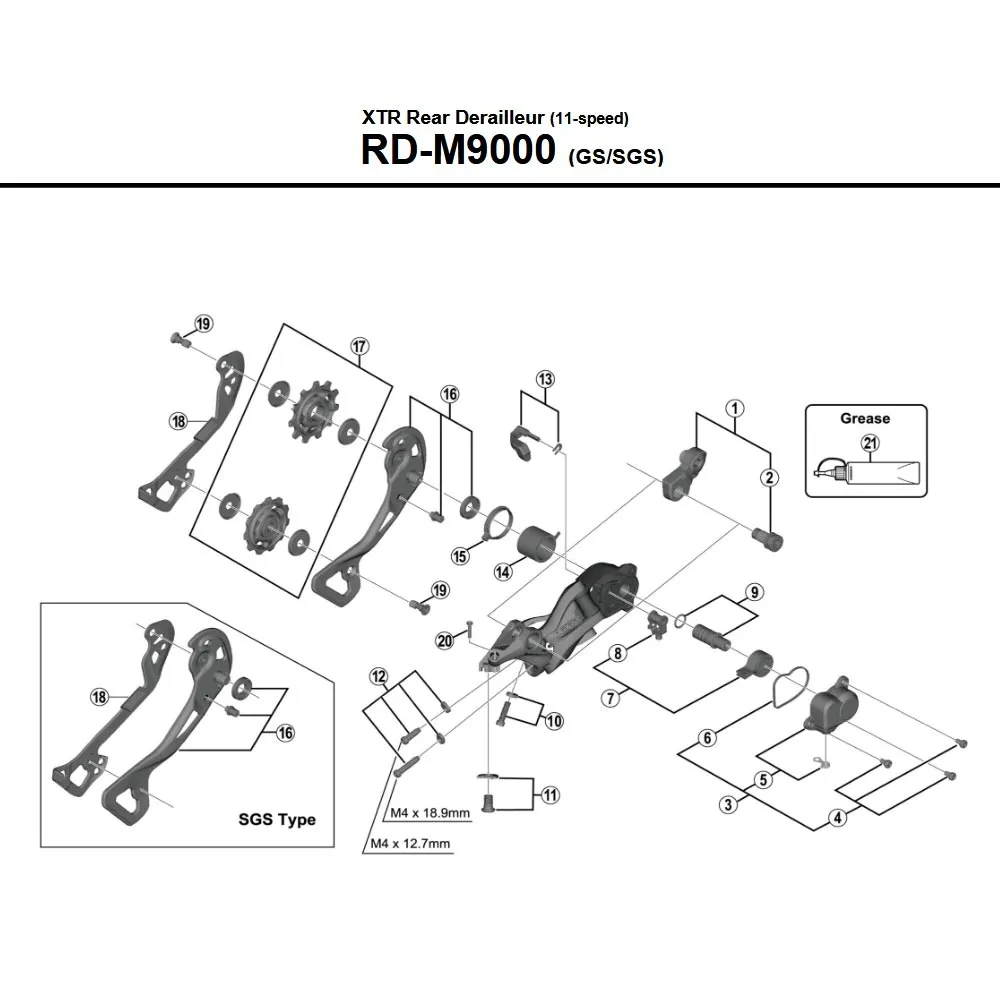

Shimano XTR RD-M9000 11-speed rear derailleur spare parts:

• No. 1: Y5PV98010, frame mounting kit
• No. 2: Y5PV15000, screw for Direct Mount rear derailleur bracket
• No. 3: Y5PV98030, housing cover, screws, sealing ring and cap
• No. 4: Y5Y198070, screws for housing cover (3 pieces)
• No. 5: Y5PV98190, housing cover and cap
• No. 6: Y5PV25000, Sealing ring for housing cover
• No. 7: Y3GF98040, stabiliser unit
• No. 8: Y3E498040, cam unit
• No. 9: Y5PV98060, rear derailleur axle and O-ring
• No. 10: Y5PV98070, Limit screw and plate
• No. 11: Y5PV98080, cable clamp screw and plate
• No. 12: Y5PV98090, Adjustment screw for rear derailleur and plate
• No. 13: Y5PV98100, Shift lever assembly
• No. 14: Y5PV17000, tension spring
• No. 15: Y5PV24000, Sealing ring P for tension spring
• No. 16: Y5PV98120, outer chain guide plate GS with stop pin and plate
• No. 16: Y5PV98130, outer SGS chain guide plate with stop pin and plate
• No. 17: Y5PV98160, set of shift rollers for GS and SGS
• No. 18: Y5PV09100, GS inner chain guide plate
• No. 18: Y5PV10100, SGS inner chain guide plate
• No. 19: Y5WJ21100, Shift roller screws, 2 pieces
• No. 20: Y5PV48000, rubber grommet for cable connection
• No. 21: Y04121000, Special grease for stabiliser
