Shimano Deore XT FD-M8000 front derailleur spare part

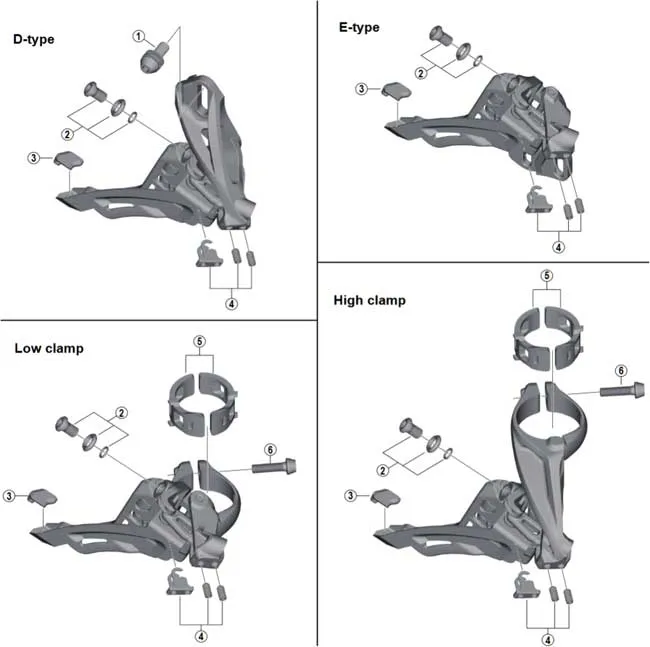

Replacement adjustment screw M4x 8 mm and counterplate for Shimano Deore XT FD-M8000 front derailleur. Included in the scope of delivery of exploded view no. 4.

Shimano Deore XT FD-M8000 front derailleur spare parts:

• No. 1: Y5S415000, Clamp Bolt, M6 x 16 mm
• No. 2: Y5S898020, Cable Fixing Bolt Unit, M6 x 9.2 mm
• No. 3: Y5RW07000, Rubber Pad B
• No. 4: Y5R198020, Stroke Adjust Screws, M4 x 8 mm and Plate
• No. 5: Y57Y98030, Clamp Band Adapters for S-size / ø28.6 mm, 1-1/8
• No. 5: Y57Y98040, Clamp Band Adapters for M-size / ø31.8 mm, 1-1/4
• No. 6: Y5S207000, Clamp Bolt, M5 x 18.5 mm
