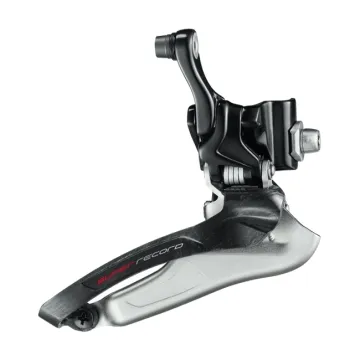

Campa Super Record 12S front derailleur

Perfectly matched to Campagnolo 12s chainrings, the Super Record 12s front derailleur features new geometry and an Ultra Shift carbon guide plate.

The new mechanical Super Record groupset with 12x2 gears. Campagnolo’s absolute professional-grade components, the finest materials, minimal weight and perfect workmanship – Campa Super Record as it has been known for decades. The victories this road bike groupset has secured over the years demonstrate the exceptional quality of the workmanship, the technologies and the high-quality materials that have always distinguished the groupset and made it a unique, outstanding product. Campagnolo offers two sprocket sets for the 12-speed components, covering all applications. With 11-29 and 11-32 tooth configurations, you get closely spaced cassettes that are also suitable for extreme mountain climbs.

Super Record 12-speed front derailleur

Based on the new lever system for faster shifting, the new Super Record 12x2 Speed mechanical front derailleur introduces numerous technical innovations. The force required for shifting has been reduced by the split in the front crank arm, which prevents contact with the limit screw, and by the shape of the inner guide plate, which has been adapted to the characteristics of the new 12-speed chain. The fine adjustment of the derailleur positions, controlled via the shift levers, prevents any contact with the chain even at maximum crossing. The plate fitted to the outer aluminium guide plate prevents potential chain drop when shifting up and speeds up downshifting, whilst also ensuring a quieter drivetrain.

Campagnolo Super Record 12-speed derailleur technology:

• Ultra-Shift guide plate made of carbon and light alloy
• Inner Z-Shape derailleur hanger
• Anti-friction treatment
• Derailleur body with M-brace geometry
• Capacity 16 teeth
• Largest chainring to be shifted: 55 teeth
• Smallest chainring to be shifted: 34 teeth
• Weight 79 grams

Herstellerinformation: Campagnolo, Via della Chimica 4, 36100 Vicenza, Italy, https://www.campagnolo.com
