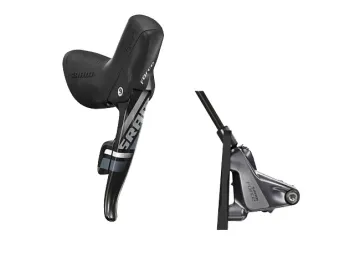

Sram Force 22 Hydraulic Disc Brake

The hydraulic shift-and-brake system from the Sram Force 22 series offers loss-free braking power transmission in combination with the ergonomic Sram Doubletap shift lever.

Flat Mount Standard:

The new Flat Mount caliper standard for road bike brakes reduces weight and offers a significantly sleeker look. With the Flat Mount standard, the rear brake caliper sits directly on the chainstay; no adapter is required for mounting the brake caliper. The bolts pass through the chainstay from below directly into the brake caliper. A flat adapter is still required on the fork. The adapter is screwed onto the rear of the fork leg, with the brake sitting directly on the adapter.

Sram Force 22 hydraulic Ergodynamic shift lever

The Sram Force 22 ErgoDynamic brake-shift levers feature a redesigned hydraulic master cylinder with a smaller, more ergonomic housing. The ErgoDynamic design: first-class control and comfort, new reach adjustment adaptable to all hand sizes, DoubleTap and ZeroLos for smooth and precise shifting.The individual Reach Adjus grip width adjustment for brake and shift levers is now even easier to access using a standard Allen key. The new clamp allows for a better fit and adjustment for modern carbon and ergonomic handlebars.

Sram Zero Loss:

The shift travel makes all the difference: conventional shifters require a specific shift travel angle to trigger the shift pawl – a crucial loss of time in a race, even before the actual shifting process begins. The Sram Force road bike lever with zero degrees of lost shift travel means the shift cables move without the slightest delay as soon as the lever is pressed!

Sram Force 22 Hydraulic disc brake

The disc brakes from the Force 22 series are designed for brake rotors up to 160 mm in size. The hydraulic SRAM Force 22 disc brake offers superior braking performance with minimal operating forces and precise modulation. The loss of power and friction caused by cable transmission in classic cable-actuated brakes is eliminated with this system. Braking performance remains consistent in all weather conditions. Thanks to the separation of the rim/tyre and the braking surface, issues with heat build-up are elegantly resolved.

SRAM Force 22 hydraulic shift-brake technology:

• Double Tap with Zero Loss, resulting in 0 degrees of lost shift travel; shift cables move without delay
• Right-hand shift lever: 11-speed
• Left brake lever: hydraulic
• Material: Carbon brake and shift levers
• Compatibility: Sram Red 22, Force 22, Force CX 1, Rival 22, Rival 1 rear derailleurs,
• Other: Ergonomic design and improved comfort with reach adjustment at minimal weight, internally and externally routed shift cables and longer, optimised levers
• Hydraulic brake cylinder
• Easy bleeding
• Required oil: DOT 5.1
• Hose length 950–1800 mm
• Compatible brakes: Sram Red 22, Force 22, Rival 22 hydraulic rim and disc brakes

SRAM Force 22 hydraulic flat-mount disc brake:

• Flat Mount standard
• Optimised power and modulation for road bikes and cyclocross
• 18 mm brake caliper piston
• Fully sealed system protects against contamination
• Tool-free reach adjustment
• Recommended brake discs: Sram Centerline
• Recommended brake disc sizes: 160 mm for road, 140 mm for cyclocross

Total weight, shifter and brake: 471 grams including hose

Included in delivery: Sram Force 22 2-speed left shift/brake lever, Force 22 rear disc brake including brake pads, shift cable, 1800 mm brake hose, fully pre-assembled and bled
