Shimano Ultegra BR-R7010 brake

The Shimano 105 components feature the technology of the Dura-Ace R9100 components, Shadow rear derailleur technology, new front derailleur mechanics, a lighter crankset and a wide range of gear ratios. Thanks to simpler materials, Shimano offers affordable, lightweight and durable 11-speed road bike components with the same high-quality technology. The new Shimano 105 11-speed drivetrain allows the bike to be tuned for specific uses through various gear combinations. The Shimano 105 FC R7000 crankset can be fitted with the following chainring combinations: 50-34, 52-36, 53-39 teeth

105 BR-R7000 Brake

The sleek R1000 series rim brake with a dual-pivot caliper offers maximum precision for better control and greater reliability in races. The rim brake is easy to adjust and maintain thanks to easy access to tools and the ability to change wheels quickly.

Direct-mount brakes

These brakes require frames with the appropriate mounting points. Instead of using a central bolt, as with classic road bike brakes, direct mount brakes are secured to the
frame with two bolts. This requires the frame to have two threaded mounts. The advantage of this system is reduced flex and therefore better braking performance. The rear brakes are available in two versions: with seat stays or bottom bracket/chainstay mounting. The front brake is available in a single version for fork mounting. You can identify the direct-mount mounts on the frame by the two threaded holes in the frame or fork.

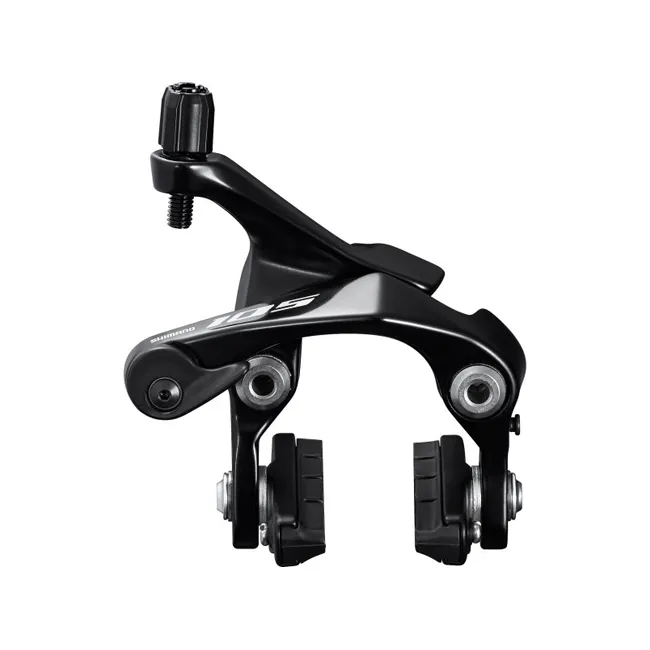

Shimano 105 BR-R7010 Brake Technology:

• Direct mount seat stay
• Aluminium brake arms
• Symmetrical dual-pivot technology
• Arm length 51 mm
• Maximum tyre width 28 mm
• For rim widths from 20.8 to 28 mm
• R55C4 brake pads for aluminium rims
• Weight: approx. 180 g
