TT Shift Lever Shimano Di2 SW R9160

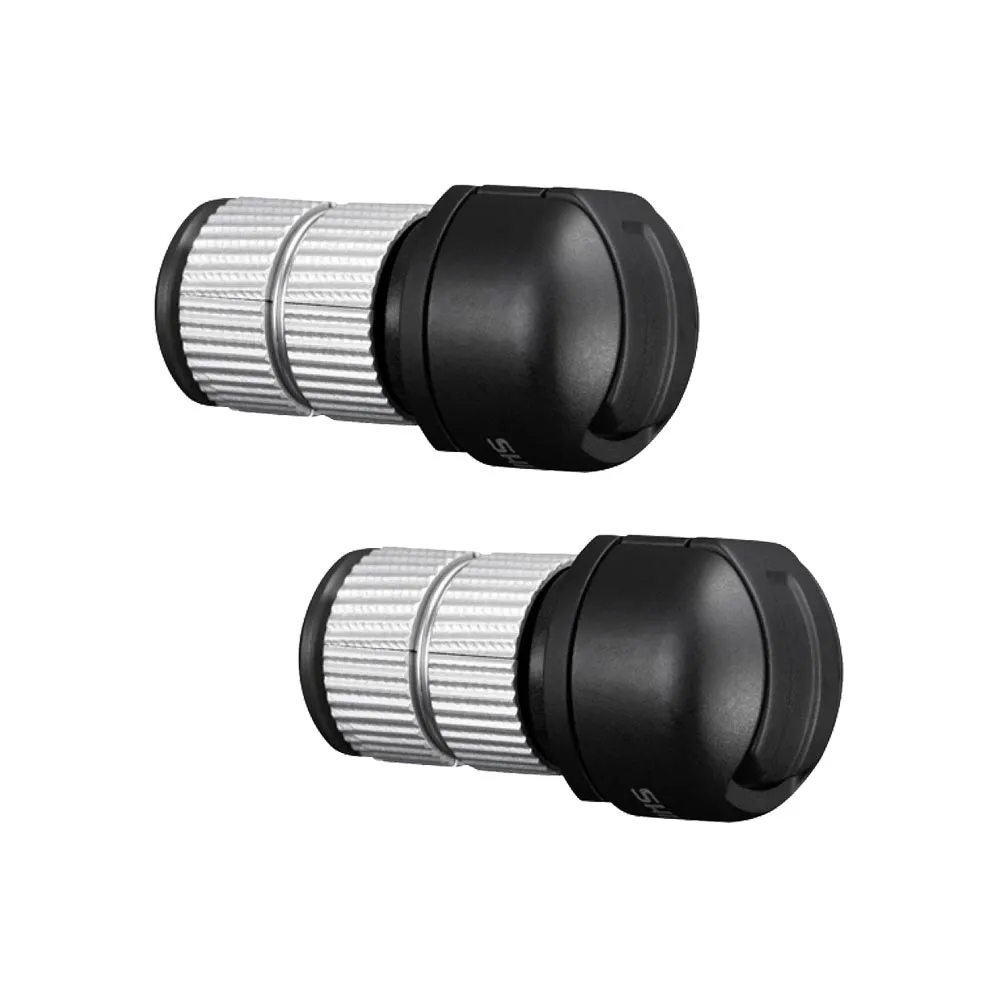

The electronic Shimano time trial shift lever for the Di2 system. The Di2 shift levers SW-RW9160 are mounted on the handlebar ends of the time trial extensions. Optionally, the SW-R9150 secondary shifter can also be fitted, allowing the rear gears to be changed quickly and without re-gripping in any riding situation. The SW-R9160 Di2 shifters with their single-button design offer the possibility of operating the front derailleur and rear derailleur in the aero position

These additional shift levers are also compatible with 12-speed Di2 components. This requires an update to the latest Di2 firmware.

Shimano Di2 SW-R9160 Shift Levers Technical Specifications:

• For 12/11 x 2-speed drivetrains
• Compatible with Di2 rear derailleurs and front derailleurs
• Weight: 95 g

Shimano Di2 installation:

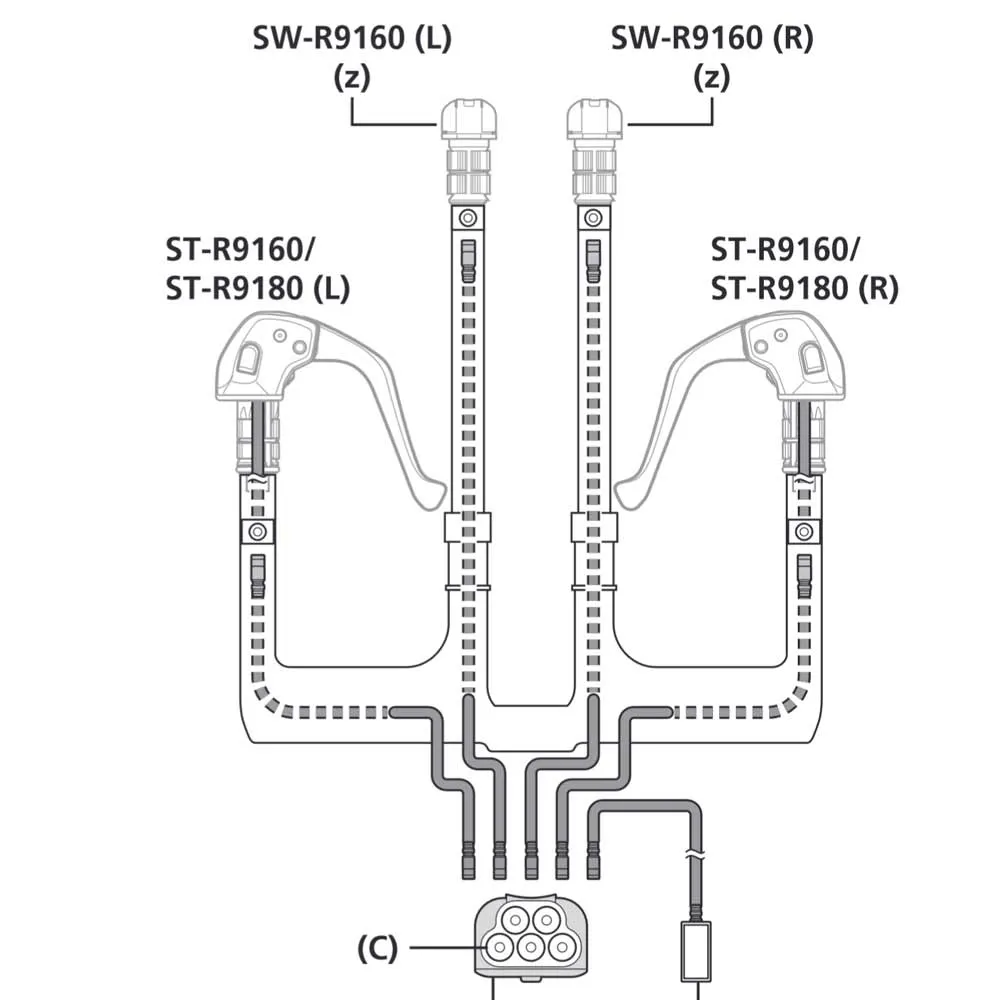

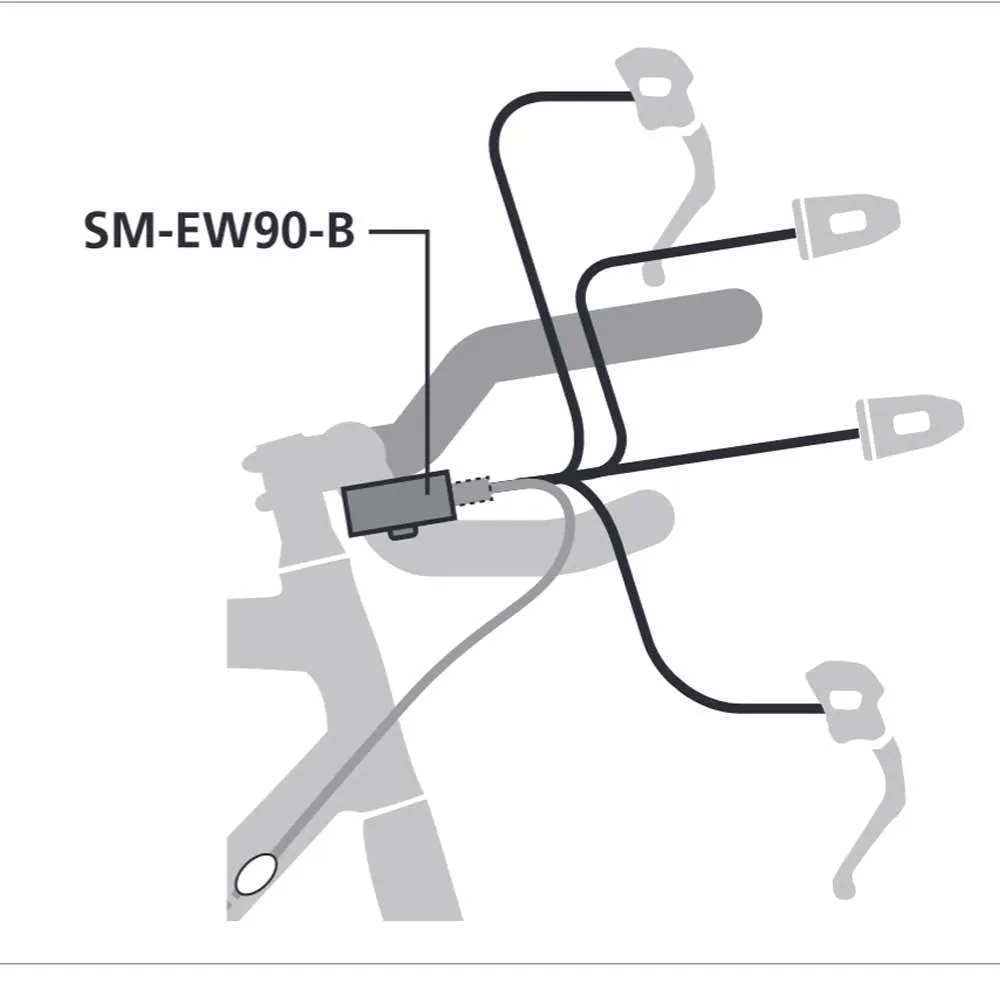

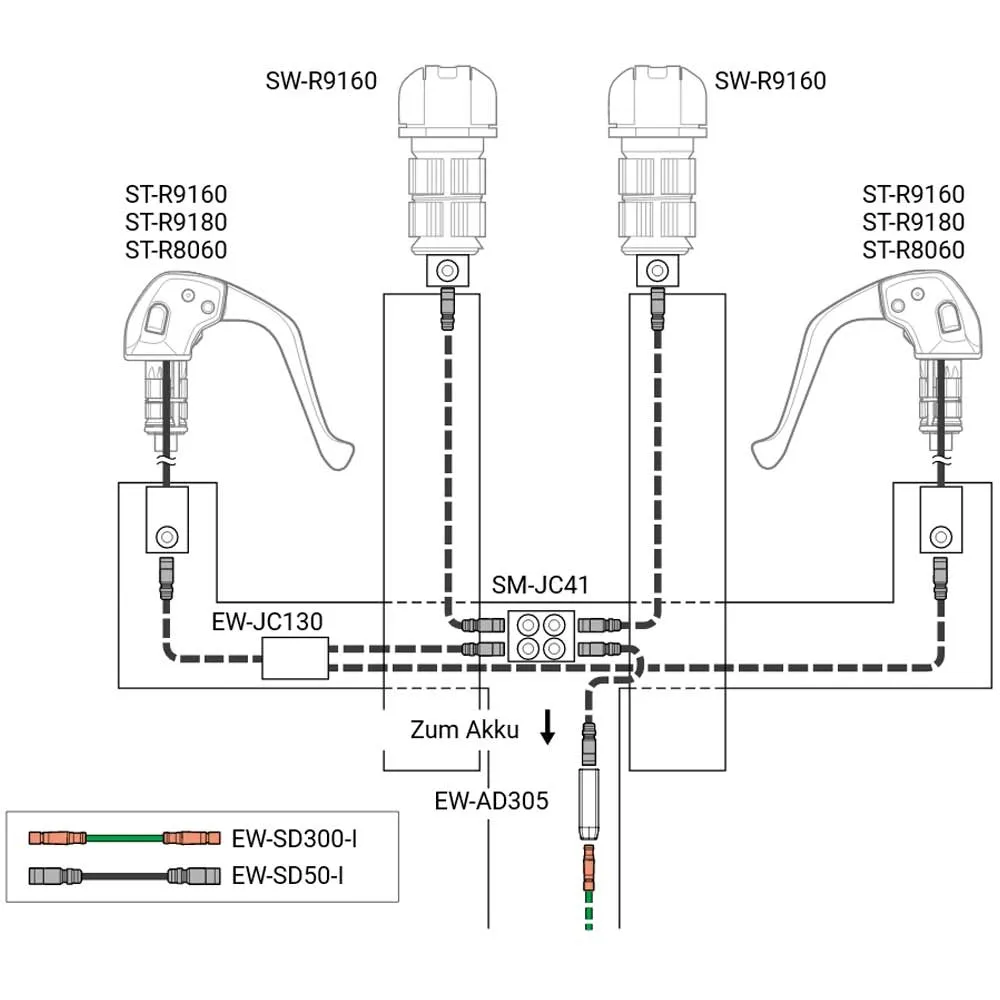

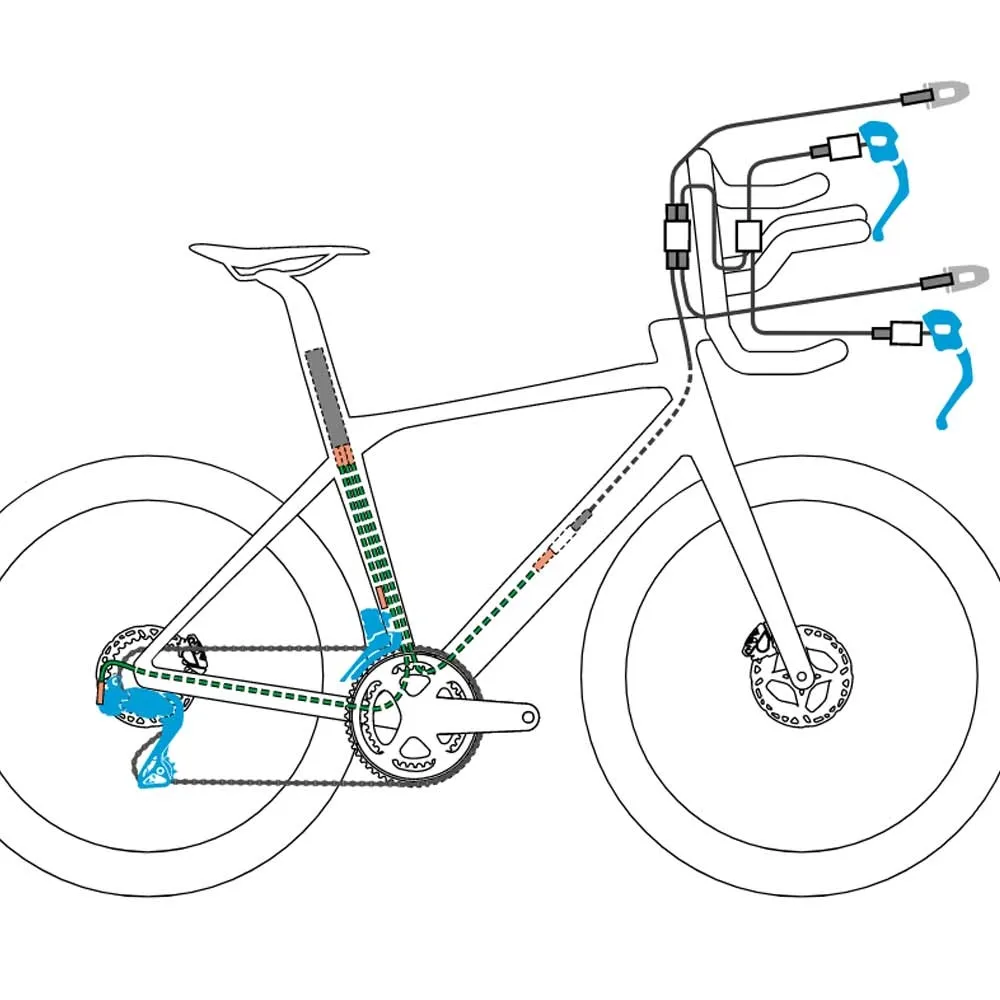

Installing Shimano Di2 components is almost easier than fitting traditional derailleurs. The standardised cable connectors and junction box ensure straightforward and quick installation. The shift levers are connected to Junction Port A on the junction box; a cable runs from Junction Port A to Junction Port B on the junction box, and from there the cables are routed to the rear derailleur, front derailleur and battery. The battery can be mounted externally on the bottle cage or internally in the seat tube or down tube. Frames specifically designed for this purpose are required for internal cable routing.

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
