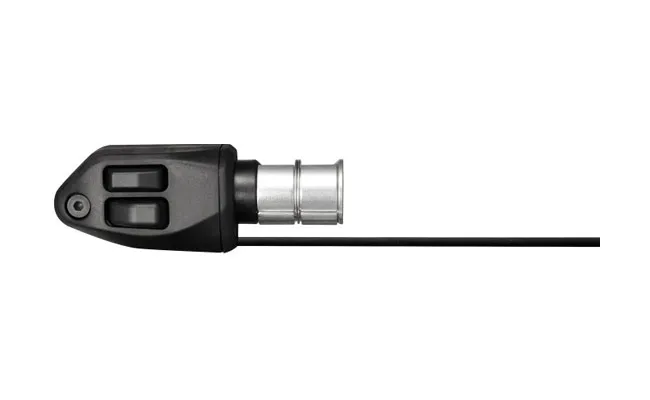

TT Shift Lever Shimano Di2 SW R671
The electronic Shimano time trial shift lever for the Di2 system. The Di2 shift levers SW-671 are mounted on the handlebar ends of the time trial extensions. Optionally, the SW-R610 secondary shifter can also be fitted, allowing the rear gears to be changed quickly and without re-gripping the handlebars in any riding situation. The SW-671 Di2 shifters, with their two-button design, offer the ability to operate the front derailleur and rear derailleur in the aero position
Shimano Di2 SW-R671 Shift Lever Technical Specifications:
- For 11 x 2-speed drivetrains
- Flightdeck SC-770 computer
- Compatible with Di2 Dura-Ace and Ultegra rear derailleurs RD-R9150, RD-9070 – RD-6870 and front derailleurs FD-R9150, FD-9070 – FD-6870
- Weight: 95 g
Shimano Di2 installation:
Installing Shimano Di2 components is almost easier than fitting traditional gear systems. The standardised cable connectors and junction box ensure straightforward and quick installation. The shift levers are connected to Junction Port A on the junction box; a cable runs from Junction Port A to Junction Port B on the junction box, and from there the cables are routed to the rear derailleur, front derailleur and battery. The battery can be mounted externally on the bottle cage or internally in the seat tube or down tube. Frames specifically designed for this purpose are required for internal cable routing.
