Remaining stock

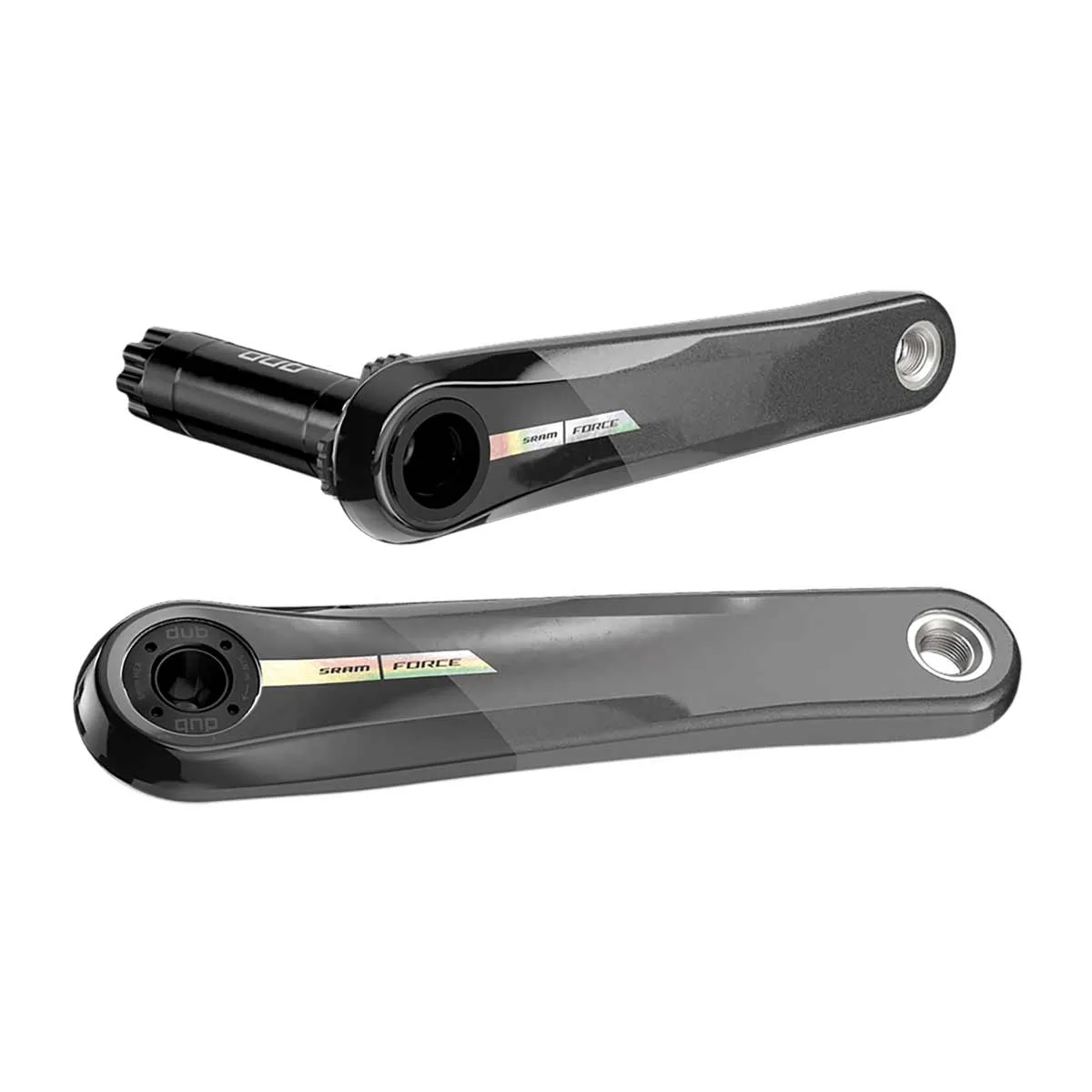

Sram Force Wide AXS Carbon crankset arms, D2 Unicorn Grey / Iridescent, DUB wide axle, chainline 47.5 mm, 12x2 and 12x1-speed, length 175 mm
Sram Force AXS crank arms
The Wide crankset arms with a 47.5 mm chainline for Sram Force eTap AXS components, featuring an 8-bolt mount for Direct Mount chainrings or the Powermeter power measurement unit.
Sram Force AXS crankset:
The crank arms are compatible with Red AXS and Force AXS cranksets and Direct Mount chainrings. The 8-bolt mounting corresponds to the previous mounting for Quarq power metre systems. The SRAM Force AXS carbon crankset for the new eTap AXS groupset, in combination with the new 12-speed cassettes, offers a completely new gear ratio range. The smaller chainrings and the cassette with the wider range provide a greater gear ratio range than previous systems. The result is smoother and faster front shifting and more usable gears. Weighing just 560 grams, the cranks are also very light. The configurations this enables improve cadence and efficiency and ensure crisp, clean and fast gear changes.
SRAM Force Wide AXS DUB crank arm technology:
- Application: Road
- Compatibility: SRAM 12x2/1-speed
- Crank arm material: Hollow carbon
- Direct mount chainring and spider mount
- 8-bolt mounting, Quarq power meter compatible
- Chainline: 47.5 mm
- Dub Wide aluminium crankset axle, diameter 28.99 mm, length 112 mm
- Supplied without DUB bottom bracket
- Required bottom bracket: Sram DUB
Included in delivery:
SRAM Force Wide AXS crank arms, right and left, crank bolt. The bottom bracket is sold separately.
SRAM X Range chainring technology:
The chainrings are individually replaceable and bolted to the Force AXS spindle. The X Range Direct Mount chainrings work perfectly with the Yaw technology of the Force eTap AXS front derailleur, delivering outstanding, smooth shifting. The X-Range chainrings, in combination with the Yaw derailleur, ensure optimum shifting performance. The Direct Mount mount with 8 bolts makes changing the gear ratio a breeze. In addition, the Sram Force AXS cranks offer the option of retrofitting the Quarq Powermeter power measurement crank arm.
SRAM DUB Axle Bottom Bracket System:
The Wide version of the DUB road and gravel cranksets features a longer axle and is designed for a chainline of 47.5 mm. The Wide crankset fits standard road and MTB bottom brackets, allowing frames to accommodate wider gravel tyres.
The SRAM DUB cranks are suitable for all standard bottom bracket shells. You will find the matching bottom brackets below, along with the installation dimensions. The axles have a diameter of 29 mm. Axle play is adjustable via a preloader. The SRAM DUB road bike crankset has its own unique standard and is only compatible with DUB road bike bottom brackets, not with other bottom brackets. SRAM and Wheels Manufacturing offer suitable bottom brackets for almost every bottom bracket standard.
Compatible bottom bracket shells – DUB bottom brackets
- Thread: BSA 1.37x24 TPI, shell width 68 mm,
SRAM DUB Wide bottom bracket, part no. 00.6418.015.004 - Threaded ITA 36 mm x 24 TPI, shell width 70 mm,
SRAM DUB bottom bracket, part no. 00.6418.038.000 - Pressfit BB86, press-fit diameter 41 mm, shell width 86.5 mm,
SRAM DUB Pressfit BB86.5 bottom bracket, part no. 00.6418.025.000 - BB30, press-fit depth 42 mm, shell width 68 mm,
Sram DUB Wide Pressfit BB30 bottom bracket, item no. 00.6418.018.001 - BB30A, press-fit diameter 42 mm, shell width 73 mm, asymmetrical
Sram DUB Wide Pressfit BB30 bottom bracket, item no. 00.6418.027.002 - Pressfit 30, press fit diameter 46 mm, shell width 68–73 mm
, SRAM DUB Pressfit bottom bracket, item no. 00.6418.028.001 - Pressfit 30A, press-fit diameter 46 mm, shell width 73 mm, asymmetrical
Sram DUB Pressfit bottom bracket, item no. 00.6418.028.001 - BB-Right, press fit diameter 46 mm, shell width 79 mm
, SRAM DUB PressFit BB-Right bottom bracket, item no. 00.6418.028.000 - BB386 Evo, press fit diameter 46 mm, shell width 86.5 mm,
SRAM DUB Wide PressFit BB386 bottom bracket, part no. 00.6418.026.005 - T47 Road, thread diameter 47 mm, shell width 68 mm
, SRAM DUB PressFit threaded bottom bracket, Part No. 00.6418.033.002 - T47 Road, thread diameter 47 mm, shell width 77 mm
, SRAM DUB PressFit threaded bottom bracket, part no. 00.6418.033.003 - T47, thread diameter 47 mm, shell width 85.5 mm,
SRAM DUB PressFit threaded bottom bracket, Part No. 00.6418.033.001
