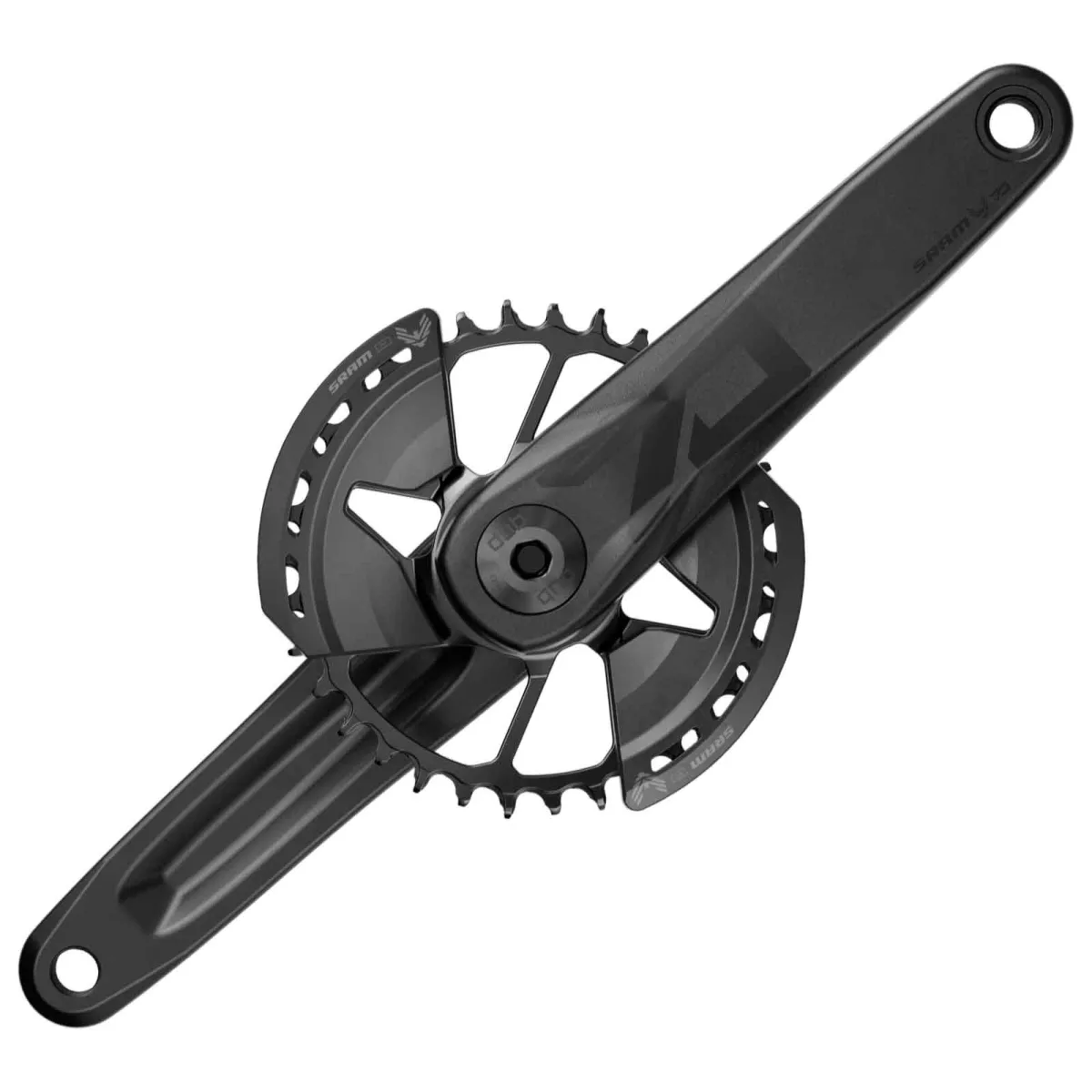

Sram Eagle 70 Transmission Crank

The new Sram Eagle 70 Transmission crankset with the DUB Wide axle system, available in crank arm lengths from 155 mm to 175 mm

Included in delivery:

• Sram Eagle 70 Transmission crank arms with DUB axle system, right and left, 32-tooth chainring, bashguards

Sram Eagle 30 Transmission crankset Specifications and dimensions:

• Intended use: All Mountain, Trail, Enduro, E-bike
• Crankset arm material: Aluminium
• Chainring material: Steel
• Includes bashguards
• Bottom bracket axle: DUB 28.88 mm diameter
• Boost compatible
• Chainline 55 mm
• Q-factor 174 mm
• Weight: 895 grams without bottom bracket, manufacturer’s specification
• Compatibility: 12-speed, T-type chains only
• Supplied without bottom bracket

SRAM EAGLE 70 crankset, FC-70-A1

The new Eagle 70 crankset is the sleek and sturdy answer to the growing demand for robust and aesthetically pleasing components. The Eagle 70 crankset features the proven 3-bolt chainring compatibility and comes with T-type chainrings made from stamped steel with optional bashguards for durability and the best possible protection on the trail.

SRAM DUB Wide Axle Bottom Bracket System:

The Wide MTB cranks have a 3 mm longer axle than the previous DUB MTB Boost cranks. The SRAM DUB cranks are suitable for all standard bottom bracket shells. The axles have a diameter of 28.88 mm. Axle play is adjustable via a preloader. The SRAM DUB cranks have a completely proprietary standard and are only compatible with DUB bottom brackets, not with other standards or bottom brackets.

SRAM Direct Mount T-Type chainring:

Chainrings made from stamped steel for maximum durability, with two bashguards,

SRAM 3-point Direct Mount chainring mount:

The Direct Mount chainrings are fitted with a 3-point bolt pattern and are compatible with all MTB cranksets featuring this mount. Not compatible with Quarq power meters

Compatible bottom bracket shells – DUB bottom brackets

• BSA 1.37x24 TPI thread, shell width 68–73 mm
  Sram DUB Wide MTB bottom bracket Part No. 00.6418.015.005
• BSA 1.37x24 TPI thread, Super Boost+ 73 mm shell width
  , SRAM DUB bottom bracket, part no. 00.6418.019.000
• BSA 1.37x24 TPI thread, Super Boost+ 73 mm shell width for E-type derailleurs,
  Sram DUB bottom bracket, Part No. 00.6418.015.005
• Pressfit BB92 press-fit diameter 41 mm, shell width 68–73 mm,
  SRAM DUB Wide MTB Pressfit BB92 bottom bracket, part no. 00.6418.016.005
• Pressfit BB92, press-fit depth 41 mm, shell width Super Boost+ 92 mm
  , SRAM DUB Wide MTB Pressfit BB92 bottom bracket, part no. 00.6418.020.000
• BB30, press-fit depth 42 mm, shell width 73 mm,
  SRAM DUB Wide MTB BB30 bottom bracket, item no. 00.6418.017.004
• Pressfit 30, press-fit diameter 46 mm, shell width 73 mm,
  SRAM DUB Pressfit 30 bottom bracket, item no. 00.6418.018.006
• Pressfit 30, press-fit diameter 46 mm, shell width 83 mm
  Sram DUB Pressfit 30 bottom bracket Part No. 00.6418.028.006
