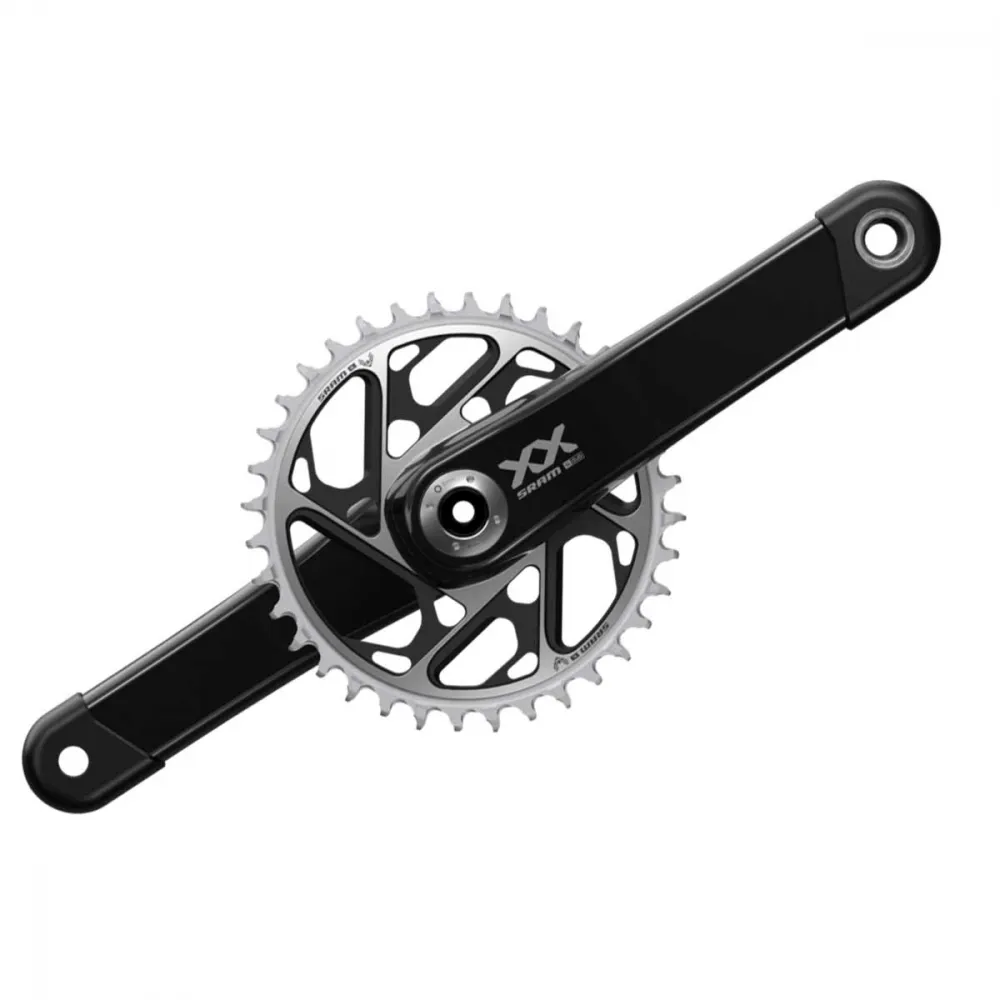

Sram XX SL Eagle Transmission Crankset

The new Sram XX SL Eagle Transmission crankset with the DUB Wide axle system, ultra-strong, incredibly lightweight hollow-core carbon fibre construction, power meter retrofittable

Included in delivery:

• Sram XX SL Eagle crank arms, right and left, Q-factor 168 mm, 34-tooth chainring

Sram XX SL Eagle Transmission crankset technical data:

• Intended use: Cross Country
• Chainring material: 7075-T6 aluminium, anodised
• Bottom bracket axle: DUB 28.88 mm diameter
• Boost compatible
• Chainline 55 mm
• Q-factor: 168 mm
• Crank arm material: Hollow-core carbon
• Weight: 475 grams, manufacturer’s specification
• Compatibility: 12-speed, T-type chains only
• Supplied without bottom bracket

Sram XX SL Eagle crankset, FC-XX-SL-D1:

With multiple World Championship medals, EWS series victories and Olympic gold medals, the XX Eagle DUB crankset has proven itself to be the ultimate choice. Inside, it features an ultra-strong yet ultra-light hollow-core carbon fibre design – the lightest ISO-certified crankset on the market with maximum stiffness for title-winning performance. Combine it now with the impressive new XX SL Eagle Transmission T-Type Direct-Mount chainring and you’ll turn heads, as it looks completely different from anything we’ve seen before.

With multiple World Championship medals, EWS series victories and Olympic gold medals, the XX Eagle DUB crankset has proven itself to be the ultimate choice. Inside, it features an ultra-strong yet ultra-light hollow-core carbon fibre design – the lightest ISO-certified crankset on the market, offering maximum stiffness for title-winning performance. Now, when you combine it with the impressive new XX SL Eagle Transmission T-Type Direct-Mount chainring, you’ll turn heads, because it looks completely different from anything we’ve seen before.

SRAM DUB Wide Axle Bottom Bracket System:

The Wide MTB cranks have a 3 mm longer axle than the previous DUB MTB Boost cranks. The SRAM DUB cranks are suitable for all standard bottom bracket shells. The axles have a diameter of 28.88 mm. Axle play is adjustable via a preloader. The SRAM DUB cranks have their own unique standard and are only compatible with DUB bottom brackets, not with other standards or bottom brackets.

SRAM Direct Mount T-Type Chainring:

The teeth feature the T-Type Narrow Wide profile. This prevents the chain from coming off, even without a chain guide. Compatible only with SRAM Wide cranks and T-Type chains from the Transmission series. The T-Type Direct Mount chainrings are bolted directly onto the crankset using the 8-point bolt pattern. The 8-point bolt pattern is also compatible with SRAM Quarq power meter spindles. Specially developed for the Eagle T-Type chain and drivetrain, it offers significantly quieter performance and exceptional durability. Dirt is removed more easily. The chainring teeth are longer and shaped like a saw blade to engage perfectly with the Eagle chain. The new chainring profile thus increases chain tension and pedalling efficiency. At the same time, friction, chain noise and wear are reduced.

SRAM 8-bolt Direct Mount chainring mount:

The Direct Mount chainrings are fitted with the 8-point bolt pattern and are compatible with all MTB cranksets featuring this mount.

Compatible bottom bracket shells – DUB bottom bracket

• BSA thread 1.37x24 TPI, shell width 68–73 mm
  Sram DUB Wide MTB bottom bracket, part no. 00.6418.015.005
• BSA 1.37x24 TPI thread, Super Boost+ 73 mm shell width
  , SRAM DUB bottom bracket, Part No. 00.6418.019.000
• BSA 1.37x24 TPI thread, Super Boost+ 73 mm shell width for E-type derailleurs,
  Sram DUB bottom bracket, Part No. 00.6418.015.005
• Pressfit BB92 press-fit diameter 41 mm, shell width 68–73 mm,
  SRAM DUB Wide MTB Pressfit BB92 bottom bracket, part no. 00.6418.016.005
• Pressfit BB92, press-fit depth 41 mm, shell width Super Boost+ 92 mm
  , SRAM DUB Wide MTB Pressfit BB92 bottom bracket, part no. 00.6418.020.000
• BB30, press-fit depth 42 mm, shell width 73 mm,
  SRAM DUB Wide MTB BB30 bottom bracket, item no. 00.6418.017.004
• Pressfit 30, press-fit diameter 46 mm, shell width 73 mm,
  SRAM DUB Pressfit 30 bottom bracket, item no. 00.6418.018.006
• Pressfit 30, press-fit diameter 46 mm, shell width 83 mm
  Sram DUB Pressfit 30 bottom bracket Part No. 00.6418.028.006
