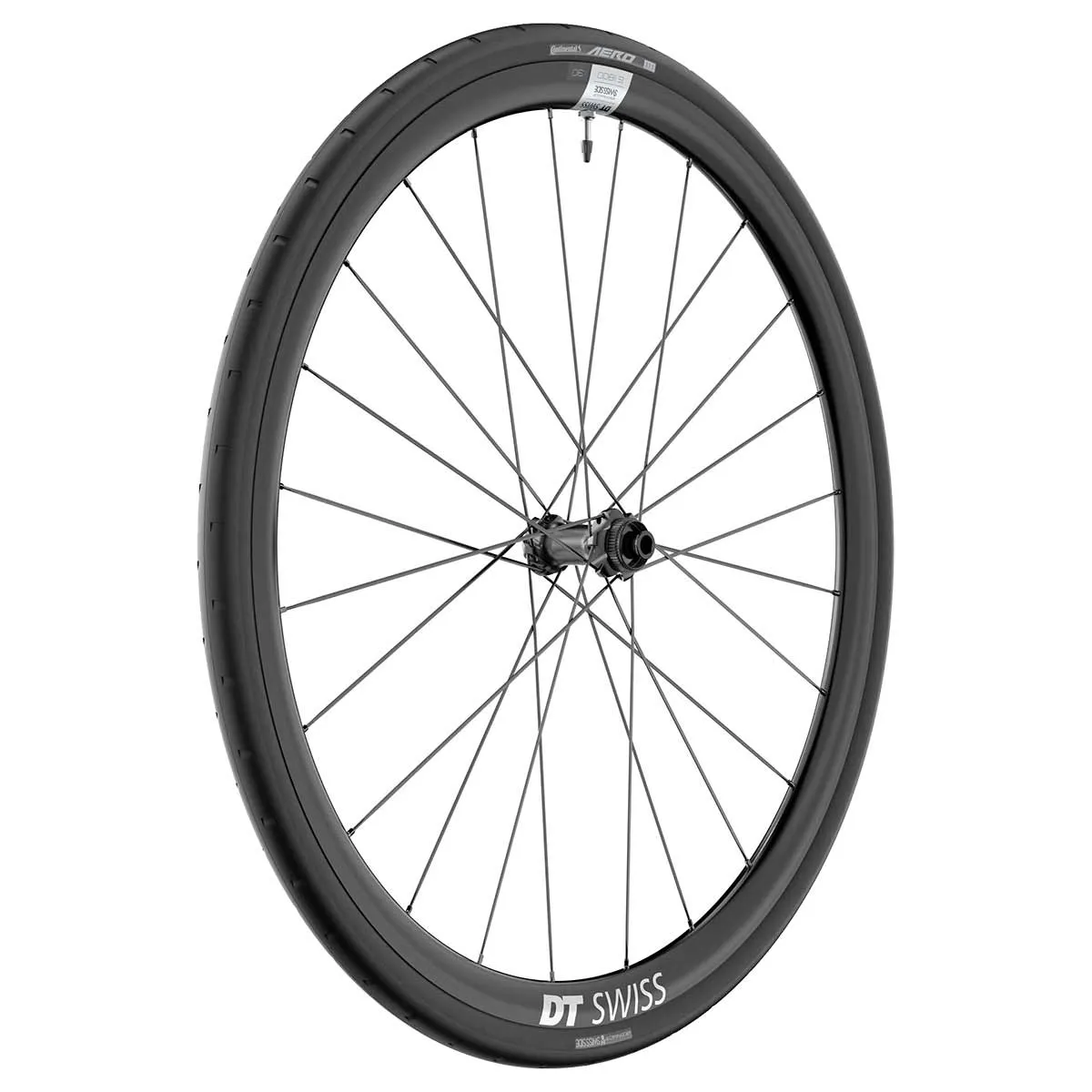

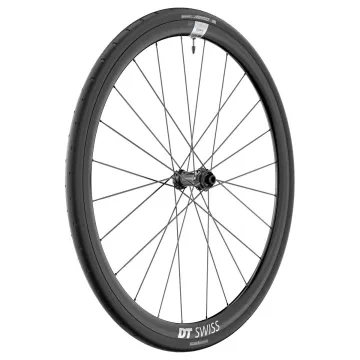

DT Swiss E 1800 SPLINE 30 db WTS wheelset

The affordable Endurance wheels, DT Swiss E 1800 Spline DB, featuring the new 30 mm high Aero+ rims

THE ULTIMATE WHEEL TIRE SYSTEM

The Aero 111 tyre is the perfect result of the collaboration between DT Swiss, Continental and Swiss Side. The patented tread with specially designed aero segments reduces air resistance and thus optimises the gliding effect. Furthermore, the AERO 111 scores highly with outstanding grip, minimised rolling resistance and excellent puncture protection.

With a 22 mm rim width and 30 mm Aero Plus rims, the DT Swiss 1800 2Spline 30 Disc wheelsets are fast endurance and all-road wheels for road and light off-road use. Also perfectly suited for touring and travel bike use. Equipped with DT Swiss Spline 370 straight-pull hubs, lightweight and sturdy 30 mm high rims with a 2 mm rim width and Ratchet LN freehub bodies. The wide Aero aluminium rim for tyre widths up to 45 mm offers comfort and safety on all surfaces.

Included:

• DT Swiss E 1800 Spine DB 30 front wheel, DT Swiss end caps as selected, tubeless rim tape, tubeless valve, Continental Aero 111 tyre 29 mm wide, Continental Butly inner tube, pre-assembled

DT Swiss E 1800 Spline DB 30 wheel technology:

• For folding and clincher tyres, clincher tubeless ready
• ETRTO: 622 x 22 / 700C / 28 inches

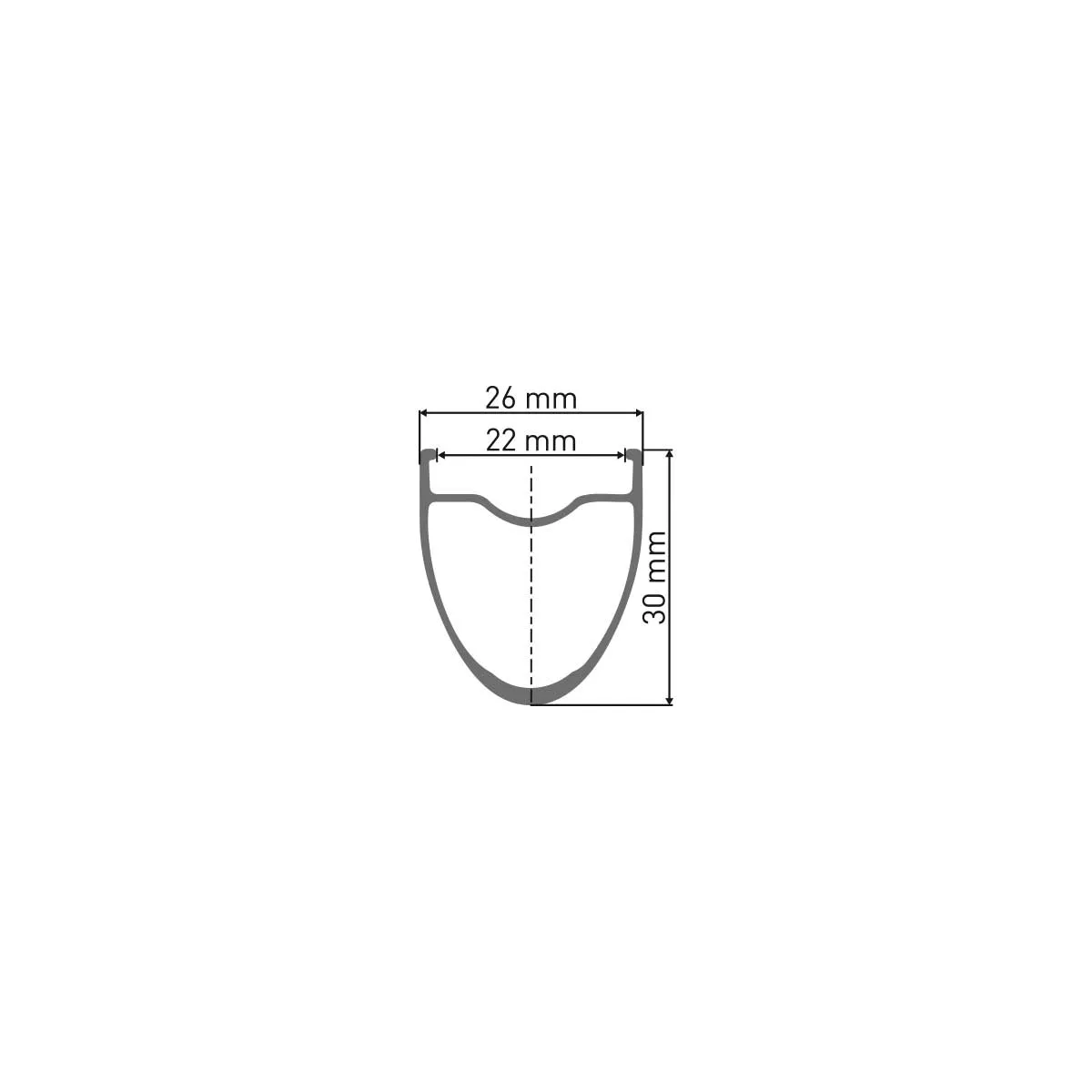

• Rim width 26 mm, height 30 mm, rim depth 22 mm
• Rim type: Hooked / Crochet tubeless TC, tubeless ready
• DT 370 Spline hub with Swiss steel ball bearings and Ratchet LN 18 freehub
• Spokes: butted, cold-forged Aero Comp Wide flat spokes
• Nipples: DT Swiss Prolock aluminium special nipples
• Lacing pattern: 2-cross
• Number of spokes: 24/24 per wheel
• DT Swiss 370 Spline front wheel hub, Disc Centerlock, convertible
• Weight from 1,880 grams, as specified by the manufacturer
• Recommended maximum system weight 130 kg
• ASTM classification 2
• Maximum air pressure: 7 bar

DT Swiss WTS, Wheel Tire System:

When Swiss Side’s aerodynamic expertise, Continental’s tyre know-how and DT Swiss’s wheel expertise come together, the result is not just the AERO 111 tyre, but a perfected storm. Specially designed aero chambers form the basis for the tyre’s patented tread pattern and generate a turbulent airflow on the surface, which keeps the oncoming air flowing along the rim shape for longer. The result is an optimisation of the sail effect, which delays early flow separation from the rim and thus forms the basis for the most advanced aero wheel-tyre system. It doesn’t matter whether you or your friends are aiming for personal bests or competing in professional races: The tyre reduces wind resistance whilst improving handling and ride characteristics, propelling you forward. Ideal for our Aero and Endurance wheelsets with their various rim heights, the AERO 111 front tyre is available in 26 mm and 29 mm widths. If you want to save every watt to reach new top speeds, you’ll love the Aero WTS combinations with the 26 mm wide tyre, which minimise air resistance. For those looking to cover long distances, the Endurance WTS with its 29 mm tyre and optimised aerodynamics will help you save valuable energy and ride longer than ever before.

Continental Aero 111:

AERO 111: The next generation of aerodynamic road tyre performance, developed in close collaboration with the experts at DT Swiss and Swiss Side. The AERO 111 is based on the race-proven technologies of the GP5000 TR series and sets new standards in aerodynamics. The race-optimised Black Chili Compound ensures excellent grip and lower rolling resistance, whilst the proven Vectran Breaker provides puncture protection. The patented, aerodynamically optimised tread design features 48 precision-moulded air chambers. These so-called ‘vortex generators’ create controlled turbulence, causing the airflow to cling to the rim for longer, which reduces drag and optimises handling in crosswinds.

DT Swiss 1800 Spline Disc Hubs:

Equipped with a Centerlock mount, the DT Swiss 1800 Spine Straightpull Disc hubs from the DT 370 series are compatible with all types of brake discs; adapters for 6-bolt brake discs are available as an option. The DT Swiss Spline Disc hubs, featuring an optimised hub shell for straight-pull spokes and the proven Ratchet LN 18 freehub system based on the classic DT Swiss 370 hubs, are exceptionally durable; the rear hubs can be serviced without tools.

DT Swiss Straight Pull Spokes

To achieve an ideal balance between weight and stability, only the highest-quality Aero Comp Wide straight-pull spokes are used in the Spline wheelsets. They are more stable than conventional spokes yet can still be trued and replaced using standard tools.

DT Swiss E 1800 Spline 30 Disc rims

30 mm height and Aero+ design ensure optimum aerodynamics. The rim, with a 22 mm rim width, also allows for the fitting of wider tyres for maximum comfort. The high-quality rim is lightweight and stable. The Hooked / Crochet tubeless TC rim profile keeps the tyres securely on the rim. The rims are supplied with tubeless rim tape already fitted.

DT Swiss Ratchet LN freehub body:

The proven DT Swiss Star Ratchet LN system with the toothed freehub body allows for easy conversion to various axle or rotor standards. The DT Swiss Ratchet LN rear hubs can be easily converted to fit the mounts commonly used by different cassette systems.

Spare parts DT Swiss E 1800 SPLINE 25 db 12/100 mm front wheel

• Tubeless ready tape 25 mm / 10 m black, Item No: TVX2510S29809S
• Tubeless valve, aluminium, black, for 26–35 mm rim height, Item No.: TVVXA42S25868S
• Ball bearing 6902 Ø 15/28x7mm, B.BEARING 6902 ESB/ESNB L, Item No: HHSBXXX00N2336S
• Spacer sleeve Ø15.2/19x57.2mm, DBCL, SPACER, Item No: HXD00000N6017S
• DT aluminium nipple hidden Pro Lock silver, Item No: NPAF20120N01000
• Spokes, left: DT Aero comp wide straight pull BLACK 2.0/1.0 x 290 2.8mm wide, Item No: SACS20290S00200274
• Right-hand spokes: DT Aero Comp Wide Straight Pull Black 2.0/1.0 x 292 mm, Item No.: SACS20292S00200274
• Compatible replacement rim: DT Swiss E 550 700c 30 mm DB VI, Item No: RDE055CDPW24SA2411

Compatible endstops for DT Swiss front hub Type 370 Disc Road:

• Quick-release mounting 9x100 mm, Item No: HWGXXX00S3801S
• Thru-bolt mounting 9x100 mm, Item No: HWGXXX00S3803S
• Thru-axle mount 12x100 mm, Item No: HWGXXX00S6885S
• Thru-axle mount 15x100 mm, Item No: HWGXXX0004785S
• 31mm Torque Cap thru-axle fitting 15x100 mm, Item No: HWGXXX0009100S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
