Wide Sram XX1 Eagle Dub Cranksets | FC-XX-1-C2

The Sram XX1 Eagle Wide MTB Dub crankset arms feature a Quarq mount. Thanks to the 8-point bolt pattern, these crankset arms are compatible with Quarq Power Meter units.

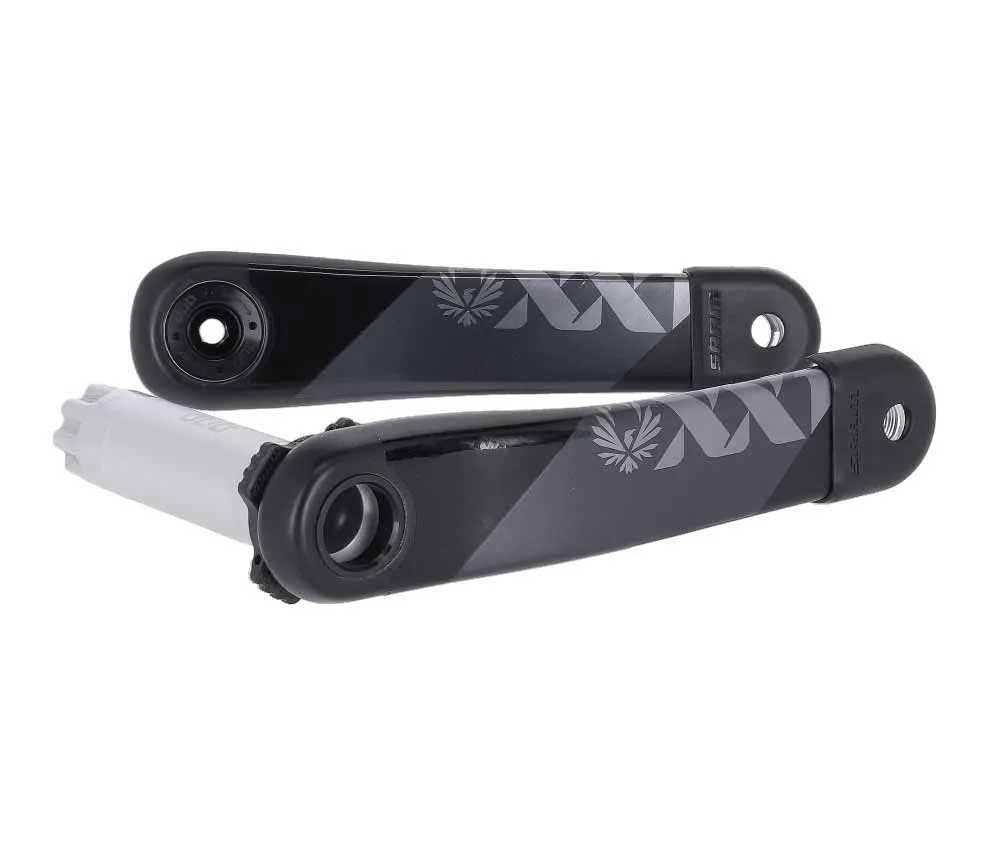

Sram XX1 Eagle Wide Crank Dub

For new frames and bikes with wide rear triangles, the Sram XX1 cranks feature a 55 mm chainline and 174 mm Q-factor. The XX1 Eagle Dub crankset, now significantly lighter at 430 grams, features lightweight cross-country cranks with carbon-tuned coating that are exceptionally sturdy and light. Thanks to the Direct Mount chainring mount, they are compatible with both standard and Boost drivetrains. The different chainlines, 49 and 52 mm, are achieved through the different chainring offsets. The Direct Mount chainring mount, designed for simplified chainring changes, allows for quick installation of SRAM Direct Mount chainrings. With the eight-point bolt pattern, the XX1 Eagle crankarms are also compatible with Quarq power meter cranksets.

SRAM Quarq 8-point mounting:

This mount allows the Quarq power meters to be fitted. Not compatible with SRAM Direct Mount chainrings.

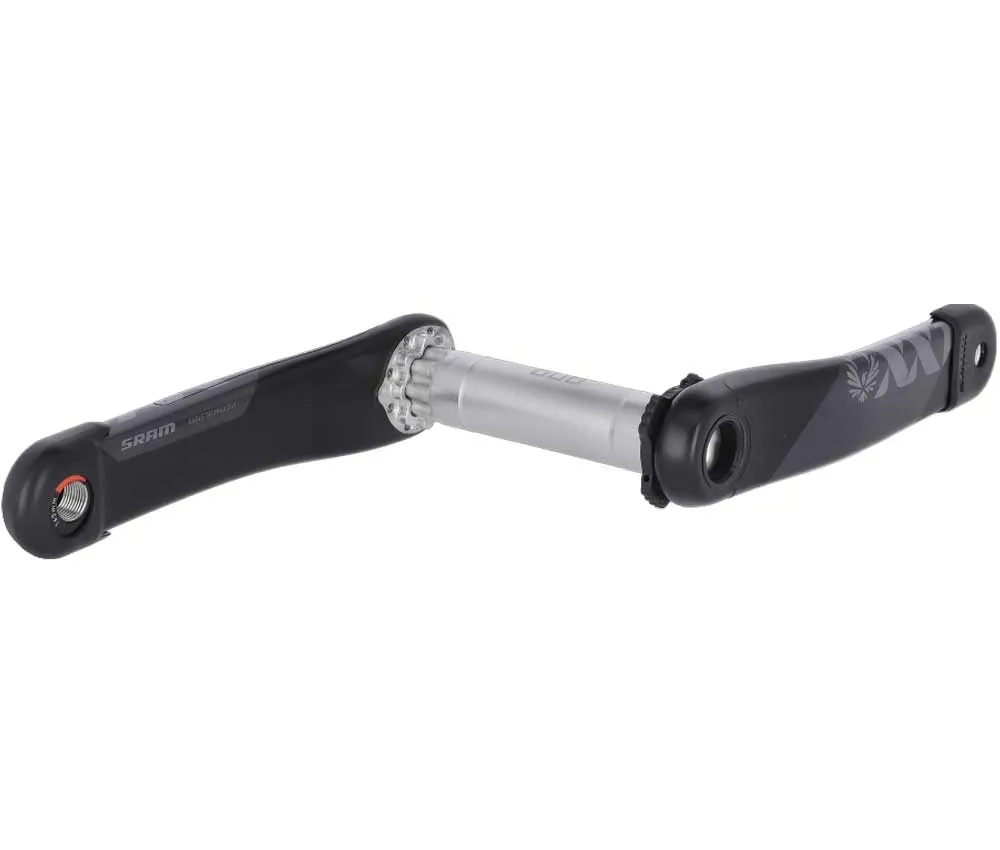

SRAM DUB axle-bottom bracket system:

The DUB version of the SRAM cranks is suitable for BSA threaded, PressFit BB92, PressFit 30 and BB30 bottom bracket shells. You will find the compatible bottom brackets further down in the text. The axles have a diameter of 29 mm and a length of 113 mm. Axle play is adjustable via a preloader. The SRAM DUB cranksets have their own proprietary standard and are only compatible with DUB bottom brackets, not with other standards or bottom brackets.

SRAM Quark XX1 Eagle Powermeter Wide Crankset Technical Specifications:

• Bottom bracket axle DUB SL
• Chainline 55 mm
• Q-factor 174 mm
• Crank arm material: Carbon
• Quarq power meter mount, 8-point bolt-on
• Compatible with Quarq power meter system
• Crankset arm material: Hollow carbon
• Compatibility: 11-speed and 12-speed
• Supplied without bottom bracket

Included: Sram XX1 Eagle Wide crank arms, right and left, without chainring

Compatible bottom bracket shells – DUB Wide bottom bracket

• Thread: BSA 1.37x24 TPI; shell width: 68–73 mm
• SRAM DUB Wide bottom bracket, part no. 00.6418.015.005
• Pressfit BB92 press-fit diameter 41 mm, shell width 68–73 mm
• Sram DUB Wide Pressfit BB92 bottom bracket, part no. 00.6418.016.005
• BB30, press-fit dimension 42 mm, shell width 68–73 mm
• Sram DUB Wide BB30 bottom bracket Part No. 00.6418.017.004
• Pressfit 30, press-fit diameter 46 mm, shell width 68–73 mm
• Sram DUB Wide Pressfit 30 bottom bracket Part No. 00.6418.018.006
