Shimano SLX FC Crank - M7100 - 1

The SLX crank arms for cross-country marathon to all-mountain use, compatible with 1 or 2 chainrings

The affordable Shimano SLX 12-speed components, the simpler version featuring the technology of the XT and XTR series, designed for use ranging from cross-country to enduro. The SLX components designated 7100 are designed for 1x12 and 1x12-speed drivetrains. The new Deore SLX M7100 series boasts a host of technical highlights, including Shimano’s groundbreaking 12-speed Micro Spline cassettes, available with a range of 10–45 or 10–51 teeth, 1x12 or 2x12-speed Hollowtech II cranksets, powerful two- and four-piston brakes, I-Spec EV shifters, 12-speed rear derailleurs and front derailleurs.

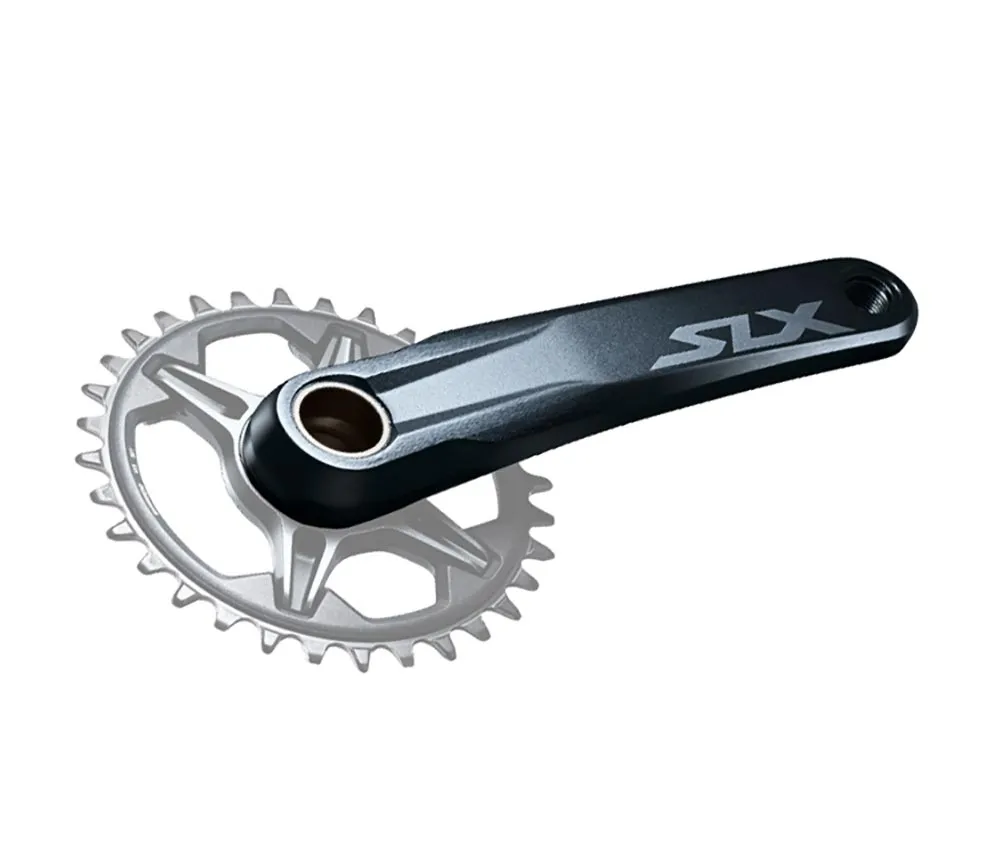

Shimano SLX FC-M7100 crankset

The new Deore SLX 1x12-speed Hollowtech II crankset with the proven stability of Shimano cranks. On the chainrings, DYNAMIC CHAIN ENGAGEMENT + technology, with its alternating wider and narrower teeth and specially precision-machined tooth profile, ensures that the chain is held securely on the chainring at the top, but is released just as easily, smoothly and quietly at the bottom as it runs down, guaranteeing both safety and efficiency. Thanks to the Direct Mount attachment, the chainrings can also be fitted quickly and easily, allowing them to be swapped out rapidly for different riding scenarios. With 28, 30, 32, 34 and 36 teeth, there are five chainring options available for every terrain and every fitness level.

Shimano Direct Mount chainring mount:

The new SLX 1x12-speed cranksets now also feature the Shimano Direct Mount chainring mount. This makes it easy to change the chainrings. The TL-FC41 tool is required for removing and fitting the chainring. The XT SMCRM85 and XTR SMCR95 chainrings can be used

Shimano SLX FCM 7100 crankset technology:

• Hollow-forged aluminium crank arms
• 24 mm Hollowtech II steel axle
• Chainring / spider mount: Shimano Direct Mount
• Chainline 52 mm
• Q-factor 172 mm
• Weight approx.: 631 grams with 32 chainring, manufacturer’s specification

Included in delivery: SLX crank arms:

Shimano SLX FC M7100 crank arms, right and left, crank bolt

Compatible bottom bracket shell / bottom bracket:

• BSA thread: BC - 1.37 x 24T, bottom bracket width 68–73 mm, Shimano BBMT800B bottom bracket
• Pressfit 92: Press-fit diameter 41 mm, bottom bracket width 89.5–92 mm, Shimano BBMT800PA bottom bracket
• BB30 OS: Press-fit diameter 42 mm, bottom bracket width 84.5 mm, Shimano SMBB9142A bottom bracket
• BB30: Press-fit depth 42 mm, bottom bracket width 68–73 mm, compatible bottom bracket cups
  Wheels Outboard Item No.: BB30-OUT
• BB30A: Press-fit depth 42 mm, bottom bracket width 73 mm asymmetrical, compatible bottom brackets:
  Wheels Outboard Item No.: BB30A-OUT-SHIM
• Pressfit 30: Press-fit diameter 46 mm, bottom bracket width 68–73 mm, compatible bottom brackets:
  Wheels Outboard Item No.: PF30-OUT
• Pressfit 30A: Press fit 46 mm, bottom bracket width 73 mm asymmetrical, compatible bottom brackets:
  Wheels Outboard Item No.: PF30A-OUT-SHIM
• BBright: Press fit 46 mm, bottom bracket width 79 mm, compatible bottom brackets:
  Wheels Outboard Item No.: BBRIGHT-OUT-1
• 386EVO: Press fit 46 mm, bottom bracket width 86.5 mm, compatible bottom brackets:
  Wheels Outboard Item No.: 386EVOBB-SHIMAC
• Trek BB90/95 press-fit 37 mm, bottom bracket width 90/95 mm, compatible bottom brackets:
  Wheels replacement bearings Part No: SB-24X37 plus seals and spacers Part No: SHIM-SPACER-PK
• T47 thread: M47x1, bottom bracket width 68–132 mm, compatible bottom brackets:
  Wheels Outboard Item No.: T47-BB-SHIM-AC

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
