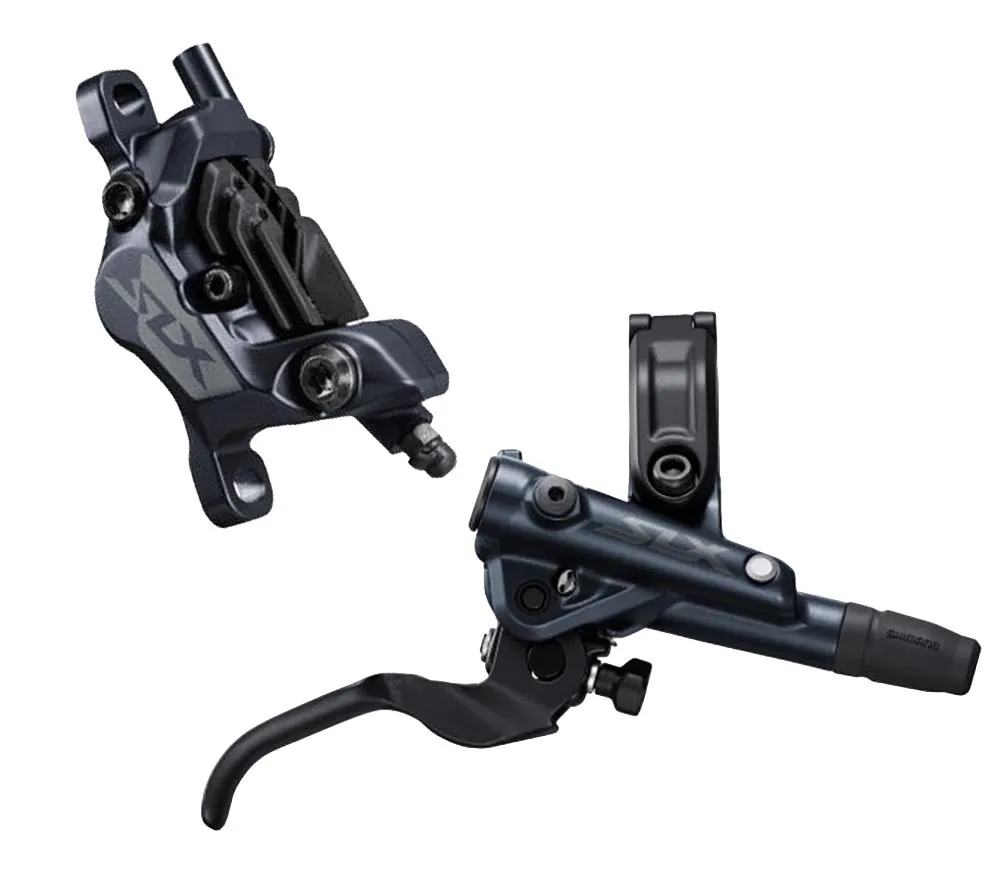

Shimano SLX Disc Brake M7120 I Spec EV

The Shimano SLX Disc M7120 disc brake with a 4-piston caliper for all-mountain and enduro use.

The Shimano SLX Disc M7100 disc brake. New I-Spec EV mount for 12-speed XT, SLX and XTR I-Spec EV shift levers, high braking power, excellent heat dissipation, easier bleeding, ergonomic brake lever design, high-strength SM-BH90-SBM disc brake hose

Shimano SLX M7100:

The affordable Shimano SLX 12-speed components, the simpler version featuring the technology of the XT and XTR series, designed for use ranging from cross-country to enduro. The SLX components designated 7100 are designed for 1x12 and 1x12-speed drivetrains. The new Deore SLX M7100 series boasts a host of technical highlights, including Shimano’s groundbreaking 12-speed Micro Spline cassettes, available with a range of 10-45 or 10-51 teeth, 1x12 or 2x12-speed Hollowtech II cranksets, powerful two- and four-piston brakes, I-Spec EV shift levers, 12-speed rear derailleurs and front derailleurs.

Shimano Deore SLX Brake Lever BL M7100:

The SLX BLM 7100 brake levers, featuring a 1.5-finger lever for ergonomic handling, are suitable for direct mounting and I-Spec EV shifters. The Shimano Deore SLX brake levers operate both caliper versions with a single model and feature Shimano’s Servo-Wave technology. Furthermore, the free travel has been reduced once again, resulting in an even more direct response. The brake levers follow the design of the XT and XTR brake levers and are also mounted at an angle rather than parallel to the handlebars, so that they are supported at a second point on the handlebars in addition to the clamp, making them significantly stiffer than before. For individual adjustment, the levers are equipped with a tool-free reach adjustment.

Shimano Deore SLX brake caliper BR M7120:

The SLX brake calipers always feature a Post Mount caliper and an adapter suited to the disc size and fork. The Deore SLX brakes are available both as XC-specific two-piston brakes and as four-piston brakes for trail/enduro. The four-piston version is a completely new development, whose design is based on its big sister from the XTR M9100 and XT M8100 series, with which it also shares the N03A brake pads (resin with cooling fins) and N04C brake pads (metal with cooling fins). It is also compatible with the D03S pads (resin without cooling fins) and D02S pads (metal without cooling fins).

Shimano I Spec EV:

The new I-Spec version of the Shimano XTR shifters and brakes offers a wide adjustment range – 14 mm laterally and 60 degrees of rotation – ensuring optimal shifting ergonomics. With the I-Spec EV version, the shifter can be mounted on XTR M9100/9120 brake levers in a space-saving manner. Furthermore, mounting via the new standard offers a 14-millimetre lateral adjustment range, and the shifter can also be rotated by 60 degrees. The new I-Spec EV version is not compatible with older brakes.

Shimano Deore SLX BL M7100 - BR M7120 Disc Brake Technology:

• Aluminium 4-piston brake caliper BR M7100, Post Mont 6
• N03A brake pads
• Adjustable reach
• N03A brake pads
• Weight of BR M7100 caliper with BL M7100 lever and hose: 318 grams
• Compatible brake pads: Shimano N03A, N04C, D03S and D02S
• Brake hose SM-BH90-SBM
• Hose length 170 cm

Included with the Shimano Deore SLX disc brake:

Shimano SLX Disc brake levers BL M7100 (right), brake caliper BR M7120 including brake pads with SM-BH90-SBM brake hose. Oil not included; the brakes are not pre-assembled or bled. Screws, washers, spare hose nipples and hose sleeves are included.

The Shimano SLX Disc is supplied with Post Mount 6 brake calipers.

You can order the correct adapter for your fork and brake disc size separately

IS 2000: Side-mounted. An adapter is always required for fitting the Shimano SLX Disc BR-M7100; maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Common on older suspension forks and almost all rear triangle designs

Post Mount, PM5: Direct mounting without an adapter for the Shimano XT Disc BR-M8100 with 140 mm brake discs. Maximum 180 mm, minimum 140 mm disc size. Currently only found on rear triangle frames

Post Mount, PM6: Direct mounting of the Shimano SLX Disc BR-M7100 with 160 mm brake discs without an adapter. Maximum 203 mm, minimum 160 mm on the fork and 140 mm disc size on the frame. Currently the most common standard on forks, and on some rear triangle frames.

Post Mount, PM7: Direct mounting without an adapter of the Shimano SLX Disc BR-M7100 with 180mm brake discs. Maximum 203mm, minimum 180mm disc size. 140 and 160 mm disc sizes are not possible. Found on some enduro suspension forks such as the Magura Thor and on some rear triangle frames such as the Liteville 301.

Post Mount, PM8: Direct mounting without an adapter for the Shimano SLX Disc BR-M7100 with 203mm brake discs. Can only be used with 203mm brake discs. Found only on downhill suspension forks and frames
