Shimano Deore XT RD-M8100 Rear Derailleur Spare Part

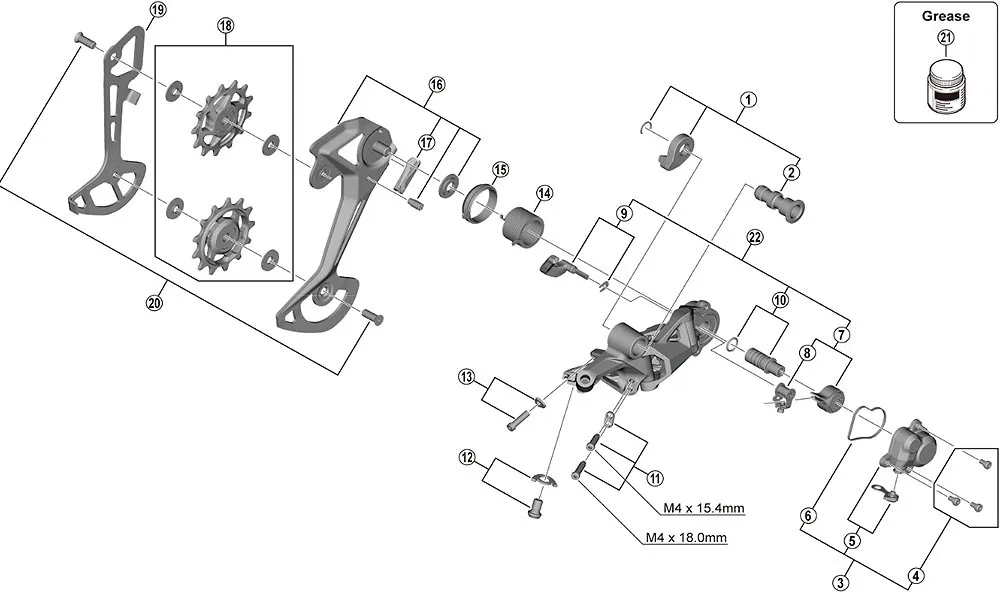

Item No. 19 in the exploded view. Centre-to-centre distance between derailleur pulley screws: 9.5 cm

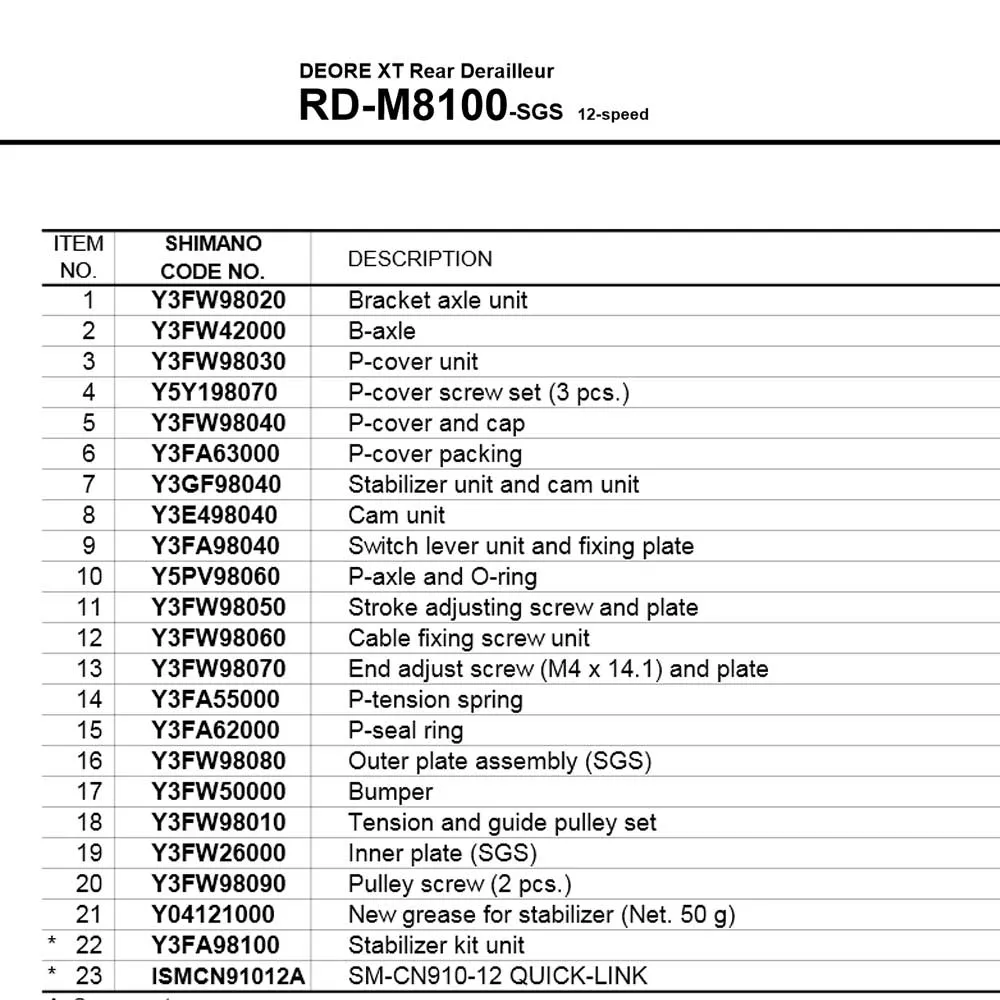

Shimano Deore XT RD-M8100 rear derailleur spare parts:

• No. 1: Y3FW98020 – Rear derailleur hanger axle assembly
• No. 2: Y3FW42000 – Rear derailleur hanger axle
• No. 3: Y3FW98030 – Housing unit
• No. 4: Y5Y198070 – Housing cover screws
• No. 5: Y3FW98040 - Housing cover + cap
• No. 6: Y3FA63000 - Seal
• No. 7: Y3GF98040 - Stabiliser unit
• No. 8: Y3E498040 - Cam unit
• No. 9: Y3FA98040 - Gear lever assembly
• No. 10: Y5PV98060 - Shift shaft assembly
• No. 11: Y3FW98050 - Stop screws + plate
• No. 12: Y3FW98060 – Shift cable clamping screw + plate
• No. 13: Y3FW98070 – Adjustment screw for tension spring + plate
• No. 14: Y3FA55000 - Tension spring
• No. 15: Y3FA62000 - Sealing ring
• No. 16: Y3FW98100 – GS outer chain guide plate, complete, shift rollers, bolt spacing 80 mm
• No. 16: Y3FW98080 – SGS outer chain guide plate, complete, shift rollers, bolt spacing 96 mm
• No. 17: Y3FW50000 – GS/SGS impact protection
• No. 18: Y3FW98010 - Set of shift rollers

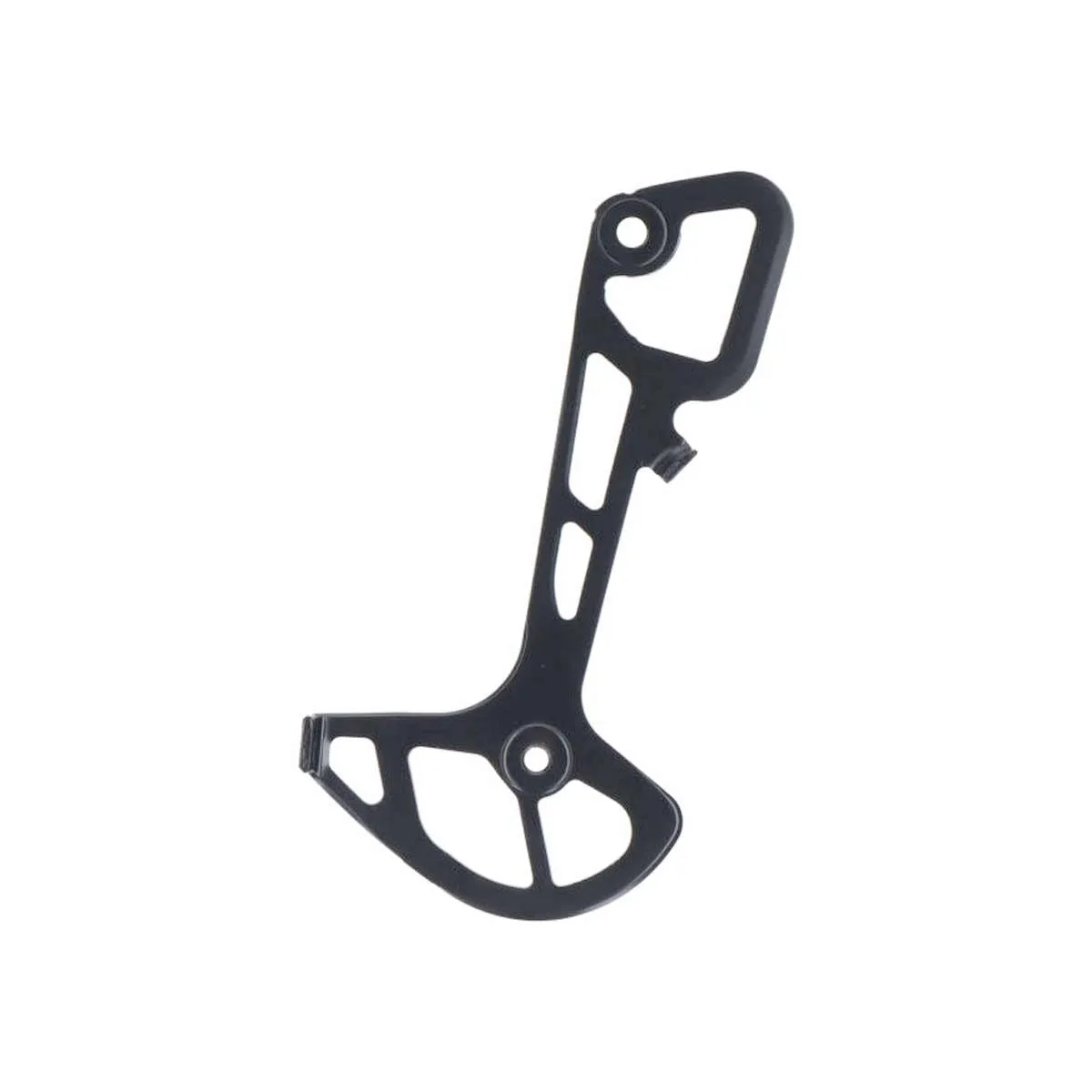

• No. 19: Y3FW16000 – GS inner chain guide plate, sprocket roller bolt spacing 80 mm
• No. 19: Y3FW26000 - SGS inner chain guide plate, sprocket roller bolt spacing 96 mm
• No. 20: Y3FW9809 - Shift roller screws
• No. 21: Y04121000 - Special grease for stabiliser
• No. 22: Y3FA98100 - Stabiliser kit unit

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
