Shimano Saint RD-M820 spare parts

All spare parts can be found under the listed item numbers.

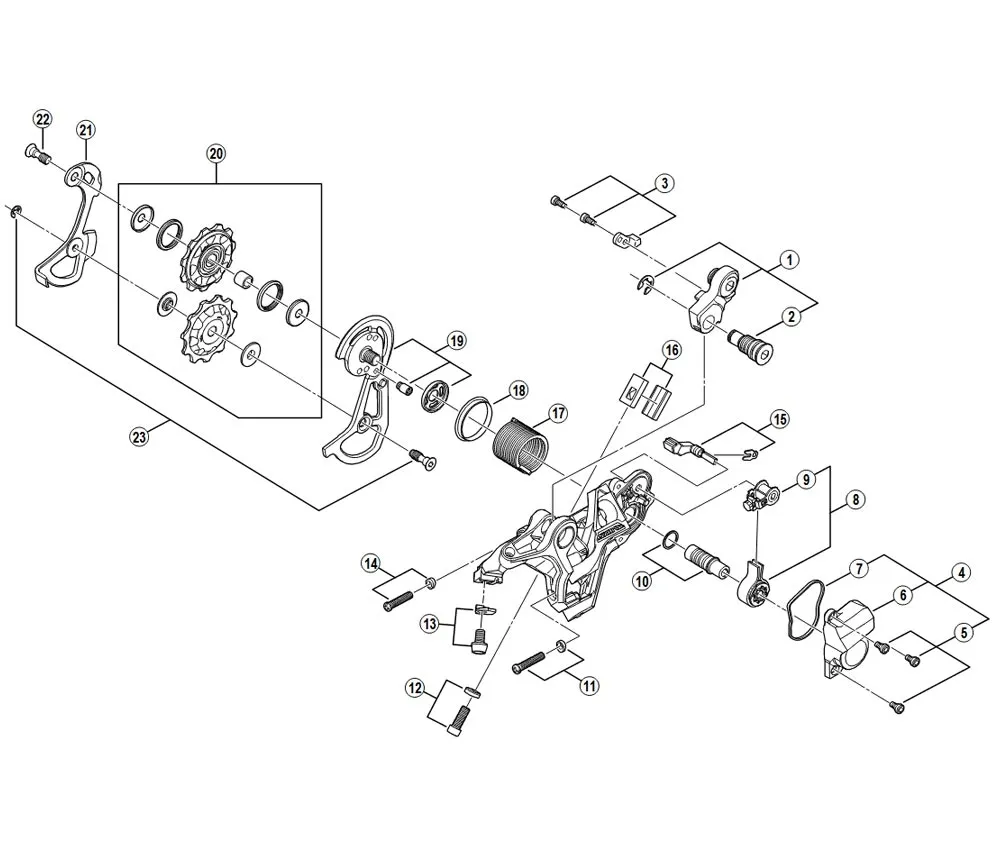

Shimano Saint RD-M820 10-speed rear derailleur spare parts:

• No. 1: Y5Y298010, Frame Mounting Kit
• No. 2: Y5Y239000, Screw for direct-mount rear derailleur hanger
• No. 3: Y5Y298030, Locking screws and plate for rear derailleur hanger
• No. 4: Y5Y298040, Housing cover, screws, sealing ring
• No. 5: Y5Y198070, screws for stabiliser cover (3 pieces)
• No. 6: Y5Y223000, housing cover
• No. 7: Y5Y219000, seal for housing cover
• No. 8: Y5Y198020, stabiliser unit with cam unit
• No. 9: Y5Y198120, cam unit
• No. 10: Y5Y198040, Shift shaft and O-ring
• No. 11: Y5Y298110, Adjusting screw and plate (1 piece)
• No. 12: Y5Y298120, Limit screw and plate 1 piece
• No. 13: Y5W798030, cable clamp screw and plate
• No. 14: Y5Y298130, adjustment screw and plate 1 piece
• No. 15: Y5Y298140, Shift lever assembly and plate
• No. 16: Y5Y298160, stopper 2 pieces
• No. 17: Y5XD19000, tension spring P
• No. 18: Y5XD15000, Sealing ring P for tension spring P
• No. 19: Y5Y298170, SS outer chain guide plate with stop pin and plate
• No. 20: Y5Y298230, set of sprockets for SS
• No. 21: Y5V508400, SS inner chain guide plate
• No. 22: Y5WJ21100, upper shift roller screw
• No. 23: Y5XC98100, lower shift roller screw and stop ring
• No. 24: Y0412080A, special grease for stabiliser

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
