Shimano XTR RD-M985 spare parts

All spare parts can be found in our shop under the item numbers listed below.

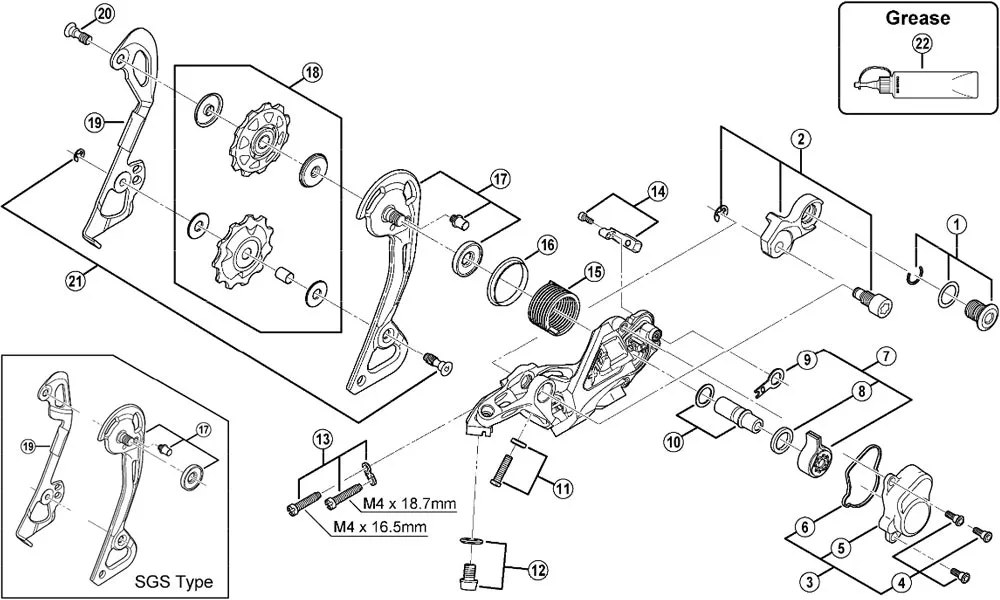

Shimano XTR RD-M985 rear derailleur spare parts:

• No. 1: Y5XC98010 – Complete axle for rear derailleur hanger
• No. 2: Y5XC98020 – Rear derailleur hanger, complete
• No. 3: Y5XD98010 – Housing cover, complete
• No. 4: Y5XD98020 – Screws for housing cover
• No. 5: Y5XD20000 - Housing cover
• No. 6: Y5XD21000 - Sealing ring for housing cover
• No. 7: Y5XD98030 – Stabiliser unit, complete
• No. 8: Y5XD38000 - Sealing ring for switch shaft
• No. 9: Y5XD35000 – Stabiliser for switch
• No. 10: Y5XD98050 – Switch shaft + O-ring
• No. 11: Y5XC98040 – Adjustment screw for tension spring
• No. 12: Y5XC98050 - Shift cable clamping screw + plate
• No. 13: Y5WJ98020 - Stop screws + plate
• No. 14: Y5XD98070 – Complete shift lever assembly
• No. 15: Y5XD19000 – Tension spring
• No. 16: Y5XD15000 – Sealing ring for tension spring
• No. 17: Y5XD98090 - GS outer chain guide plate, complete
• No. 17: Y5XD98100 – SGS outer chain guide plate, complete
• No. 18: Y5XC98110 - Set of shift rollers
• No. 19: Y5XC09000 – GS inner chain guide plate
• No. 19: Y5XC10000 - SGS inner chain guide plate
• No. 20: Y5WJ21000 - Upper sprocket roller bolt
• No. 21: Y5XC98100 - Lower sprocket bolt + stop ring
• No. 22: Y04120800 - Special grease for stabiliser
