Shimano Dura Ace and Ultegra Di2 0 spare part

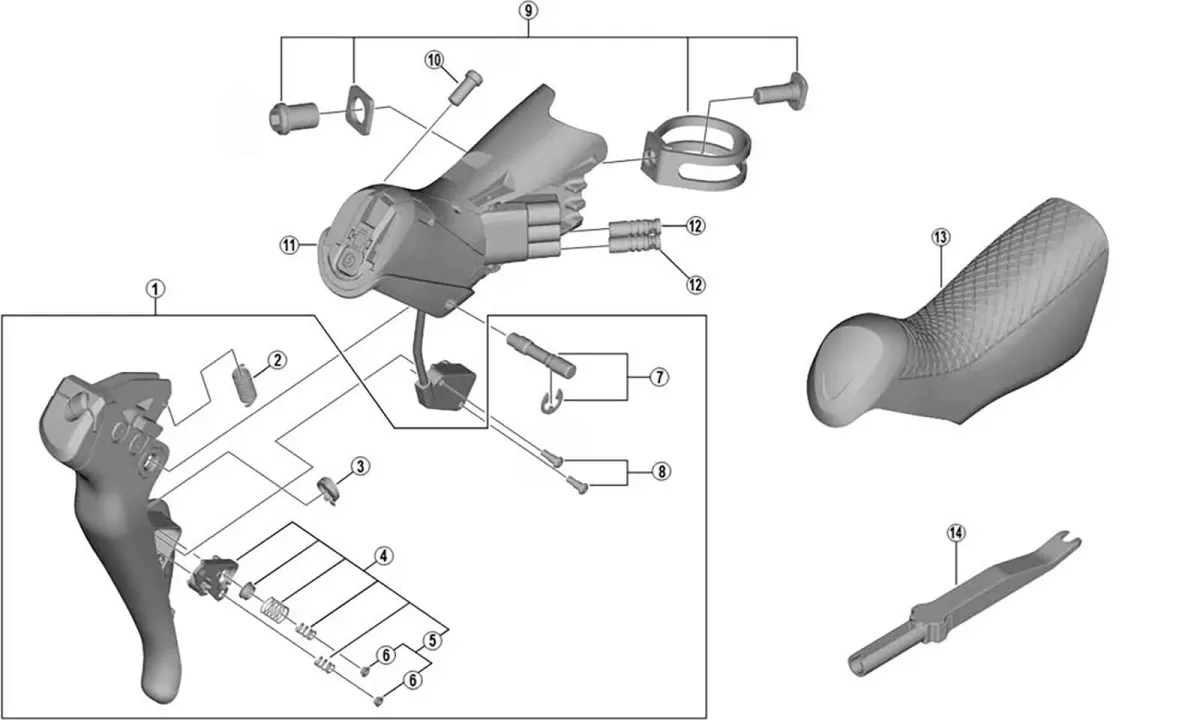

Included in delivery No. 5 of the exploded view, 2x shift lever buttons for the right or left side

Shimano Dura Ace Di2 ST-R9150 2x11-speed shift/brake lever spare parts:

• No. 1: Y0C898020 – Right-hand shift lever unit
• No. 1: Y0C798010 – Left-hand shift lever unit
• No. 2: Y0C800043 – Return spring
• No. 3: Y0C800009 - Axle cap
• No. 4: Y0C898090 - Right-hand button unit
• No. 4: Y0C798030 - Left button unit

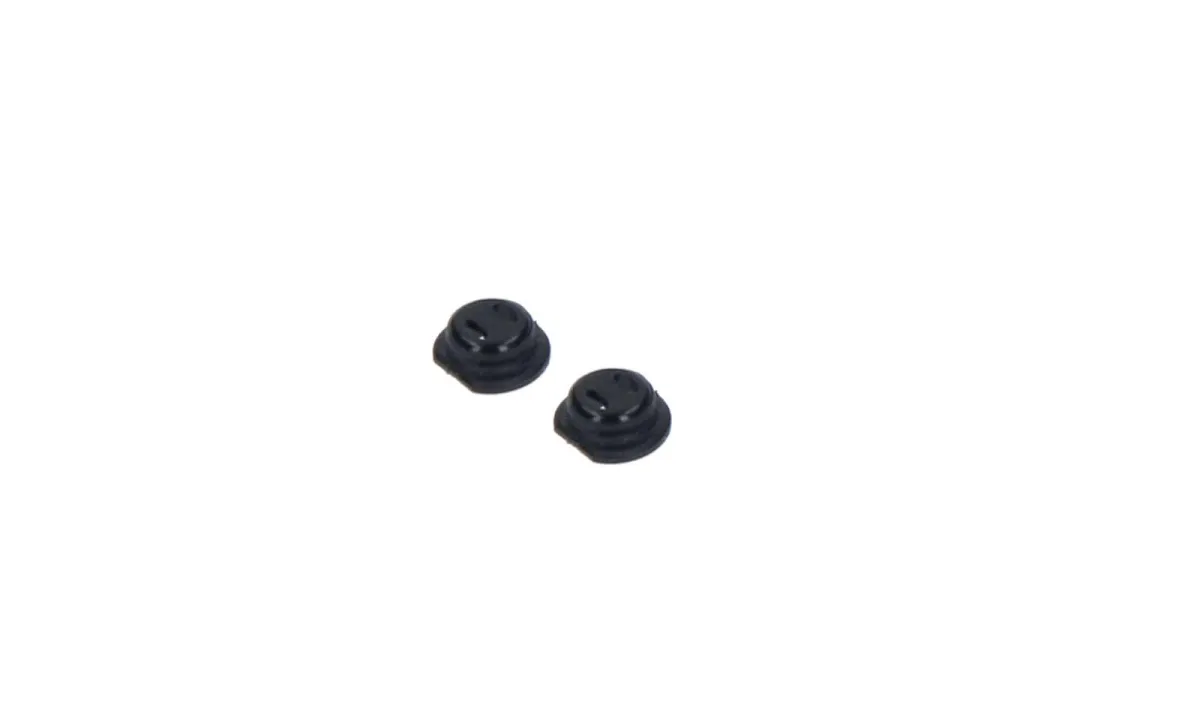

• No. 5: Y0C898040 - Gear lever buttons
• No. 6: Y0C800024 – Gear lever button
• No. 7: Y0C898050 – Complete lever shaft
• No. 8: Y0C898060 - Fixing screws
• No. 9: Y0C898070 - Clamp assembly
• No. 10: Y0C800012 – Handle adjustment screw
• No. 11: Y0C898080 – Complete lever bracket, right
• No. 11: Y0C798020 – Complete lever bracket, left
• No. 12: Y6VE15000 – E-Port dummy plug
• No. 13: Y0C898010 - Pair of rubber grips
• No. 14: Y6VE16000 - TL-EW02 connector tool

Shimano Ultegra Di2 ST-R8050 11-speed shift/brake lever spare parts:

• No. 1, Item No.: Y0E298020, Shift/brake lever without housing, right
• No. 1, Item No.: Y0E398010, Shift/brake lever without housing, left
• No. 2, Part No.: Y0C800043, Return spring for right or left shift/brake lever
• No. 3, Item No.: Y0E298030, Di2 button unit, right
• No. 3, Item No.: Y0E298020, Di2 button unit, left
• No. 4, Item No.: Y0C898040, Di2 shift lever button, 2 pieces, right or left
• No. 5, Item No.: Y0C800024, Di2 shift lever button, 1 piece, right or left
• No. 6, Item No.: Y0E298040, Lever axle for shift/brake lever, 1 piece, right or left
• No. 7, Item No.: Y0C898060, Mounting screws for shift unit, 1 piece, right or left
• No. 8, Item No.: Y0E298050, Handlebar clamp 28.8–24.2 mm, right or left
• No. 9, Item No.: Y0C800012, Gripper width adjustment screw, right or left
• No. 10, Item No.: Y0E298060, Shift lever housing, right
• No. 10, Item No.: Y0E298030, Shift lever housing, left
• No. 11, Item No.: Y6VE15000, Dummy plug for Di2 cable connection
• No. 12, Item No.: Y0E298010, Rubber grips, 2 pieces, right and left
• No. 13, Item No.: Y6VE16000, Tool for Di2 cable assembly
