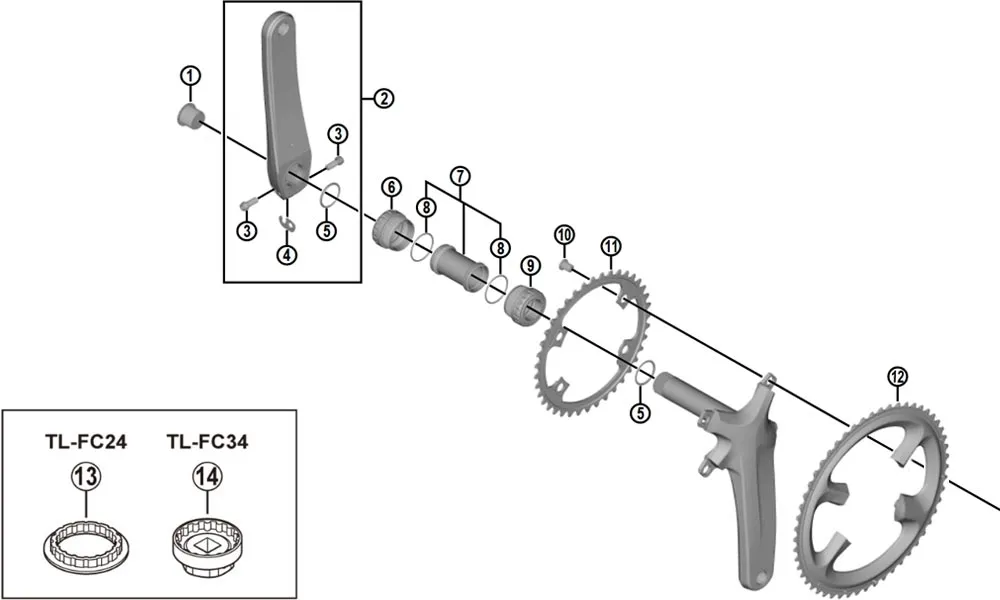

Shimano Dura-Ace FC-R9100 Crank Spare Parts

All spare parts can be found on our website under the item numbers listed below.

All Shimano Dura-Ace FC-R9100 2x11-speed crankset spare parts:

• No. 1: Y1N218000 – Crank mounting bolt
• No. 2: Y1VP98060 – Left crank arm 165 mm
• No. 2: Y1VP98070 – Left crank arm 167.5 mm
• No. 2: Y1VP98080 – Left crank arm 170 mm
• No. 2: Y1VP98090 - Left crank arm 172.5 mm
• No. 2: Y1VP98100 - Left crank arm 175 mm
• No. 2: Y1VP98110 - Left crank arm 177.5 mm
• No. 2: Y1VP98120 - Left crank arm 180 mm
• No. 3: Y1E512000 - Clamping screw
• No. 4: Y1GE98050 - Locking plate
• No. 5: Y1F316000 - Crank O-ring
• No. 6: Y1VR98010 - BB-R9100 BSA left cup
• No. 6: Y1VR98020 - BB-R9100 ITA left cup
• No. 7: Y1KY98130 - Bottom bracket shell
• No. 8: Y1TF21000 - O-ring for bottom bracket shell
• No. 9: Y1VR98030 - BB-R9100 BSA right cup
• No. 9: Y1VR98040 - BB-R9100 ITA right cup
• No. 10: Y1H598160 - Chainring bolts
• No. 11: Y1VP34000 - 34-tooth chainring, MS type
• No. 11: Y1VP36000 - 36-tooth chainring, MT type
• No. 11: Y1VP39000 - Chainring 39 teeth MW-type
• No. 11: Y1VP42000 - Chainring 42 teeth MX-type
• No. 12: Y1VP98010 - 50-tooth chainring, MS type
• No. 12: Y1VP98020 - 52-tooth chainring, MT type
• No. 12: Y1VP98030 - 53-tooth chainring, MW type
• No. 12: Y1VP98040 - 54-tooth chainring, MX type
• No. 12: Y1VP98050 - 55-tooth chainring, MX-type
• No. 13: Y13009240 - Adapter TL-FC24
• No. 14: Y13009250 - Bottom bracket tool TL-FC34
