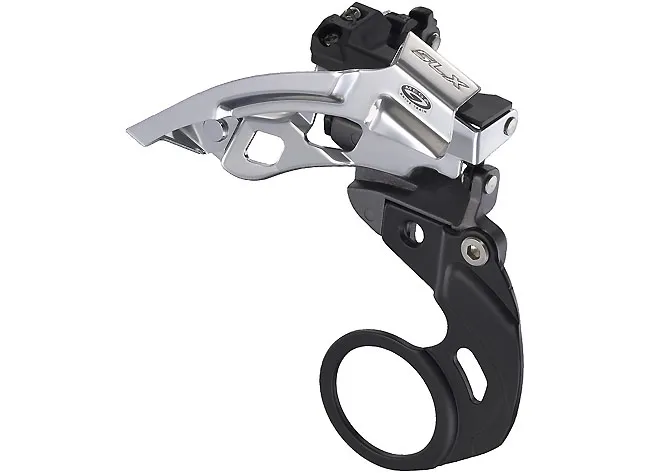

Shimano SLX FD-M-665-E front derailleur, 2x9-speed

The Shimano SLX E-Type front derailleur for 2-speed cranksets with bashguard. Specially shaped chainrings ensure the 2-speed gearing on cranksets with 22/36 teeth for perfect shifting. This front derailleur is only compatible with frames designed for this purpose. The derailleur is mounted with the bottom bracket and requires a threaded hole in the frame for support. Shimano’s proven derailleur technology is also used in the new SLX derailleurs. The wide support of the chainrings and the perfectly engineered shifting aids ensure fast shifting even under load.

Shimano SLX Front Derailleur FD-M665 Technical Specifications:

• Wide Link Design: The widened parallelogram, with its larger pivot base, reduces torsional stress and enables faster shifting and a longer service life.
• DUAL-Pull: The DUAL-Pull technology allows the shift cable to be routed along the top and down tubes.
• Compatible with: 9-speed
• Max. difference between large and small chainring: 22 teeth
• Min. difference between large and middle chainrings: 14 teeth
• Largest chainring: 36 teeth
• Cable routing: Dual-Pull version
• Chainline: 46.8 mm
• Chainstay angle: 65–71 degrees
• Clamp material: Aluminium, painted
• Outer parallelogram body: Steel, painted
• Inner parallelogram body: aluminium, painted
• Guide plates: Steel, chrome-plated
• Weight: 175 g
