Shimano XTR FDM 9025 front derailleur

The new Shimano XTR 11-speed components, designed for use ranging from cross-country to enduro. Available with a crankset featuring 1–3 chainrings and an 11-speed cassette with an 11–40 tooth range.

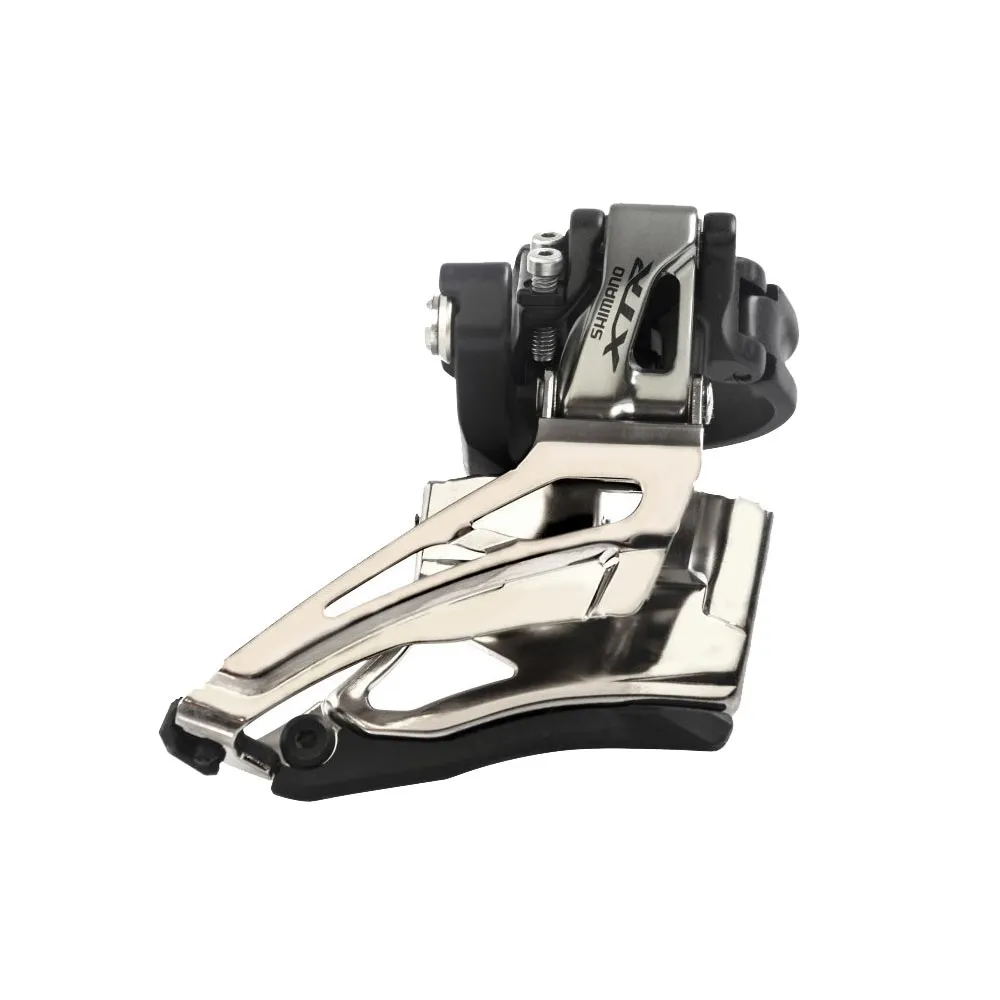

Shimano XTR FD-M9025 Down Swing Front Derailleur

Only the finest materials are used in the XTR 11-speed FD-M9025 front derailleurs; perfectly matched to the new 11-speed XTR components, the XTR front derailleurs offer outstanding shifting performance.

Shimano XTR 9025 Front Derailleur Compatibility:

The new Shimano 11-speed XTR front derailleur series is only compatible with the XTR 11-speed RDM9000 rear derailleurs and SLM9000 shift levers. The HG-900 chain is recommended. The 11-speed XTR cassettes are also compatible with 9-10-speed Shimano-compatible freehub bodies.

Shimano Down Swing derailleurs:

The Down Swing front derailleurs are mounted on the seat tube of the frame, approximately 14 cm above the centre of the bottom bracket. Due to their high lateral stiffness, we recommend these front derailleurs wherever they can be fitted

Shimano XTR FD-M9025 derailleur technology

• 2x11-speed
• Clamp 34.9 mm incl. seat tube adapters 31.8 and 28.6 mm
• High clamp mounting approx. 14 cm above the centre of the bottom bracket
• Top Pull, cable routing from above
• Down Swing technology
• Titanium hardware
• Aluminium parallelogram
• Stainless steel pivot pins
• Compatible with all Shimano 11-speed MTB shifters
• Mounting angle 66–69 degrees
• Largest sprocket to be shifted: 38 teeth
• Total capacity: 10 teeth
• Weight: FDM-9025: 144 grams

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | EU contact: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
