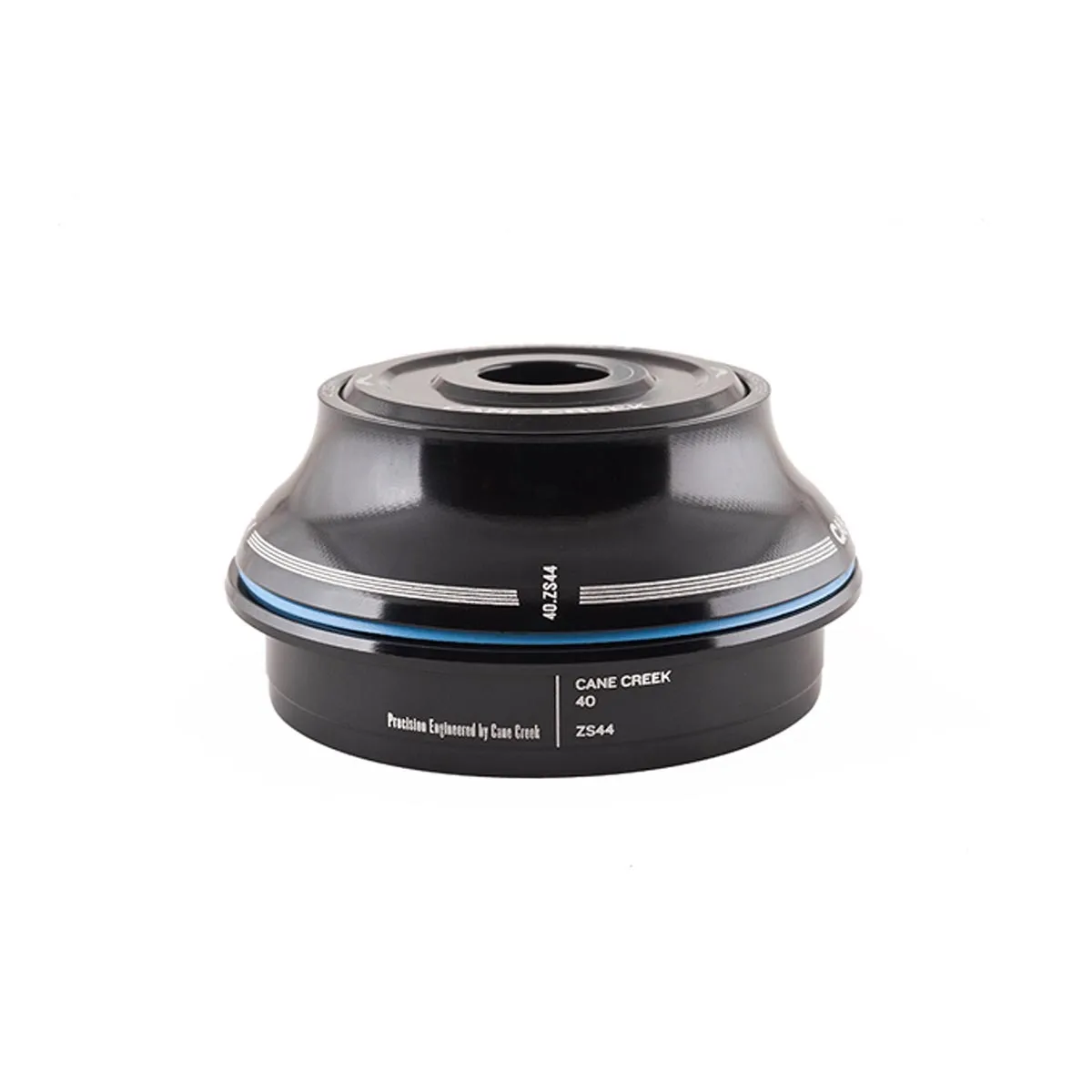

Cane Creek Forty Headset

The Cane Creek Forty ZS44 headset top tube is designed for frames with a clearance of 44 mm at the top of the head tube and forks with a steerer tube diameter of 1 1/8 inch / 28.6 mm at the top.

Cane Creek Forty headset technology and dimensions:

• Headset: 6061-T6 aluminium, CNC-machined
• Bearings: Cartridge / angular contact ball bearings, zinc-plated, multi-sealed
• Height: 15 mm with cap
• Headset cap height: 7 mm
• Contents: Cane Creek headset including cap and clamp for aluminium / steel forks

Cane Creek Forty:

The headset offering excellent value for money in terms of durability and quality. Based on the premium design of the 110 series, it includes all the features that characterise a reliable headset. Available in various heights, as upper or lower cups for any frame and fork steerer – precision-manufactured by Cane Creek in Fletcher, NC.

Cane Creek bearings:

Equipped with high-quality cartridge bearings, double-sealed with low-friction clip seals, which are designed to protect all components from dirt and corrosion. This significantly extends service life and reduces maintenance intervals to a minimum. All excellent prerequisites for a low-maintenance and reliable headset.

ZS44/28.6 top thread:

The ZS headset is pressed into the top of the head tube; the press-fit dimension in the frame is 44 mm and the fork steerer tube diameter is 1 1/8 inch / 28.6 mm at the top.

ZS/Zero Stack – semi-integrated headset:

Headset assemblies designated ZS / Zero Stack are also referred to as semi-integrated headsets. They require a frame designed for this purpose with an exact match for the bearing cups. Zero Stack refers to the minimal protrusion of the bearing cups from the head tube, whilst ZS44, for example, denotes the installation dimension, the outer diameter of the bearing cup and the inner diameter of the bearing cups within the frame. The headsets can usually be fitted without special tools; the frame simply needs to be cleanly pre-milled.
