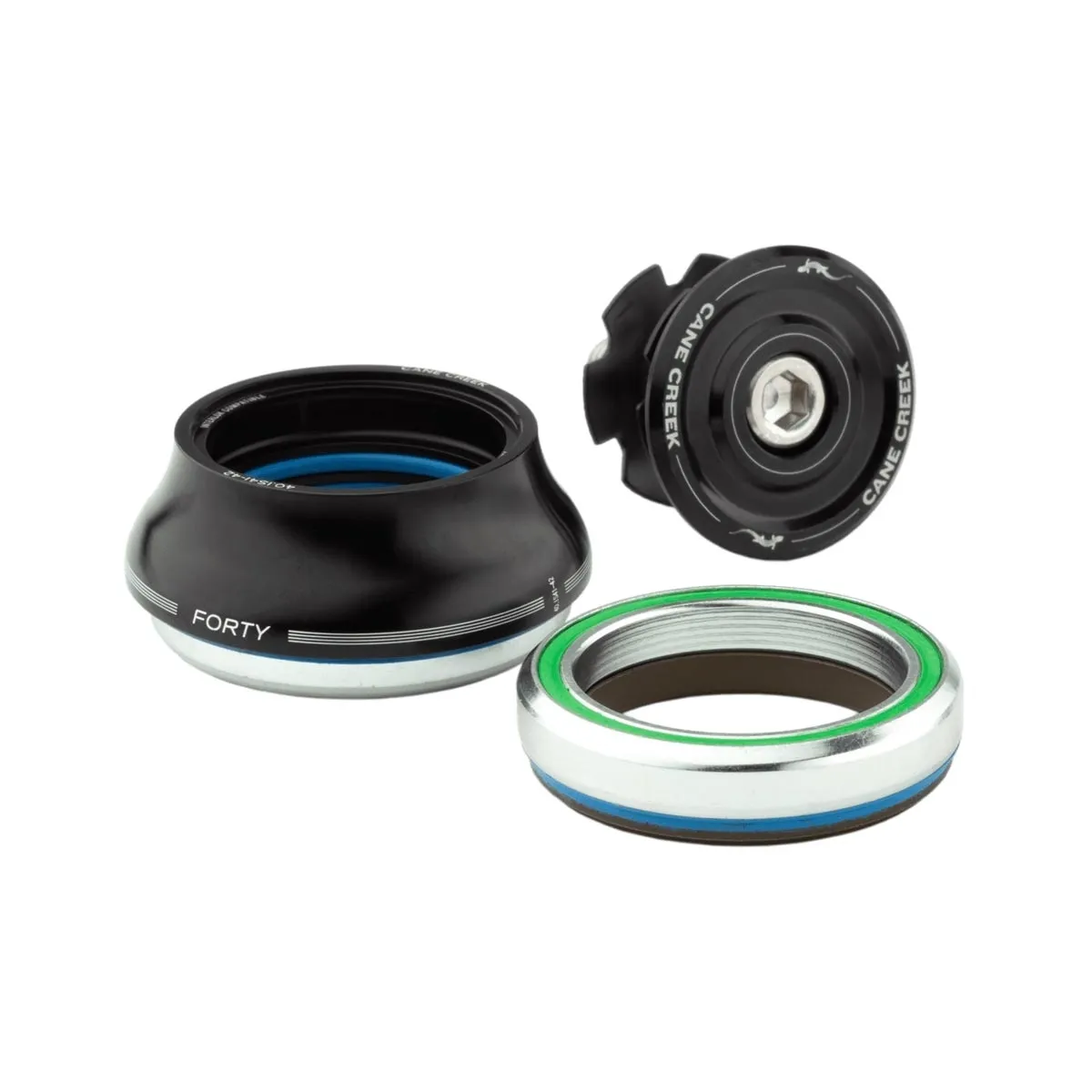

Cane Creek Forty Headset

The Cane Creek Forty IS42 headset upper and lower cups are designed for frames with an installation dimension of 42 mm at the top and bottom of the head tube, and forks with a steerer tube diameter of 1 1/8 inch / 28.6 mm at the top and 1 1/8 inch / 30 mm at the bottom.

Cane Creek Forty Headset Technology and Dimensions:

• Headset: 6061-T6 aluminium, CNC-machined
• Bearings: Cartridge / angular contact ball bearings, zinc-plated, multi-sealed
• Height at top: 15 mm with cap
• Bottom height: 6.5 mm
• Weight: 80 grams (manufacturer’s specification)
• Contents: Cane Creek headset including end cap and clamp for aluminium / steel forks

Cane Creek Forty:

The headset offering excellent value for money in terms of durability and quality. Based on the premium design of the 110 series, it includes all the features that characterise a reliable headset. Available in various heights, as top cups or bottom cups for every frame and fork steerer – precision-manufactured by Cane Creek in Fletcher, NC.

Cane Creek bearings:

Fitted with high-quality cartridge bearings, double-sealed with low-friction clip seals, which are designed to protect all components from dirt and corrosion. This significantly extends service life and reduces maintenance intervals to a minimum. All excellent prerequisites for a low-maintenance and reliable headset.

IS42/28.6 top thread:

The IS headset is inserted into the head tube at the top; the installation dimension in the frame is 42 mm and the fork steerer tube diameter is 1 1/8 inch / 28.6 mm at the top.

IS42/30 bottom thread:

The IS headset is inserted into the head tube at the bottom; the frame clearance is 42 mm and the fork steerer tube diameter is 1 1/8 inches at the bottom. The headset cone requires a 30 mm seat on the fork at the bottom.

IS/Integrated Standard – fully integrated headset:

Headset assemblies designated IS / Integrated Standard are also referred to as fully integrated headsets. These headsets require a frame designed for this purpose with a raceway for the bearings. Integrated Standard refers to the fact that the bearings are inserted into the head tube without bearing cups, and IS44, for example, refers to the installation dimension, outer diameter of the bearings and inner diameter of the bearings in the frame. These headsets do not require any special tools; the frame is already prepared for them.

Herstellerinformation: Cane Creek, 355 Cane Creek Road, 29732 Fletcher, North Carolina, United States, https://www.canecreek.com
